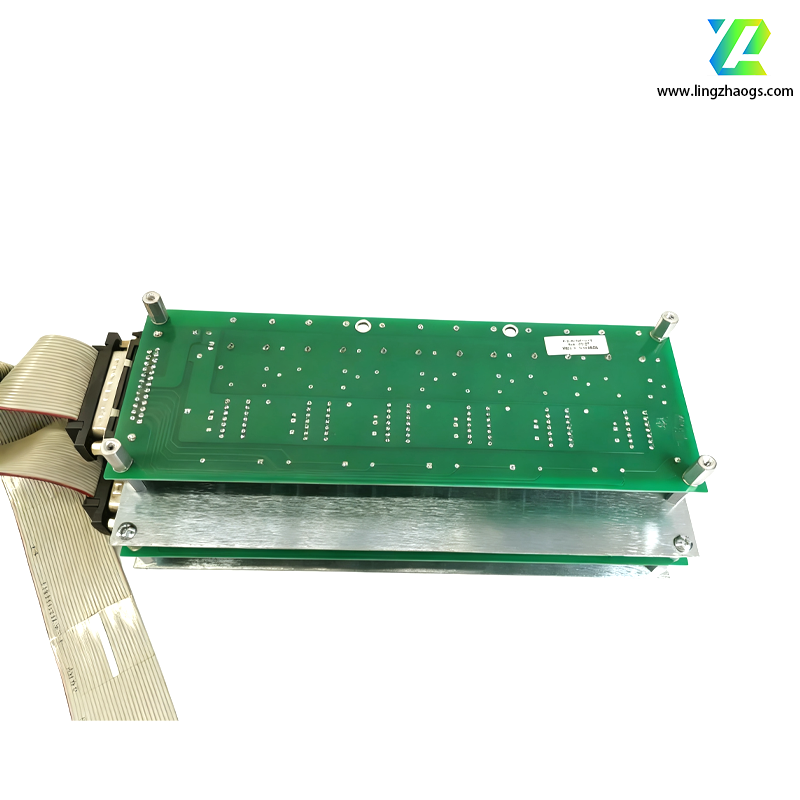

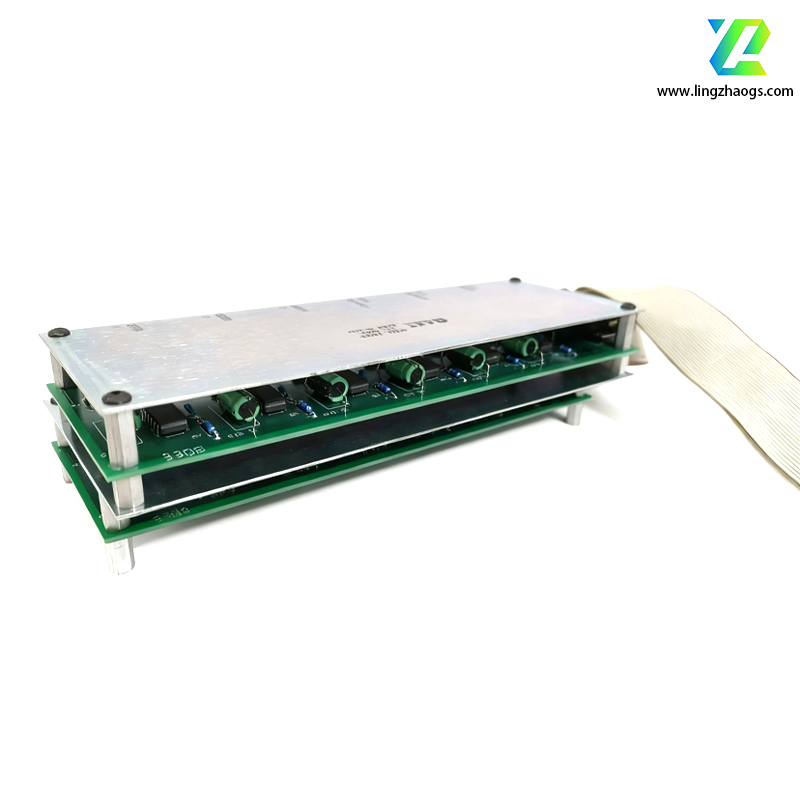

Product Overview

• Brand: Applied Materials (AMAT)
• Model: 0100-71141
• Type: Thermal Control (TC) Power Supply PCA (Printed Circuit Assembly)
• Industry: Semiconductor manufacturing, industrial automation
• Function: Provides regulated power to temperature control systems in high-precision equipment, ensuring stable thermal management during wafer processing.

Key Features

1. Power Supply Design
   • Dedicated Thermal Control: Specifically engineered to power TC input modules (e.g., thermocouple amplifiers, heater drivers) in semiconductor tools .
   • Precision Voltage Regulation: Maintains ±0.5% output stability to prevent thermal fluctuations in critical processes like chemical vapor deposition (CVD) or etching.
2. Electrical Specifications
   • Input Voltage: 24V DC (industry-standard for AMAT modules, inferred from similar products like 0100-00071 ).
   • Output Power: ~50W (estimated based on thermal control requirements in cleanroom environments).
   • Current Capacity: Up to 2A per channel (supports multiple temperature sensors/actuators).
3. Physical Attributes
   • Form Factor: Compact PCB assembly (dimensions: ~10 cm × 15 cm) optimized for space-constrained tool interiors.
   • Connectors: Features AMP Heavy-Mate® series terminals for secure power and signal connections (compatible with industry-standard wiring harnesses ).
   • Material: RoHS-compliant components with gold-plated traces for corrosion resistance in harsh cleanroom conditions.
4. Reliability
   • Industrial-Grade Construction: Resists vibration, EMI, and temperature extremes (-20°C to 85°C ).
   • Redundancy: Optional dual-input configuration for fail-safe operation in mission-critical systems.

Applications

• Semiconductor Manufacturing:
  • Thermal management in CVD, atomic layer deposition (ALD), and rapid thermal processing (RTP) chambers.
  • Control of wafer chuck temperatures during lithography or etching.
  • Monitoring and regulation of gas delivery system temperatures.
• Industrial Automation:
  • Precision temperature control in pharmaceutical or aerospace equipment.
  • Closed-loop feedback systems for heating/cooling stages in metrology tools.

Availability and Support

• Condition: Commonly available as refurbished or used through authorized distributors (e.g., Capitolare Technology, HTechPLC) .
• Warranty: Typically includes a 12-month warranty against defects in materials/workmanship (similar to AMAT 0100-71331 ).
• Documentation:
  • Technical schematics and pinout diagrams are restricted to authorized customers. For official datasheets, contact Applied Materials via their customer portal.
  • Third-party suppliers may provide limited functional guides upon request.

Similar AMAT Products

• 0100-71331: DC power distribution card (complementary in integrated systems).
• 0100-00011: Automation control module for process monitoring (different function but shared platform compatibility ).

Notes

1. Compatibility Verification:
   • Ensure the module matches the voltage and current requirements of your equipment’s temperature control subsystem.
   • Verify connector types (e.g., Heavy-Mate®) against existing wiring harnesses.
2. Installation Considerations:
   • Requires proper grounding and thermal isolation to prevent signal interference.
   • Follow AMAT’s safety guidelines for electrostatic discharge (ESD) protection during handling.
3. Revision-Specific Details:
   • Exact specifications (e.g., number of channels, communication protocols) may vary by module revision. Always reference the part number sticker on the PCB for precise details.
