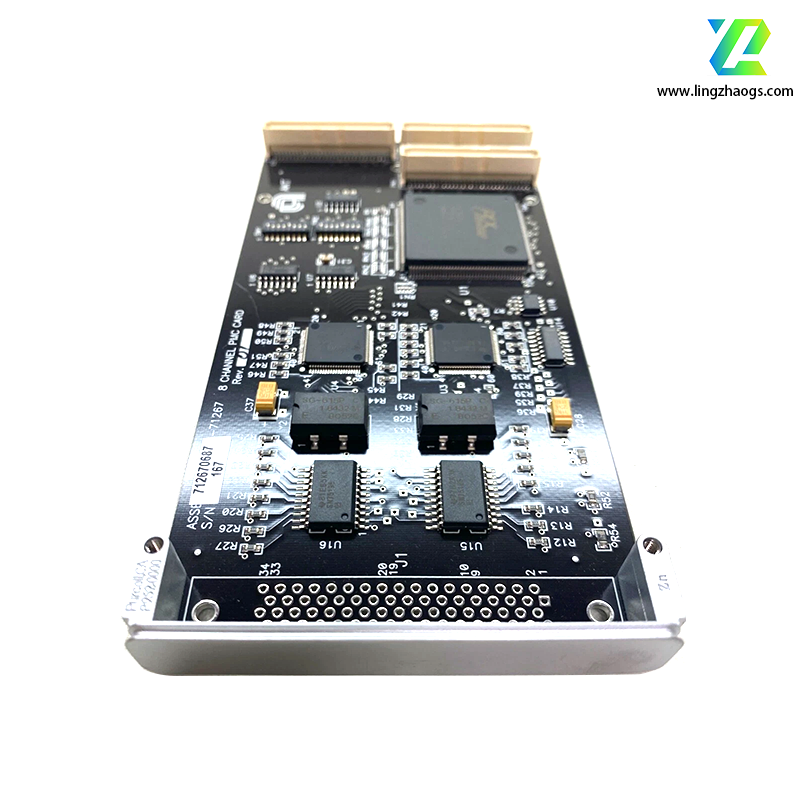

Product Overview

• Brand: Applied Materials (AMAT)
• Model: 0100-71267
• Type: Industrial Control Module / Field Control Processor
• Industry: Semiconductor manufacturing, industrial automation, and process control systems.
• Function: Acts as a central controller for real-time data processing, signal conditioning, and communication in high-precision equipment. Manages input/output (I/O) interfaces, logic control, and integration with sensors/actuators.

Key Specifications

1. Hardware Configuration
   • Processor: High-performance microcontroller with embedded logic for complex algorithms (exact model restricted per AMAT’s proprietary policies).
   • Memory: 16 MB SDRAM for data buffering and 32 MB flash memory for program storage .
   • Input Voltage:
     • 24V DC (redundant power supply support for fail-safe operation) .
     • Note: Some third-party sources mention 110–240V AC input with a 24V DC output, indicating potential variant-specific configurations. Verify compatibility with your system’s power requirements .
   • Power Consumption: ≤8.5W under full load .
2. Communication Interfaces
   • VMEbus Compatibility: Integrates with VME (VersaModule Eurocard) backplanes for high-speed data transfer in industrial systems .
   • Serial Ports: Supports RS-232/485 for connectivity with peripheral devices (e.g., sensors, HMIs) .
   • Ethernet: Standard Ethernet/IP and Modbus TCP/IP for networked control .
   • Digital I/O: Configurable inputs/outputs for discrete signals (e.g., relays, switches), with support for 8-channel PMC cards (e.g., PATA, serial ports) .
3. Physical Attributes
   • Form Factor: Compact PCB assembly (dimensions: ~120 mm × 100 mm × 50 mm) optimized for space-constrained tool interiors .
   • Connectors: AMP Heavy-Mate® terminals for secure power and signal connections .
   • Environmental Rating: Operates in harsh conditions (-20°C to 85°C, 5–95% humidity, non-condensing) .
4. Functionality
   • Signal Processing: Converts analog signals (e.g., voltage, current) to digital data and vice versa for precise control.
   • Logic Control: Executes programmable logic routines for sequence control, safety interlocks, and closed-loop feedback.
   • Protocol Support: Handles MODBUS, CANbus, and proprietary AMAT communication protocols .

Applications

• Semiconductor Manufacturing:
  • Process control in chemical vapor deposition (CVD), physical vapor deposition (PVD), and etch tools.
  • Wafer handling systems (e.g., robotic arm coordination, temperature regulation of chucks) .
  • Monitoring of gas flow, pressure, and vacuum levels in cleanroom environments.
• Industrial Automation:
  • Motor control in power plants, oil refineries, and automotive production lines.
  • Machine vision systems for defect detection and quality assurance.
  • Integration with SCADA (Supervisory Control and Data Acquisition) platforms .

Availability and Support

• Condition: Commonly available as refurbished or used through authorized distributors (e.g., Capitolare Technology, DCSABB) .
• Warranty: Typically includes a 12-month warranty against defects in materials/workmanship .
• Documentation:
  • Technical schematics and pinout diagrams are restricted to authorized customers. For official datasheets, contact Applied Materials via their customer portal.
  • Third-party suppliers may provide limited functional guides upon request.

Compatibility and Similar Products

• Compatible Systems: AMAT’s Endura, Centura, and other tool platforms requiring VMEbus-based control .
• Similar AMAT Models:
  • 0100-71229: VMEbus controller card (complementary for integrated systems) .
  • 0100-71141: Thermal control power supply (different function but shared 24V DC input) .

Installation and Maintenance

1. Setup Requirements:
   • VMEbus slot with proper grounding and EMI shielding.
   • Firmware updates via AMAT’s proprietary software tools.
2. Safety Guidelines:
   • Follow electrostatic discharge (ESD) protocols during handling.
   • Ensure compliance with SEMI S2-02.17 (safety guidelines for semiconductor equipment) .
3. Troubleshooting:
   • LED indicators for power status, communication activity, and fault detection.
   • Diagnostic tools available through AMAT’s service partners.

Notes

1. Revision-Specific Details:
   • Exact I/O channel counts, sampling rates, and communication protocols may vary by module revision. Always reference the part number sticker on the PCB for precise specs.
2. Input Voltage Clarification:
   • While 24V DC is standard, verify compatibility with your system’s power requirements before installation. Some variants may support 110–240V AC input with a 24V DC output .
3. Third-Party Resources:
   • Distributors like DCSABB and JLPLC offer functional descriptions and compatibility checks for refurbished units.
