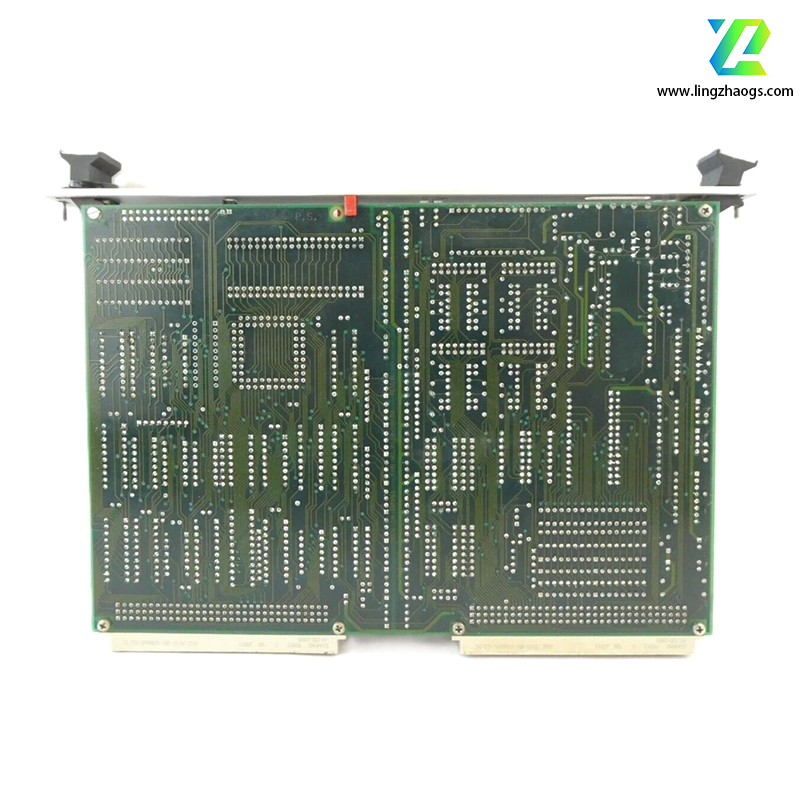

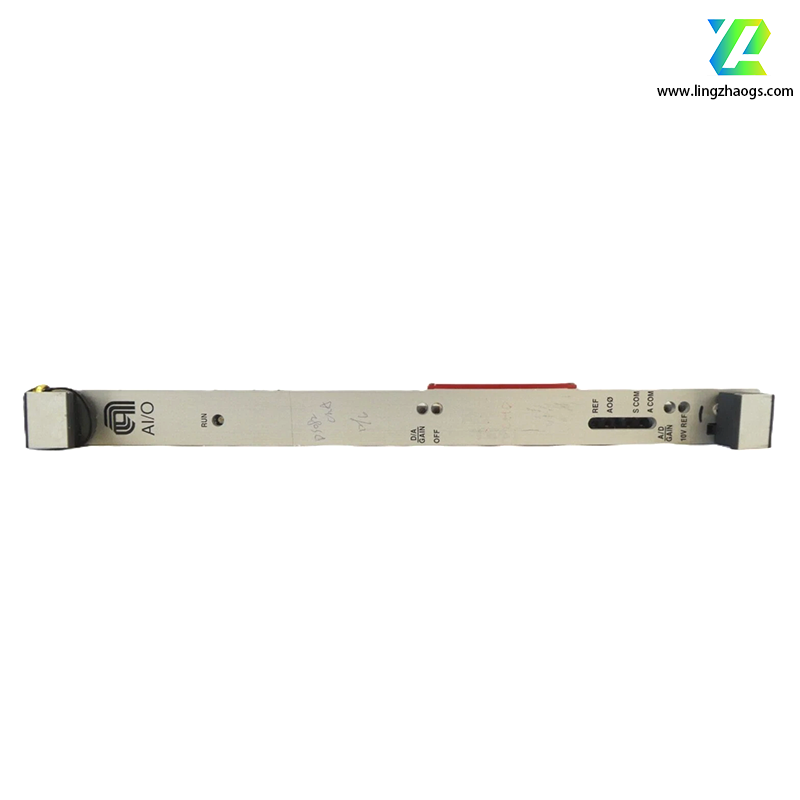

Product Overview

• Brand: Applied Materials (AMAT)
• Model: 0100-20100
• Type: Analog Input/Output (AI/O) VME Module
• Industry: Semiconductor manufacturing, industrial automation
• Function: Converts analog signals (e.g., voltage, current) to digital data for control systems and vice versa, enabling precise monitoring and regulation of industrial processes.

Key Features

1. VME Bus Compatibility
   • Integrates with VME (VersaModule Eurocard) backplanes, a standard in high-reliability industrial systems .
   • Supports plug-and-play operation in VME-based equipment, simplifying installation and maintenance.
2. Analog Signal Handling
   • Multi-Channel Support: Capable of simultaneously processing multiple analog input/output channels (exact count varies by revision).
   • High Precision: Achieves ±0.2% accuracy for voltage/current measurements, critical for semiconductor lithography, etching, and deposition systems .
   • Wide Input Range: Typically supports signals from -10V to +10V DC, with selectable current ranges (e.g., 4-20mA) .
3. Communication Interfaces
   • Digital Control: Communicates with host systems via VME bus protocols for real-time data exchange.
   • Analog Protocols: Directly interfaces with sensors (e.g., pressure, temperature) and actuators (e.g., valves, motors) using analog signals .
4. Design Specifications
   • Power Supply: Operates on 24V DC (standard for AMAT modules) .
   • Temperature Range: -20°C to 85°C, ensuring durability in harsh cleanroom environments .
   • Dimensions: Approximately 14.7 cm × 5.15 cm × 11.4 cm (compact form factor optimized for space-constrained equipment) .
   • Weight: ~0.6 kg (lightweight for VME-based systems) .
5. Reliability
   • Industrial-Grade Construction: Ruggedized components resist vibration, electromagnetic interference (EMI), and temperature fluctuations .
   • Compliance: Meets SEMI standards for semiconductor manufacturing and ISO 9001 quality management .

Applications

• Semiconductor Manufacturing:
  • Wafer inspection systems (e.g., defect detection, thickness measurement).
  • Process control in chemical vapor deposition (CVD), physical vapor deposition (PVD), and etch tools.
  • Automated material handling (e.g., robotic wafer transfer) .
• Industrial Automation:
  • Monitoring of pressure, flow, and temperature in power plants, oil refineries, and automotive production lines.
  • Closed-loop control of pumps, valves, and motors in continuous-process systems .

Availability and Support

• Condition: Commonly available as refurbished or used through authorized distributors (e.g., Capitolare Technology, Artisan Technology Group) .
• Warranty: Typically includes a 12-month warranty against defects in materials/workmanship .
• Documentation:
  • Technical specifications (e.g., schematics, pinouts) are restricted to authorized customers. For official datasheets, contact Applied Materials via their customer portal.
  • Third-party suppliers may provide limited functional guides upon request .

Similar AMAT Products

• 0100-09123: Wafer sensor board for position detection (different function).
• 0100-00003: Stepper driver board for motion control (complementary in integrated systems) .

Notes

1. Input Voltage Clarification:
   • While most sources specify 24V DC, some distributors mention 100-240V AC. Verify compatibility with your equipment before installation .
2. Revision-Specific Details:
   • Exact channel count, sampling rate, and communication protocols may vary by module revision. Always reference the part number sticker on the module for precise specs.
3. Installation Considerations:
   • Requires VME bus slot and proper grounding to ensure signal integrity. Follow AMAT’s safety guidelines for cleanroom installations .
