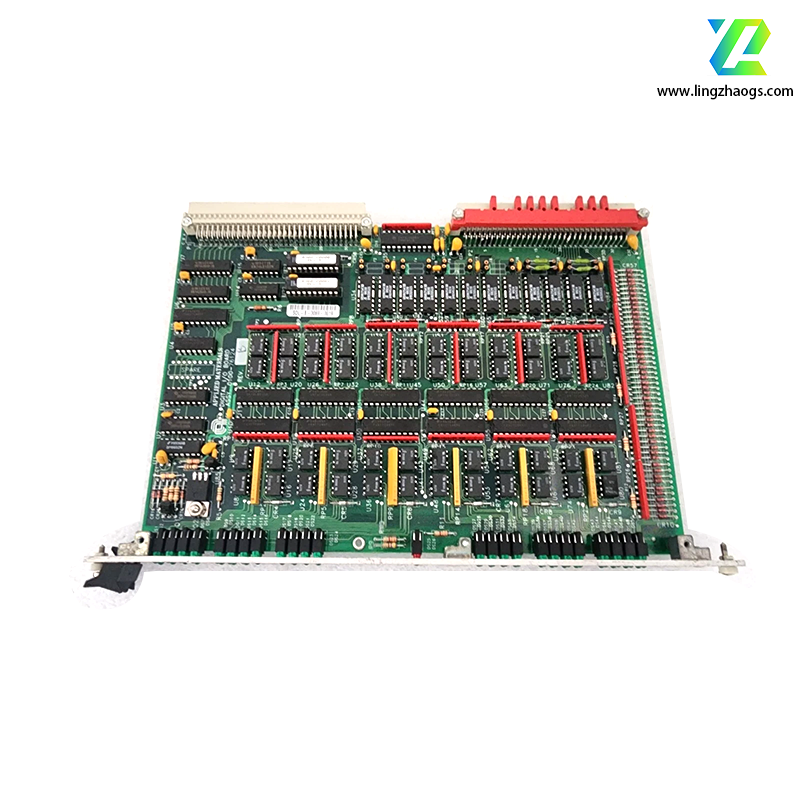

Product Overview

• Brand: Applied Materials (AMAT)
• Model: 0100-76124
• Type: Digital Input/Output (DI/O) PCB Assembly
• Industry: Semiconductor manufacturing, industrial automation, and process control systems.
• Function: Bridges control systems with external devices by managing digital signals (e.g., sensors, switches, relays, solenoids). Enables real-time monitoring and actuation in high-precision environments like cleanrooms.

Key Specifications

1. Electrical Parameters
   • Input Voltage: 24V DC (standard for AMAT industrial modules, with redundant power support for fail-safe operation) .
   • Output Voltage/Current: 12–24V DC with up to 500 mA per channel (compatible with low-power industrial devices) .
   • Power Consumption: ≤8.5W under full load .
2. Hardware Configuration
   • Memory: 16 MB SDRAM for data buffering and 32 MB flash memory for program storage .
   • I/O Channels: Multiple digital input/output channels (exact count varies by revision; typically 8–16 channels) .
   • Signal Compatibility: Supports TTL/CMOS logic levels and isolated circuits to reduce noise interference .
3. Physical & Environmental Attributes
   • Form Factor: Compact PCB assembly (dimensions: ~14.7 cm × 11.4 cm × 5.15 cm) optimized for space-constrained tool interiors .
   • Connectors: AMP Heavy-Mate® terminals for secure power and signal connections .
   • Environmental Rating:
     • Operating Temperature: 0°C to +60°C (per distributor specs) .
     • Note: Industrial control boards typically operate in -20°C to +85°C. Verify environmental limits with AMAT.
   • Shock/Vibration Resistance: Designed for harsh manufacturing environments .
4. Functionality
   • Digital Signal Handling: Converts discrete signals (e.g., ON/OFF) to digital data for control systems.
   • Protocol Support: Integrates with MODBUS, CANbus, and proprietary AMAT communication protocols .
   • Diagnostic Features: LED indicators for power status, channel activity, and fault detection (e.g., overcurrent) .

Applications

• Semiconductor Manufacturing:
  • Process control in chemical vapor deposition (CVD), physical vapor deposition (PVD), and etch tools.
  • Wafer handling systems (e.g., robotic arm coordination, temperature regulation).
  • Monitoring of gas flow, pressure, and vacuum levels in cleanroom environments.
• Industrial Automation:
  • Motor control in power plants, oil refineries, and automotive production lines.
  • Machine vision systems for defect detection and quality assurance.
  • Integration with SCADA (Supervisory Control and Data Acquisition) platforms.
• Other Industries:
  • Shipping (e.g., mooring winch control) and general machinery automation .

Availability and Support

• Condition: Commonly available as refurbished or used through authorized distributors (e.g., DCSABB, Saulelectrical) .
• Warranty: Typically includes a 12-month warranty against defects in materials/workmanship .
• Documentation:
  • Technical schematics and pinout diagrams are restricted to authorized customers. For official datasheets, contact Applied Materials via their customer portal .
  • Third-party suppliers may provide limited functional guides upon request.

Compatibility and Similar Products

• Compatible Systems: AMAT’s Endura, Centura, and other tool platforms requiring digital I/O control.
• Similar AMAT Models:
  • 0100-71229: VMEbus controller card (complementary for integrated systems).
  • 0100-71278: VMEbus controller with PMC card interface (supports modular expansions).

Installation and Maintenance

1. Setup Requirements:
   • VMEbus slot or backplane with proper grounding and EMI shielding.
   • Firmware updates via AMAT’s proprietary software tools.
2. Safety Guidelines:
   • Follow electrostatic discharge (ESD) protocols during handling.
   • Ensure compliance with SEMI S2-02.17 (safety guidelines for semiconductor equipment).
3. Troubleshooting:
   • Use LED indicators to diagnose power loss, channel failures, or communication errors.
   • Diagnostic tools available through AMAT’s service partners.

Critical Notes

1. Revision-Specific Details:
   • Exact I/O channel counts, communication protocols, and environmental ratings may vary by module revision. Always reference the part number sticker on the PCB for precise specs.
2. Input Voltage Clarification:
   • While 24V DC is standard, some variants may support 12V DC input. Verify compatibility with your system’s power requirements.
3. Environmental Ratings:
   • The specified temperature range (0°C to +60°C) may not align with industrial standards (-20°C to +85°C). Confirm environmental limits with AMAT.
4. Analog I/O Capabilities:
   • Some sources mention "Analog I/O VME Module" functionality, but this conflicts with majority data. Verify with AMAT for analog signal support.
