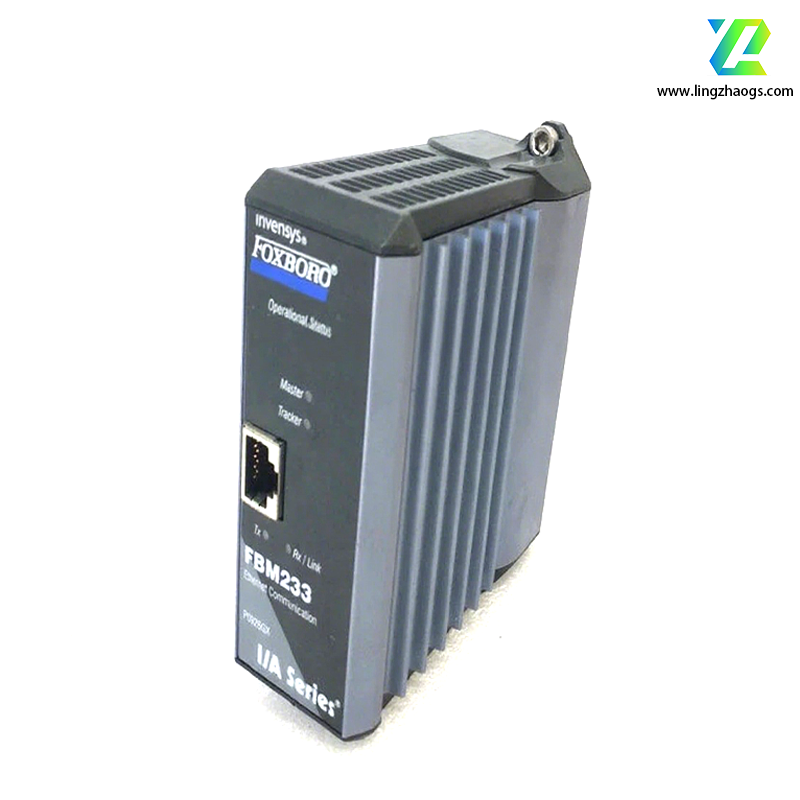

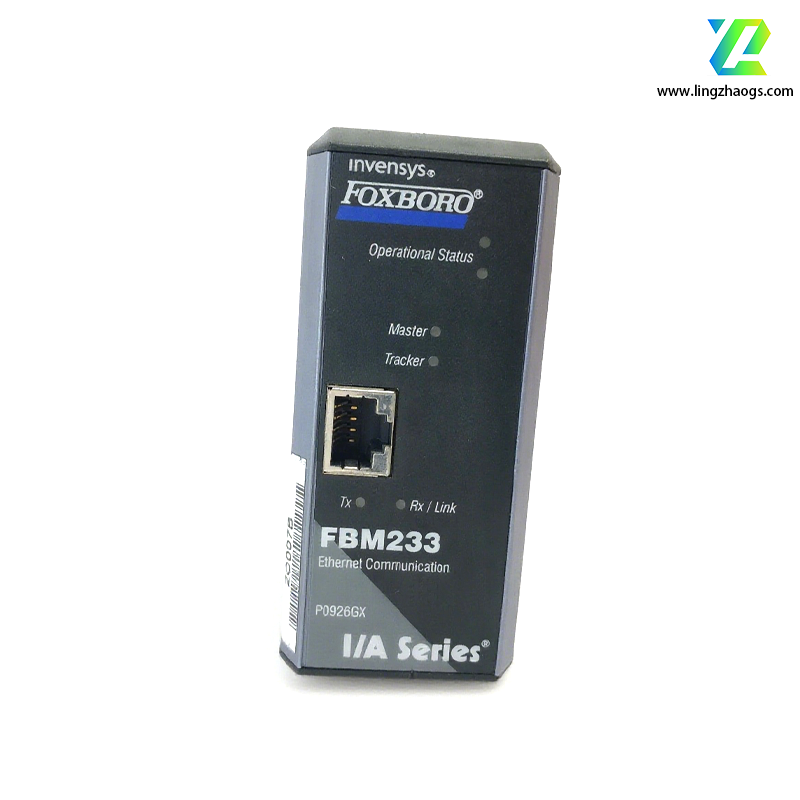

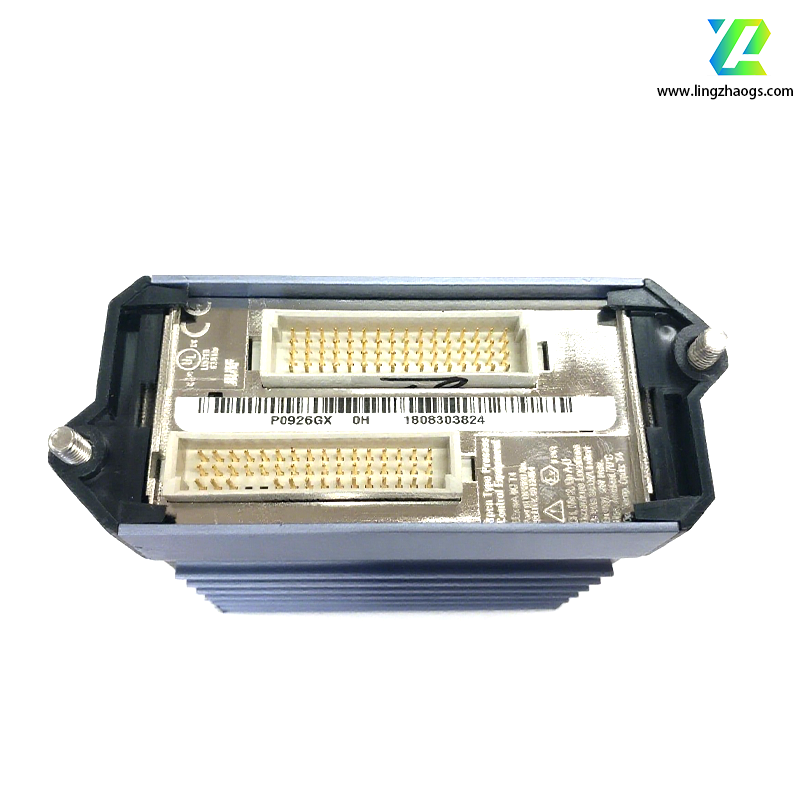

The Foxboro FBM233 P0926GX is a field device system integrator (FDSI) module applied in industrial automation systems. Here is the detailed information in English:
The FBM233 P0926GX is designed to provide an Ethernet interface between single - or dual - ported field I/O devices and the Foxboro Evo system or other relevant control systems. It enables seamless communication and integration between field devices and the control system, facilitating the connection and data exchange between various field devices and the DCS (Distributed Control System).
- Operating Voltage: 24 V DC (with a tolerance of +5% to -10%).
- Power Consumption: Maximum 7 W.
- Communication Interface: Features a single RJ - 45 connector, supporting 10/100 Mbps Ethernet communication.
- Data Transfer Rate: Can be set to 10 Mbps or 100 Mbps.
- Device Connection: Capable of communicating with up to 64 field devices.
- Data Connection: Supports up to 2000 DCI (Data Communication Interface) block connections.
- IP Address Setting: Can be set as a fixed IP address or use DHCP (Dynamic Host Configuration Protocol).
- Operating Temperature Range: - 20 °C to + 70 °C.
- Storage Temperature Range: - 40 °C to + 70 °C.
- Operating Humidity Range: 5% to 95% (non - condensing).
- Dimensions: Approximately 102 mm x 45 mm x 104 mm (4 in x 1.75 in x 4.11 in).
- Weight: About 284 g (10 oz).
- Redundant Ethernet Communication: Offers redundant 10 Mbps or 100 Mbps Ethernet network transmission to and from field devices, enhancing the reliability and availability of the system.
- Protocol Support: Supports protocols such as UDP/IP and TCP/IP, which can communicate with a variety of field devices and systems, and has good compatibility.
- Flexible Connectivity: It can be connected to Ethernet switches or hubs, and can connect up to 64 external devices, which is convenient for system expansion.
- Programmability: Supports programmable logic control, allowing users to customize configuration and programming according to specific needs.
- Diagnostic Function: Provides diagnostic information, which is helpful for troubleshooting and can shorten the maintenance time.
- Rugged Design: Designed to be suitable for installation in G3 - level (harsh) environments, it can operate stably in harsh industrial conditions.
- Process Automation: Widely used in industries such as chemical, petroleum, and natural gas. It can integrate sensors, actuators, and controllers in the process control system to monitor and control process parameters such as temperature, pressure, and flow.
- Manufacturing: Applied to manufacturing production lines, it can monitor and control the operating status of production equipment, switch signals, sensor data, etc., to realize automated production processes.
- Power Industry: In power generation facilities and power grids, it is used to monitor electrical parameters such as current, voltage, and frequency, and control related equipment such as generators and switchgear.
- Water Treatment: Water treatment plants can use it to monitor and control equipment such as valves, pumps, and water tanks in the water treatment process. It can also be used for precise pH/ORP measurement loops with its high - resolution inputs.
