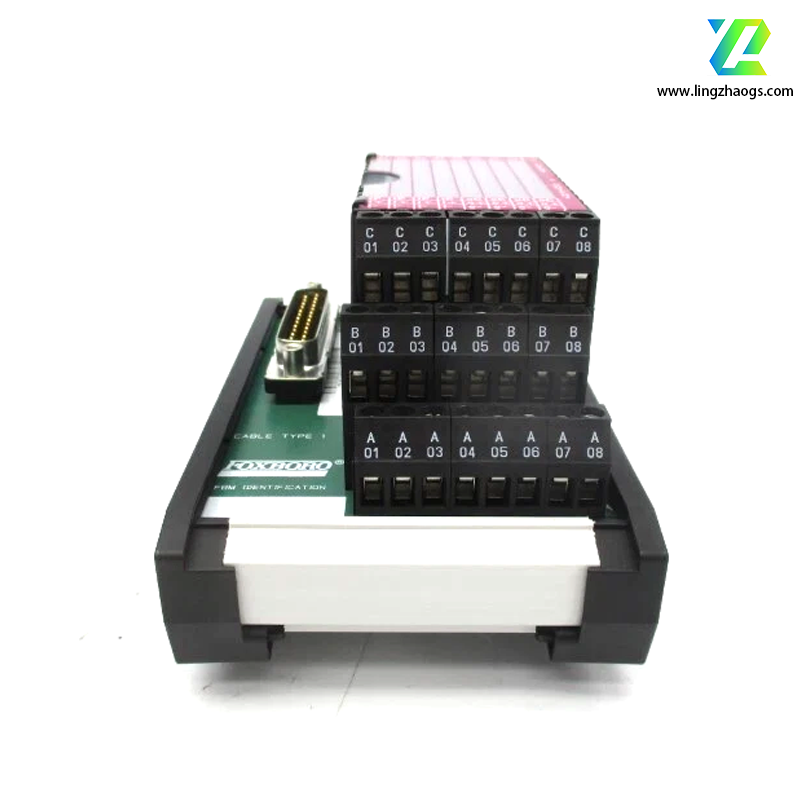

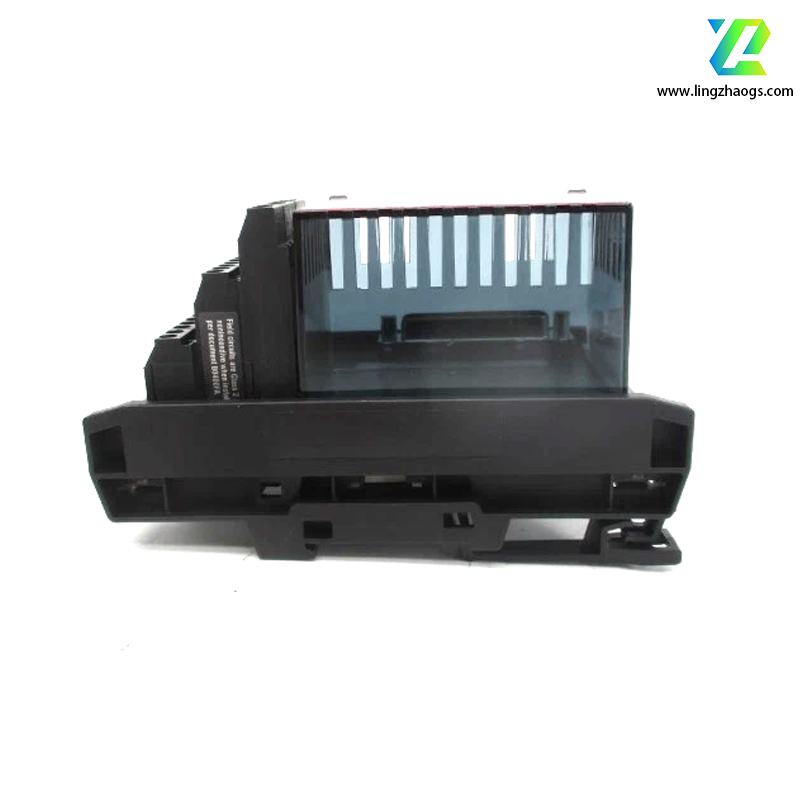

The Foxboro RH916ND is a discrete output interface module, which is of great significance in industrial automation control systems. The following is its detailed information in English:
The RH916ND is a product of Foxboro (Schneider Electric). It is an external - source discrete output interface module, mainly used for connecting field devices, controllers, and other equipment in industrial control systems, and realizing the transmission and control of discrete output signals.
- Product Number: FBM242
- Input Voltage Range (Redundant): 24 V DC (+5%, -10%)
- Power Consumption (Max.): 3 W at 24 V DC (max.)
- Heat Dissipation: 6.5 W at 24 V DC (max.) (1.5 A for all outputs)
- Calibration Requirements: Modules and terminal components do not require calibration.
- Temperature Range - Module: -20°C to +70°C (-4°F to +158°F)
- Temperature Range - PVC Terminal Components: -20°C to +50°C (-4°F to +122°F)
- Relative Humidity: 5% - 95% (non - condensing)
- Dimensions (L x W x H): 10.4 cm x 4.5 cm x 11.4 cm
- Weight: 0.284 kg
- Multi - Voltage Output Support: It has 16 - channel discrete output, supporting discrete output signals at voltages of 15 to 60 V DC, 120 V AC/125 V DC, and 240 V AC, which can meet the needs of different electrical equipment.
- Isolation Design: Each input and output is current - isolated, and when used with external excitation, it is group - isolated. This design can effectively prevent interference between channels and improve the stability and reliability of the system.
- Configurable Options: It can execute discrete I/O or ladder logic programs, with configurable options such as input filtering time, fail - safe configuration, failure, safe fallback, and continuous or instantaneous output, which provides flexibility for different industrial control applications.
- Rugged Design: The compact and rugged design is suitable for enclosures in G3 (harsh) environments, which can adapt to various harsh industrial field conditions, such as factories with high electromagnetic interference, high dust, and high humidity.
The Foxboro RH916ND is widely used in various industrial automation fields, such as chemical industry, power generation, manufacturing, etc. It can be used to control the start - stop, on - off and other states of industrial equipment, and is an important part of industrial control systems.
