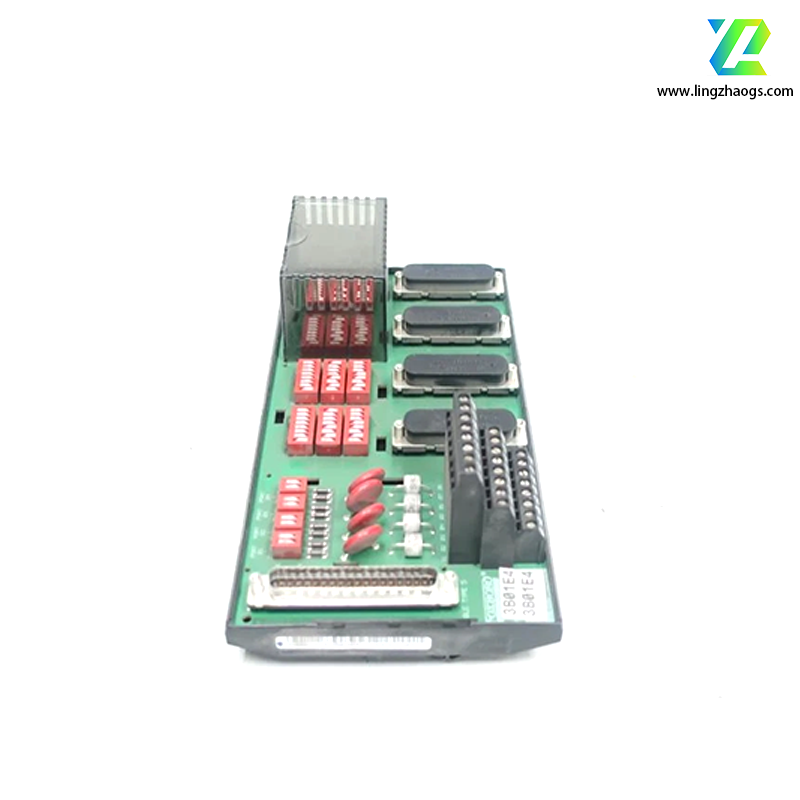

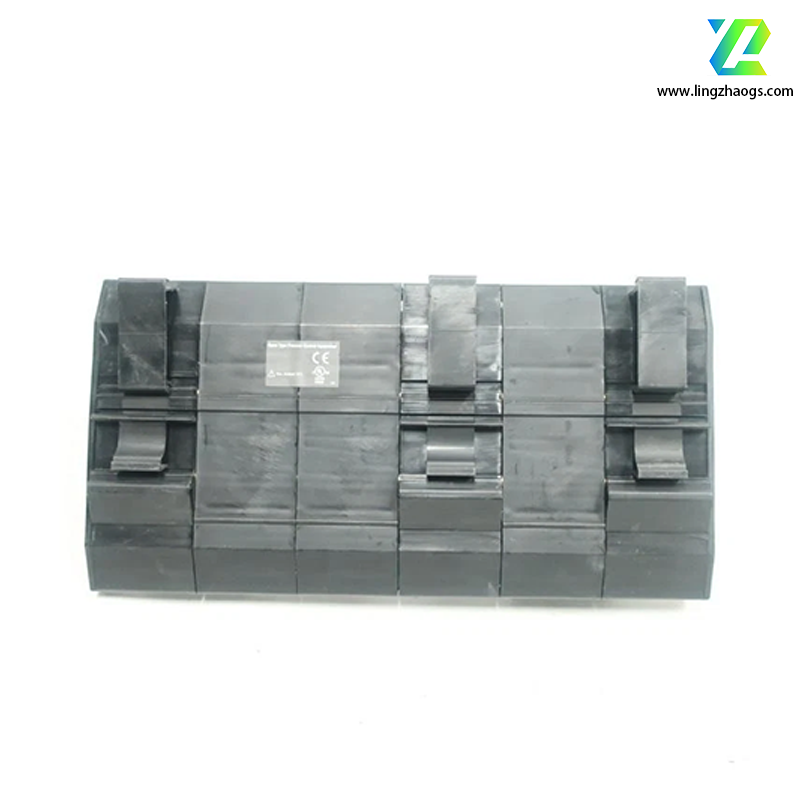

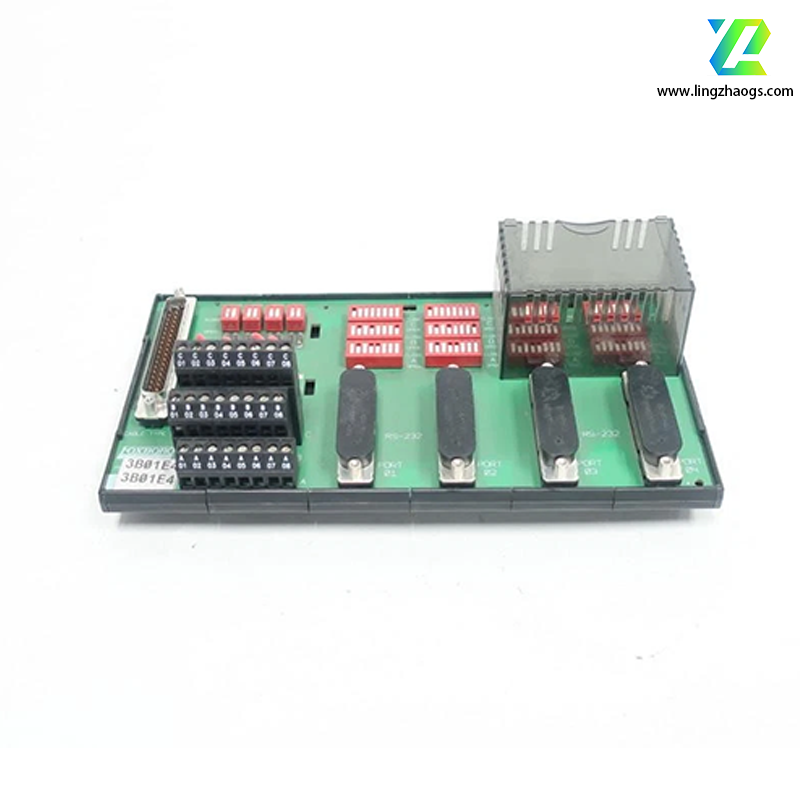

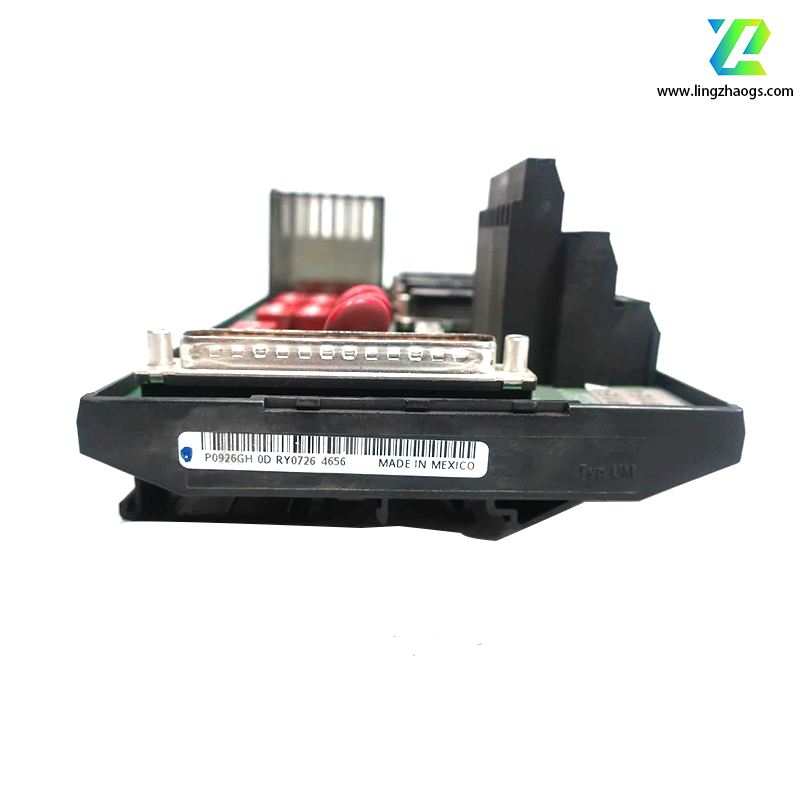

The Foxboro P0926GH is a fieldbus module designed for industrial automation systems, specifically as part of the Foxboro I/A Series Distributed Control System (DCS). It functions as a critical interface for signal processing and communication between field devices and the central control system, ensuring reliable data transmission in harsh industrial environments. Below is its detailed information in English:
The Foxboro P0926GH is engineered to facilitate seamless integration of field instruments with the Foxboro I/A Series DCS. It primarily handles signal conditioning, conversion, and communication, enabling real-time data exchange between sensors, actuators, and the control system. Its robust design ensures stability in demanding industrial settings, making it a key component in process monitoring and control applications.
- Function: Signal conditioning and interface module, supporting analog or discrete signal processing (configurable for standard industrial signal types).
- Input/Output Compatibility: Typically compatible with 4–20 mA analog signals and discrete (on/off) signals, adapting to common field device outputs such as transmitters, sensors, and actuators.
- Communication Protocol: Integrates with the Foxboro I/A Series fieldbus protocol, ensuring seamless data transfer with system controllers (e.g., FCP or FCM modules).
- Isolation: Galvanic isolation (up to 1500 V) between channels and from the system bus, minimizing electromagnetic interference (EMI) and enhancing signal integrity.
- Power Supply: Operates on 24 V DC (with support for redundant power configurations to maximize reliability in critical applications).
- Operating Temperature Range: -40 °C to +70 °C, suitable for extreme industrial environments like chemical plants, refineries, and power stations.
- Relative Humidity: 5%–95% (non-condensing), resistant to moisture in humid operational settings.
- Dimensions: Compact design, approximately 100 mm × 50 mm × 110 mm (varies slightly by configuration), fitting standard I/A Series racks for easy installation.
- Weight: Approximately 0.25–0.3 kg, lightweight for convenient handling and maintenance.
- Precise Signal Conditioning: Provides amplification, filtering, and linearization of input signals, ensuring accurate data acquisition even in noisy industrial environments.
- High Reliability: Constructed with industrial-grade components, it withstands vibration, temperature fluctuations, and electrical noise, ensuring long-term stable operation.
- Seamless DCS Integration: Optimized for the Foxboro I/A Series, enabling plug-and-play compatibility with system hardware and software, reducing setup time and configuration complexity.
- Diagnostic Capabilities: Equipped with front-panel LED indicators to display module status, channel activity, and fault alerts, allowing for quick troubleshooting and maintenance.
- Redundancy Support: Can be configured in redundant setups (when paired with compatible system components) to minimize downtime in mission-critical applications.
- Process Industries: Widely used in chemical, petrochemical, and pharmaceutical plants to connect flow meters, pressure transmitters, and temperature sensors, enabling precise process control.
- Power Generation: Integrates with instruments monitoring boiler performance, turbine parameters, and electrical systems in power plants, supporting safe and efficient energy production.
- Water & Wastewater Treatment: Connects to level sensors, pH analyzers, and pump controllers, facilitating automated monitoring and control of treatment processes.
- Manufacturing: Used in production lines to interface with proximity sensors, actuators, and quality control instruments, supporting automated manufacturing workflows.
The Foxboro P0926GH is valued for its robust performance, compatibility with the I/A Series, and ability to ensure accurate data transmission, making it a reliable choice for industrial control systems where operational efficiency and safety are paramount.
