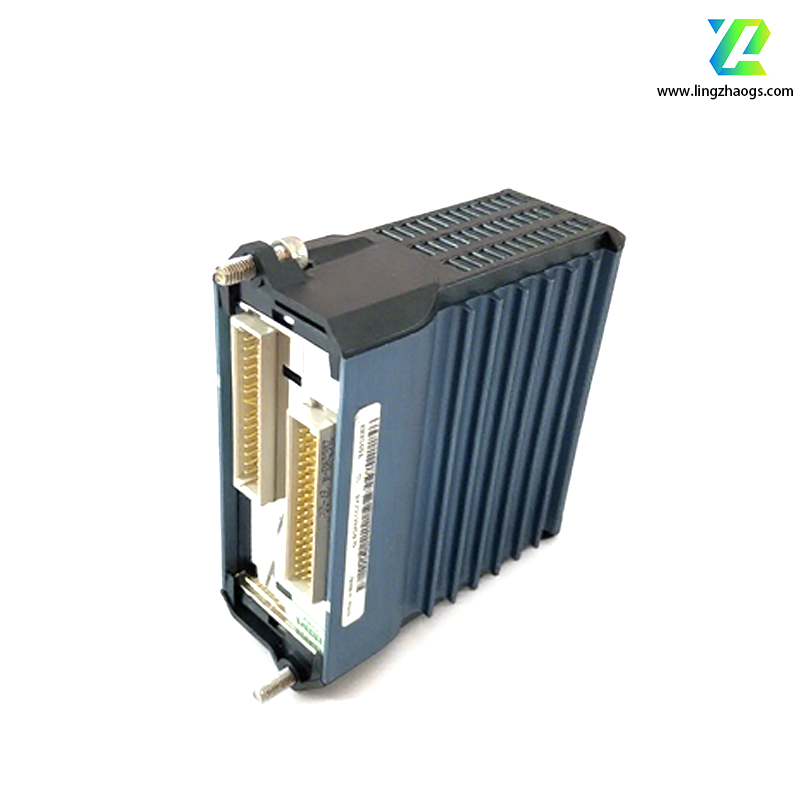

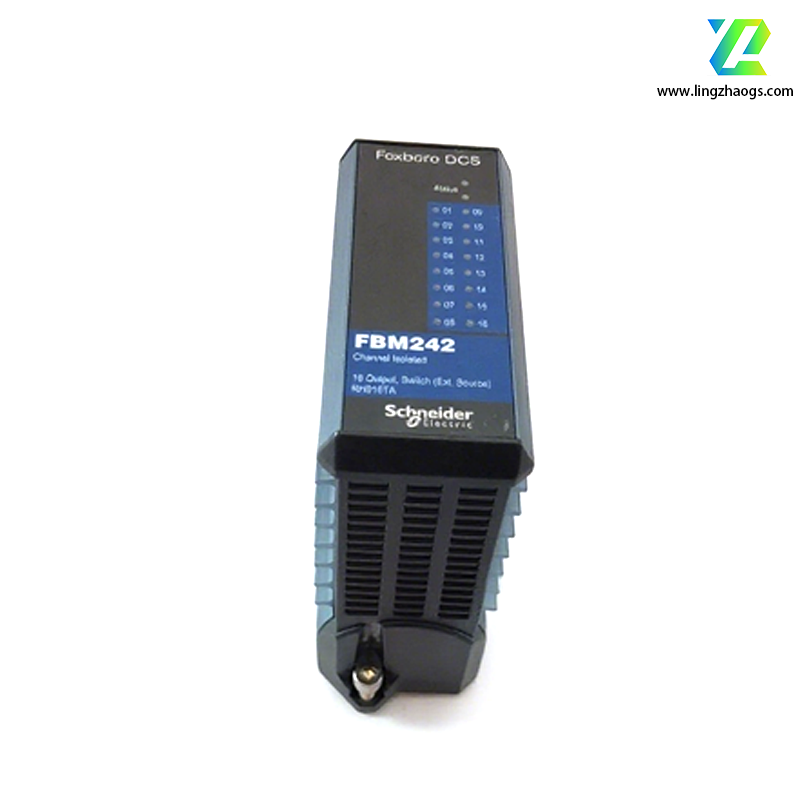

The Foxboro FBM242 is an externally sourced, discrete output interface module, which is designed for industrial process control systems. Here is the detailed information in English:
The FBM242 is a part of the Foxboro I/A series system. It can connect the electrical output signals of the control processor to field devices, execute digital I/O applications, support ladder logic, and provide fail-safe configuration options for outputs.
- Power Supply: Operates on a redundant 24 V DC power supply with a tolerance of +5% to -10%.
- Power Consumption: Maximum 3 W at 24 V DC.
- Heat Dissipation: Maximum 6.5 W at 24 V DC (when all outputs are 1.5 A).
- Operating Temperature Range: -20 °C to +70 °C.
- Relative Humidity Range: 5% to 95% (non-condensing).
- Dimensions: Approximately 10.4 cm x 4.5 cm x 11.4 cm.
- Weight: About 0.284 kg.
- Output Characteristics: It has 16 discrete output channels, with a rated current of up to 2 A at 60 V DC. It supports discrete output signals at voltages of 15 - 60 V DC, 120 V AC/125 V DC, and 240 V AC.
- Isolation Design: Each input and output is galvanically isolated, and group isolation is achieved when used with external excitation, which can effectively prevent interference between channels and ensure the stability and reliability of the system.

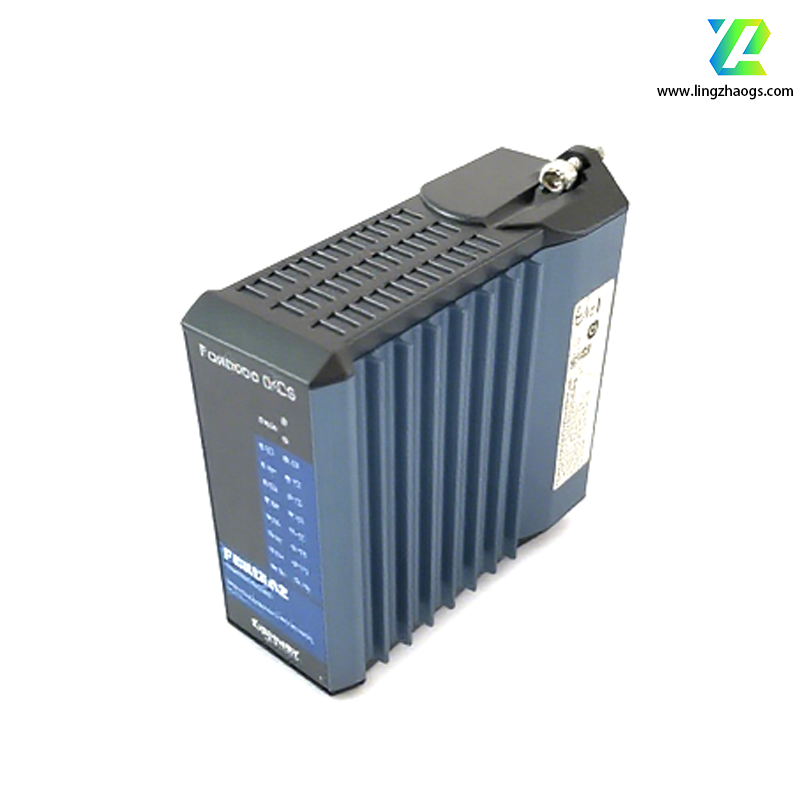

- Compact and Rugged Design: It has a compact design, which is smaller than the standard 200-series FBM. With a rugged ABS enclosure, it can provide physical protection for the circuit and is suitable for installation in G3 - level (harsh) environments as specified by the ISA standard S71.04.
- Programmability: Executes discrete I/O or ladder logic programs, and has configurable options such as input filter time, fail-safe configuration, fail-safe fallback, and sustained or momentary outputs, which can meet different application requirements.

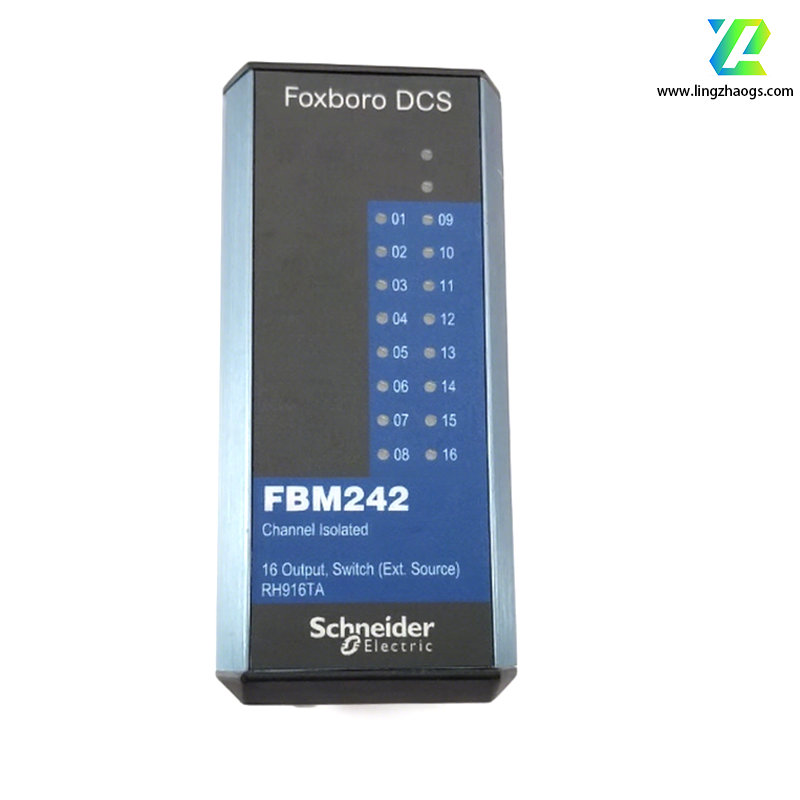

- Diagnostic Function: The front end of the module is equipped with LEDs that can visually display the operating status of the module and the discrete status of each output point, which is convenient for users to monitor and troubleshoot.

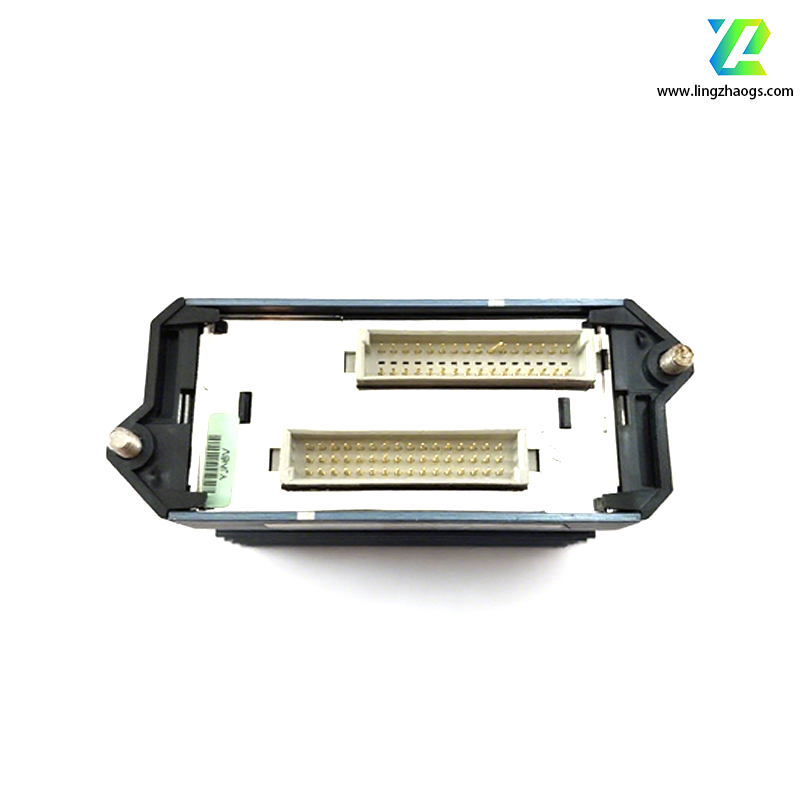

- Easy to Replace: It is installed on the Compact 200 series backplane mounted on a DIN rail or rack. When disassembling or replacing the module, there is no need to remove the field device terminal cables, power supply or communication cables, which is very convenient for maintenance.
- Process Automation: Widely used in industries such as chemical, petroleum, and natural gas, it can connect sensors, actuators, and controllers in the process control system to monitor and control process parameters such as temperature, pressure, and flow.
- Manufacturing: Applied to manufacturing production lines, it can monitor and control the operating status of production equipment, switch signals, sensor data, etc., to realize automated production processes.
- Power Industry: In power generation facilities and power grids, it can be used to control related equipment such as generators and switchgear.
