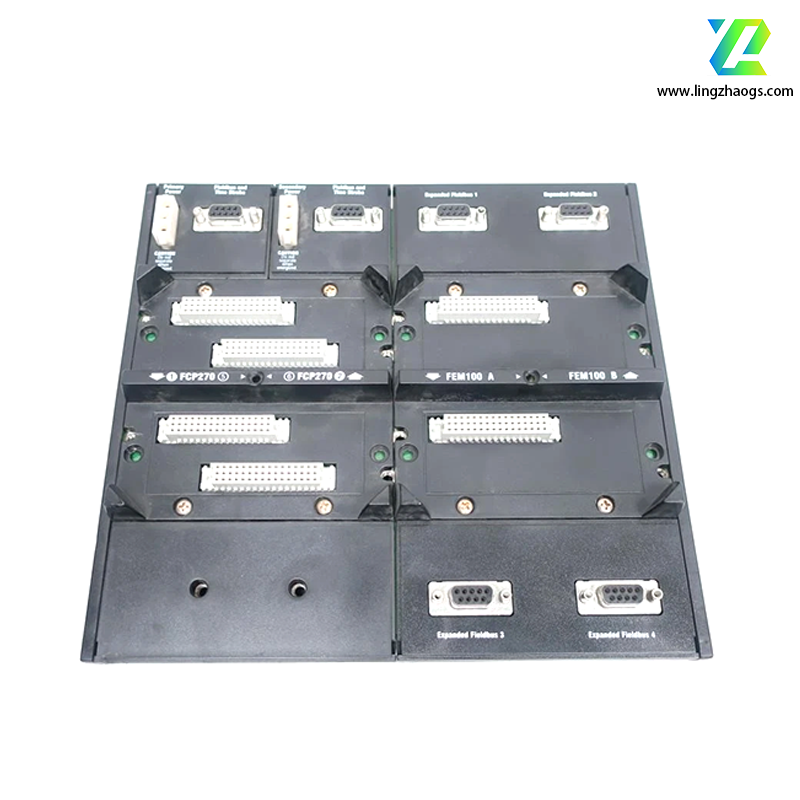

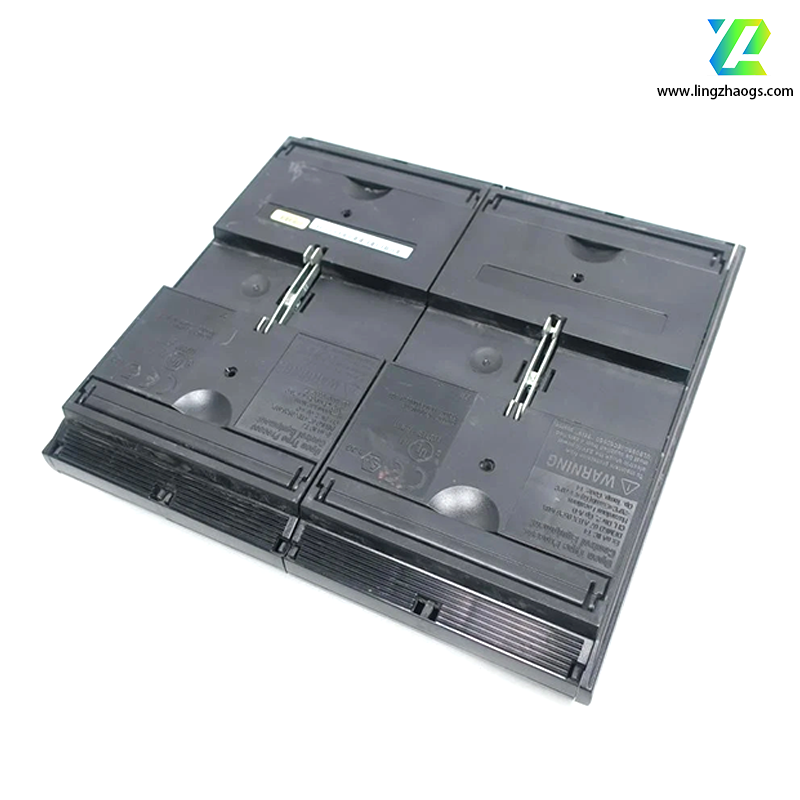

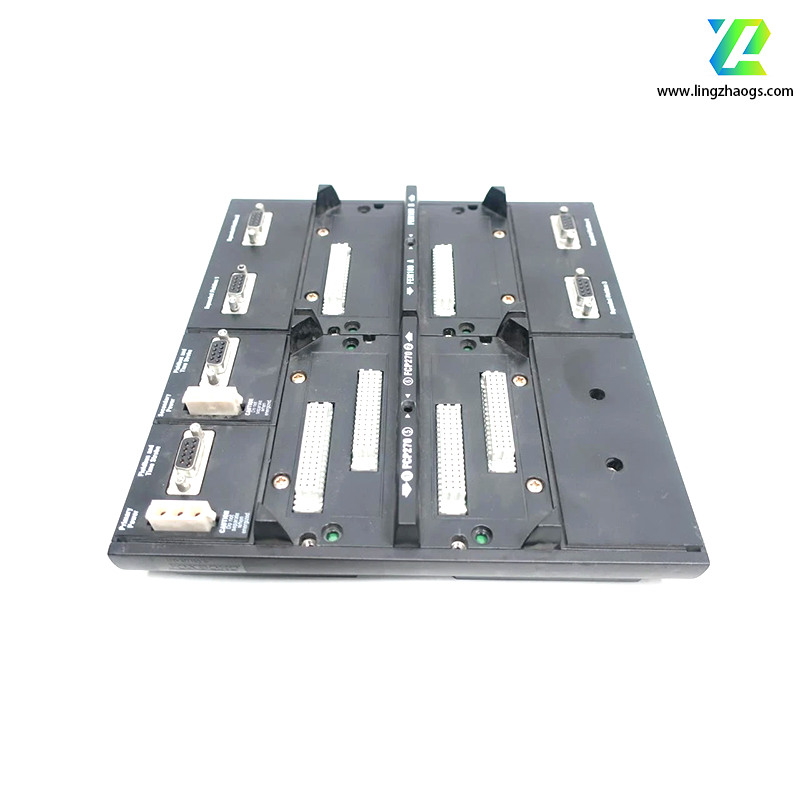

The Foxboro P0973CN is an expansion backplane designed for use in the Foxboro I/A Series Distributed Control System (DCS). It serves as a crucial component for facilitating communication and expansion within the system. Here is its detailed information in English:
The Foxboro P0973CN is engineered to provide a flexible and reliable platform for integrating various modules within the I/A Series DCS. It acts as a connection hub, enabling seamless data transfer and communication between different components such as field control processors, field device controllers, and fieldbus modules. Its modular design and multiple - slot configuration make it easy to expand and customize the control system according to specific industrial application requirements.
- Structural Design: It features a modular design, which allows for easy installation and configuration with other modules.
- Slot Configuration: Provides multiple slots, typically including 4 user - accessible slots and 2 system - dedicated slots. This enables the simultaneous accommodation of several expansion modules, such as field control processors (FCPs), field device controllers (FDCs), field communication modules (FCMs), and fieldbus isolator/filter modules (FBIs), enhancing the system's capabilities and scalability.
- Compatibility: Compatible with various Foxboro I/A Series modules, including Field Control Processor 280 (FCP 280, both fault - tolerant and non - fault - tolerant), Field Device Controller 280 (FDC 280, both fault - tolerant and non - fault - tolerant), Field Control Processor 270 (FCP 270, both fault - tolerant and non - fault - tolerant), Field Communications Modules (FCM 100 et and FCM 100 e) and other FCMs, Fieldbus Isolator/Filter modules (FBI 200/FBI 100), Standard Fieldbus Modules (FBMs), and 100 series FBMs.
- Mounting Options: Can be mounted in three basic configurations, namely horizontal DIN rail mount, vertical DIN rail mount, and horizontal or vertical DIN rail mount (with the baseplate remaining in a horizontal orientation), offering flexibility in installation based on the actual space and layout of the control cabinet.
- Power Supply: Supports primary and secondary 24 V DC power connections, which can improve the reliability of the power supply and ensure stable operation of the module even in the event of a power - related issue with one of the power sources.
- Dimensions and Weight: Approximately 215.9 mm × 234.95 mm × 44.45 mm (8.50 x 9.25 x 1.75 inches) in size and weighs about 0.73 kg (1.60 lbs), which is relatively compact and lightweight, making it convenient for installation, handling, and maintenance.
- Modular Design: The modular structure simplifies the process of system expansion and maintenance. Different functional modules can be easily inserted or replaced as needed, reducing the complexity of system upgrades and repairs.
- High Compatibility: It is designed to work seamlessly within the Foxboro I/A Series ecosystem, ensuring that it can integrate well with a wide range of existing system components without the need for complex custom - made interfaces or additional conversion devices.
- Reliable Communication: Facilitates stable and efficient data communication between various modules, ensuring real - time data exchange and accurate control in industrial processes. The backplane's design minimizes signal interference and distortion, guaranteeing the integrity of the transmitted data.
- Easy Installation: With its standard DIN - rail - mountable design, it can be quickly and easily installed in the control cabinet, saving installation time and effort. The clear marking and positioning of slots also make it convenient for operators to install and connect different modules.
- Process Industries: Widely used in chemical, petrochemical, and pharmaceutical plants. It can be used to connect various field - level instruments such as flow meters, pressure transmitters, temperature sensors, and actuators to the central control system, enabling precise monitoring and control of production processes.
- Power Generation: Applied in power plants to integrate instruments for monitoring boiler performance, turbine parameters, and electrical systems. It helps in realizing the automation of power generation processes, improving the safety and efficiency of power production.
- Water and Wastewater Treatment: In water treatment plants and wastewater treatment facilities, it connects to level sensors, pH analyzers, flow controllers, and other devices, supporting the automated monitoring and control of water treatment processes to ensure the quality of treated water.
