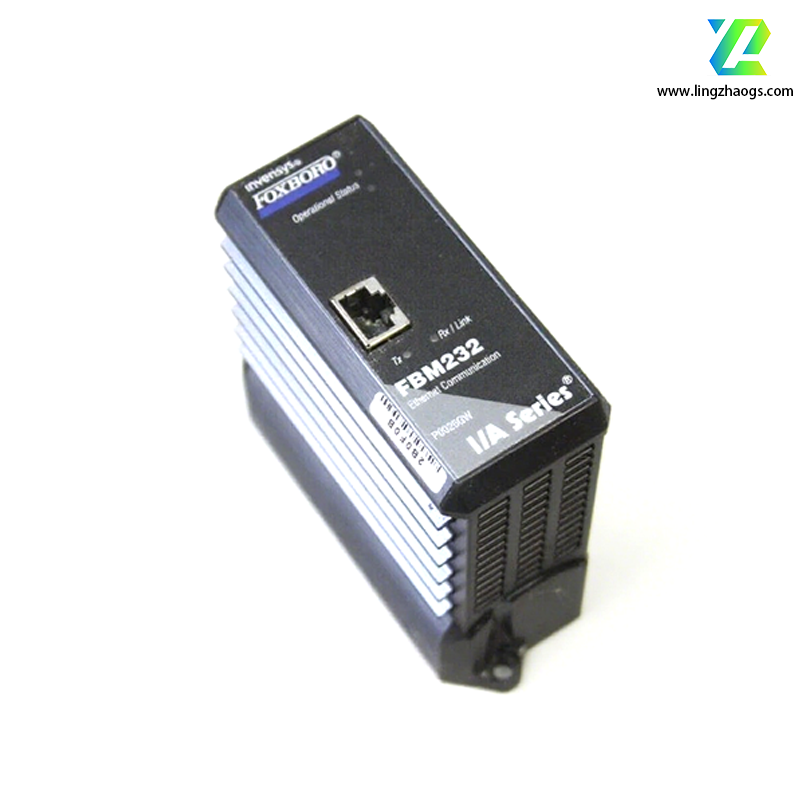

The Foxboro FBM232 is a field device system integrator (FDSI) module applied in industrial automation systems. Here is the detailed information in English:
The FBM232 field device system integrator (FDSI) module is designed to bridge the gap between single - ported field input/output (I/O) devices and the Foxboro DCS. This module facilitates communication through a single Ethernet interface, supporting both 10 Mbps and 100 Mbps copper Ethernet networks. It is capable of connecting to Ethernet switches or hubs to interact with one or up to 64 external devices.
- Ethernet Interface: 10/100 Mbps.
- Communication Protocol: Supports Modbus TCP, and can also utilize UDP/IP or TCP/IP for data exchange.
- Data Transfer Rate: Up to 100 Mbps.
- Device Connectivity: Can connect to up to 64 field devices.
- DCI Block Connections: Supports up to 2000 DCI (Data Communication Interface) block connections.
- Power Supply: Operates on a redundant 24 V DC power supply with a tolerance of +5% to -10%.
- Power Consumption: Maximum 7 W.
- Operating Temperature Range: -40 °C to +70 °C.
- Dimensions: Approximately 14.7 cm x 5.15 cm x 11.4 cm.
- Weight: About 284 g.
- High - speed Ethernet Connectivity: Provides 10/100 Mbps Ethernet interface, which can ensure efficient data transfer and meet the requirements of real - time data transmission in industrial control systems.
- Protocol Flexibility: The I/O software driver can be downloaded from a library of supported protocols, enabling it to adapt to different field device standards and facilitating communication with a variety of field devices.
- Seamless Integration: Integrates data from field devices into the Foxboro DCS control database via Ethernet connection, which can realize the centralized monitoring and control of industrial processes.
- Rugged Design: Suitable for installation in G3 - level (harsh) environments, with high reliability and stability, and can operate stably in harsh industrial environments.
- Redundancy and Reliability: Communicates with its associated modules (such as FCM 100 ET, FCM 100 E, FCP 280, or FCP 270) via a redundant 2 Mbps module fieldbus, enhancing system reliability.
- Process Automation: It can integrate sensors, actuators, and controllers in process control systems, and is widely used in industries such as chemical, petroleum, and natural gas to monitor and control process parameters such as temperature, pressure, and flow.
- Manufacturing: Used in manufacturing production lines to monitor and control the operating status of production equipment, switch signals, sensor data, etc., to realize automated production processes.
- Power Generation: In power generation facilities, it is used to monitor and control power generation processes, such as the safety - critical boiler temperature monitoring relying on its SIL 2 certification.
- Water Treatment: Water treatment plants can leverage its high - resolution inputs for precise pH/ORP measurement loops, and monitor and control equipment such as valves, pumps, and water tanks in the water treatment process.
