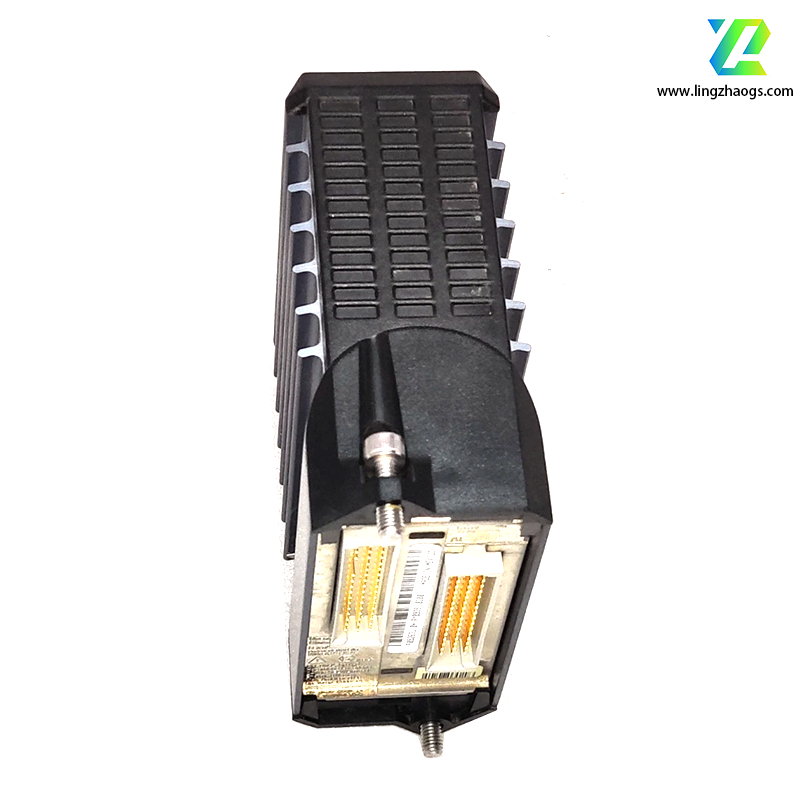

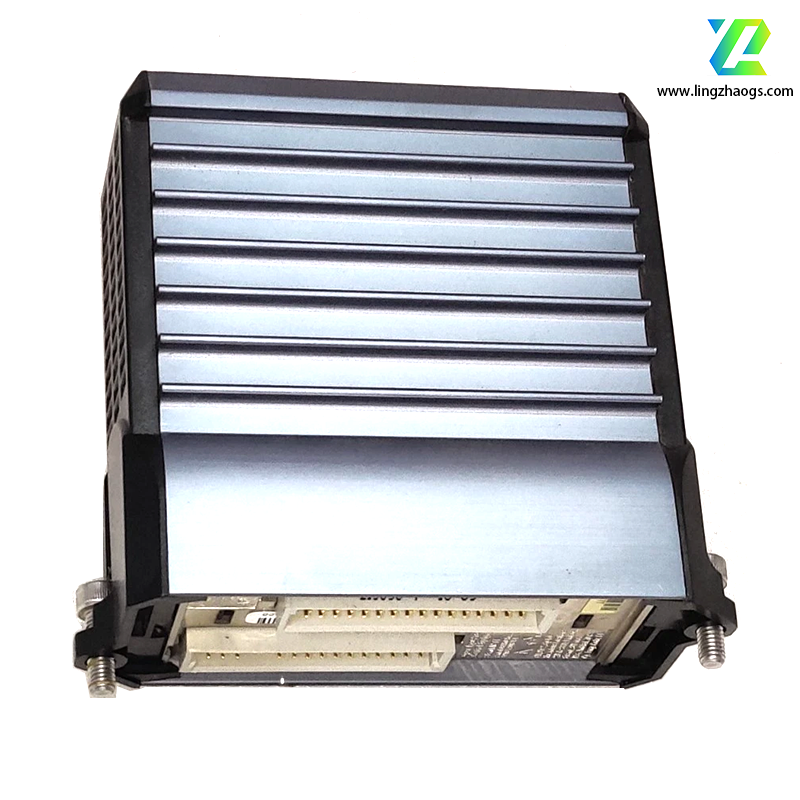

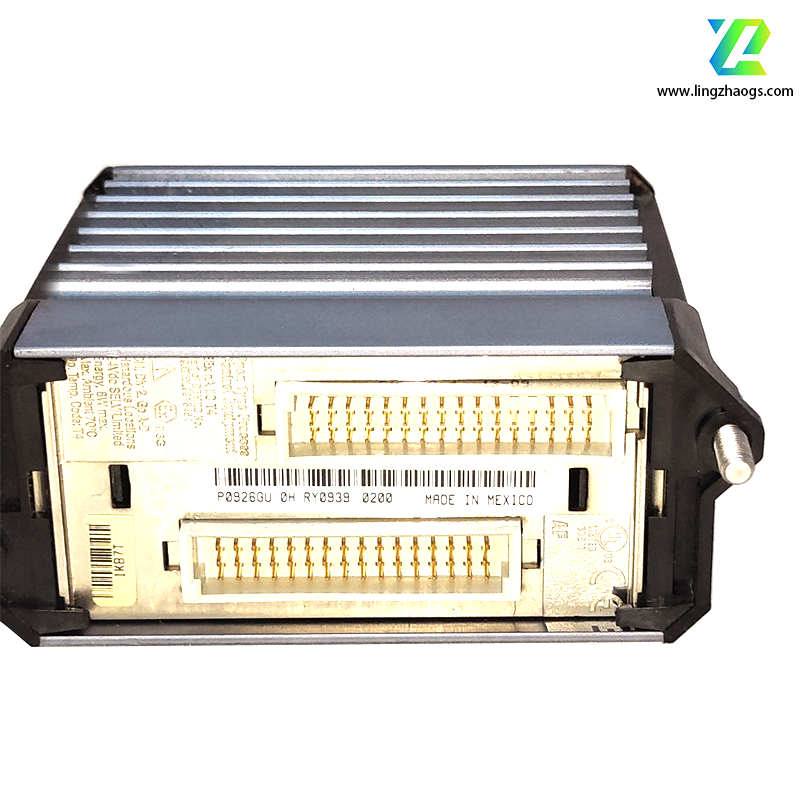

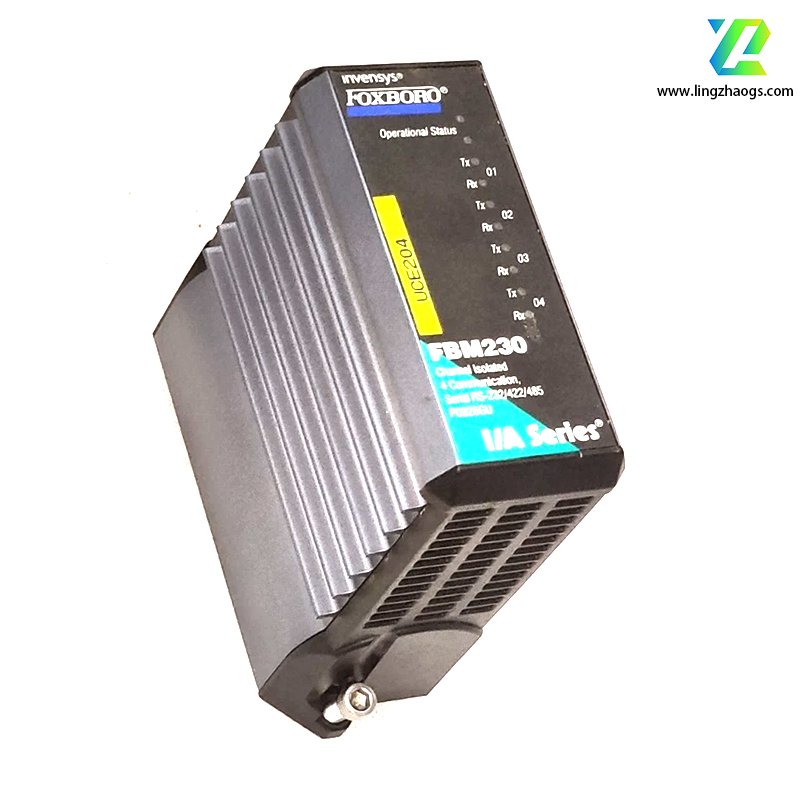

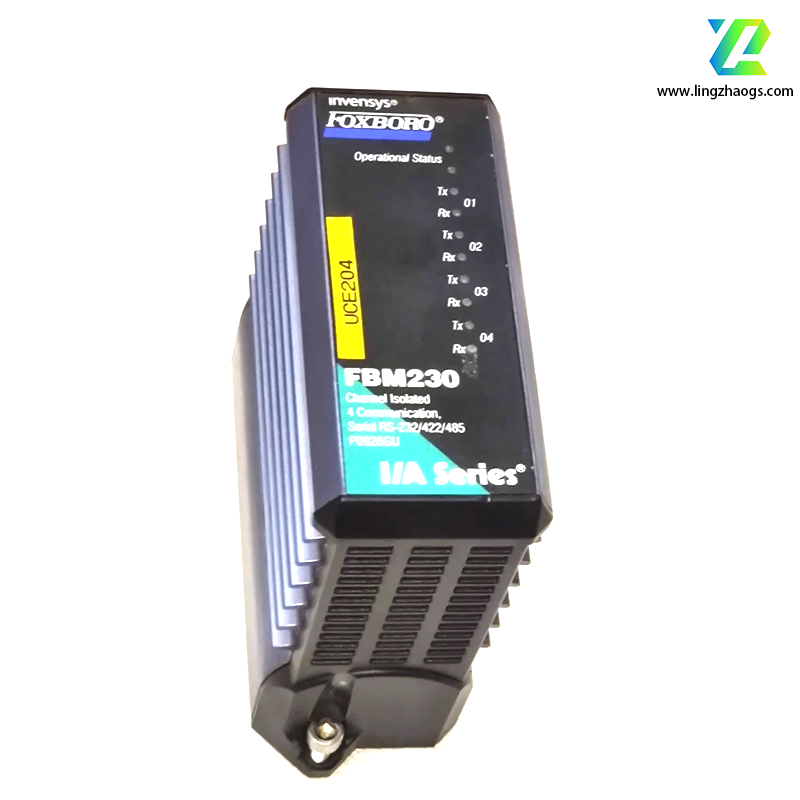

The Foxboro FBM230 P0926GU is a communication module applied in industrial automation systems. Here is the detailed information in English:
The Foxboro FBM230 P0926GU is a field device system integration module belonging to the Foxboro I/A series. It is designed to enable seamless communication between field devices and Foxboro DCS (Distributed Control System), and can be integrated into various industrial control systems to realize data collection, transmission, and control.
- Operating Voltage: Usually 24 V DC.
- Input Current: Maximum 20 mA.
- Power Consumption: Less than 1 W.
- Communication Interface: Supports RS - 232, RS - 422, and RS - 485 communication interface standards, with four ports, and each port can be individually configured in the software.
- Data Transfer Rate: Up to 115.2 kbps (depending on the protocol and configuration).
- Device Connection: Can connect up to 64 RS - 485 devices, or up to 4 directly connected RS - 232 or RS422 devices.
- Data Connection: Can realize up to 2000 Distributed Control Interface (DCI) data connections.
- Control Station Access Frequency: The fastest frequency for the control station to access module data can reach 500 ms.
- Operating Temperature Range: - 20 °C to + 70 °C.
- Storage Temperature Range: - 40 °C to + 85 °C.
- Dimensions: Approximately 90 mm x 60 mm x 25 mm (3.5 in x 2.4 in x 1 in).
- Weight: About 0.15 kg (0.33 lb).
- Flexible Port Configuration: The four ports can be independently configured as different communication interfaces, which can connect a variety of field devices to meet different communication needs.
- Multiple Protocol Support: Supports protocols such as Modbus/TCP. It can also download a variety of I/O software drivers to communicate with field devices of different protocols.
- High Integration Ability: It can realize up to 2000 DCI block connections, which can collect and process a large amount of field device data.
- High Reliability: Made of high - quality materials and processes, it can operate stably in G3 - level harsh environments and has strong anti - interference ability.
- Easy Integration: Provides an OPC server for Modbus/TCP, which is convenient for integration with third - party HMI/SCADA software.
- Isolation Design: There is isolation between channels to ensure the integrity of signals.
- Industrial Automation: Used in manufacturing production lines to monitor and control the operating status of production equipment, switch signals, sensor data, etc., to realize automated production processes.
- Process Control: In industries such as chemical, petroleum, and natural gas, it is used to monitor and control process parameters such as temperature, pressure, flow, and liquid level, and control the operation of equipment such as valves and pumps.
- Power Industry: Used in power systems to monitor electrical parameters such as current, voltage, and frequency, and control generators, switchgear, power distribution systems, etc.
- Water Treatment and Wastewater Treatment: Used to monitor and control equipment in water treatment and wastewater treatment processes, such as valves, pumps, and water tanks, to ensure that the water quality meets the standards and the treatment process is stable.
- Pharmaceutical and Biotechnology: Used to control equipment in the production process, such as reaction kettles and centrifuges, to ensure that the production process meets strict quality standards.
- Building Automation: In intelligent buildings, it is used to control systems such as air - conditioning, lighting, elevators, and security to realize the intelligent management of building equipment.
- Environmental Monitoring: Used in environmental monitoring systems to monitor environmental parameters such as air quality, water quality, and soil humidity, and control related equipment according to the monitoring results.
- Transportation System: In traffic control and railway systems, it is used to control equipment such as traffic lights and electronic turnouts to ensure the safety and smoothness of traffic operation.
