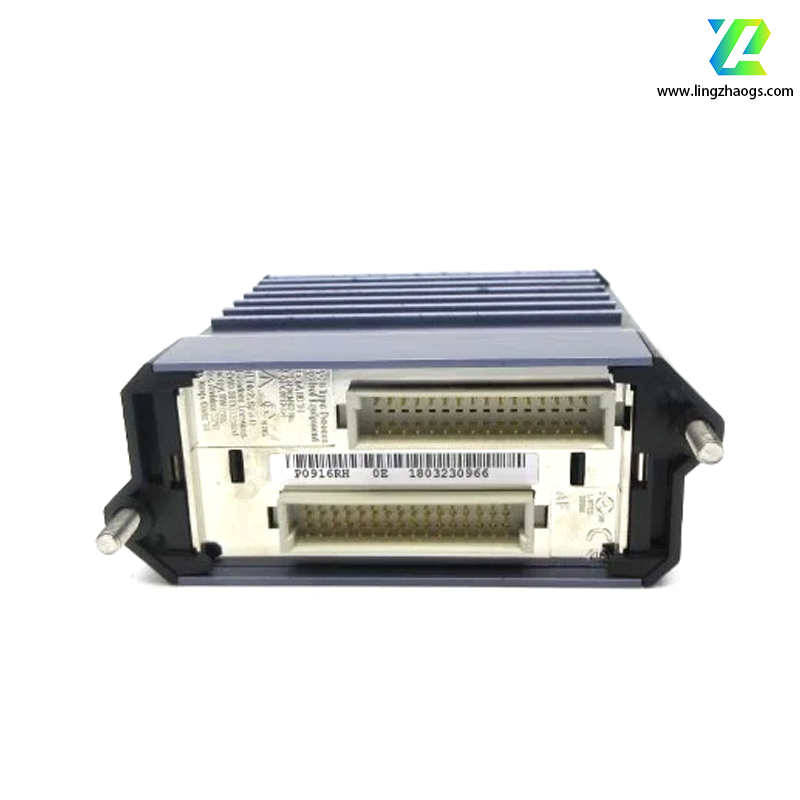

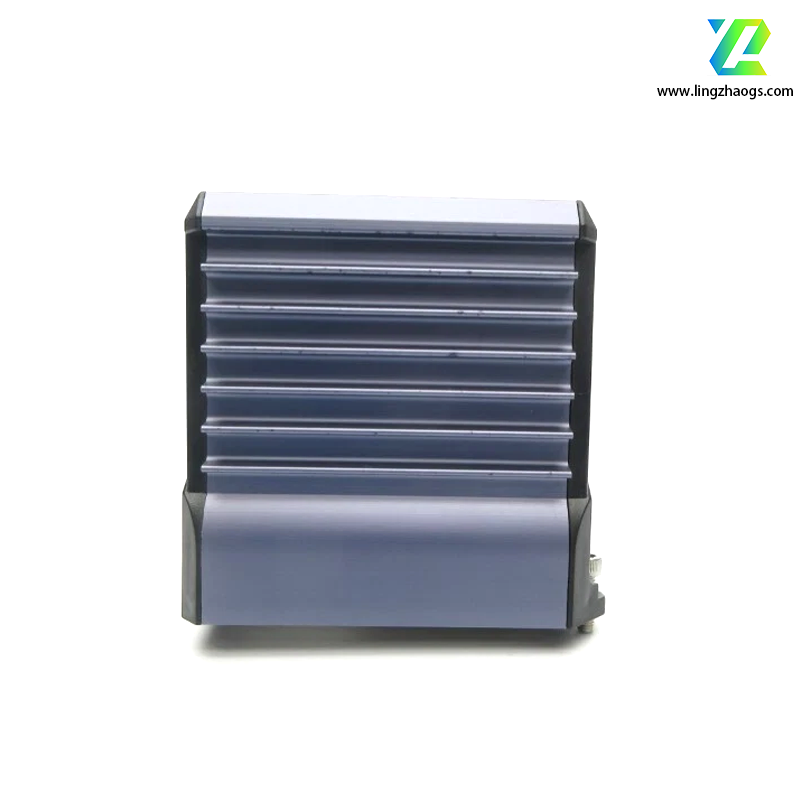

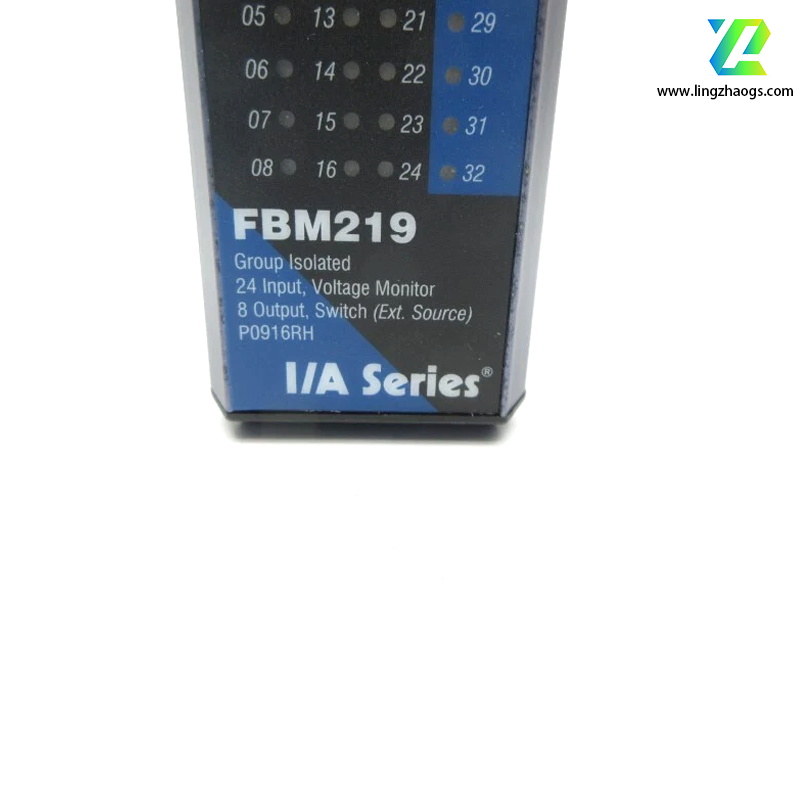

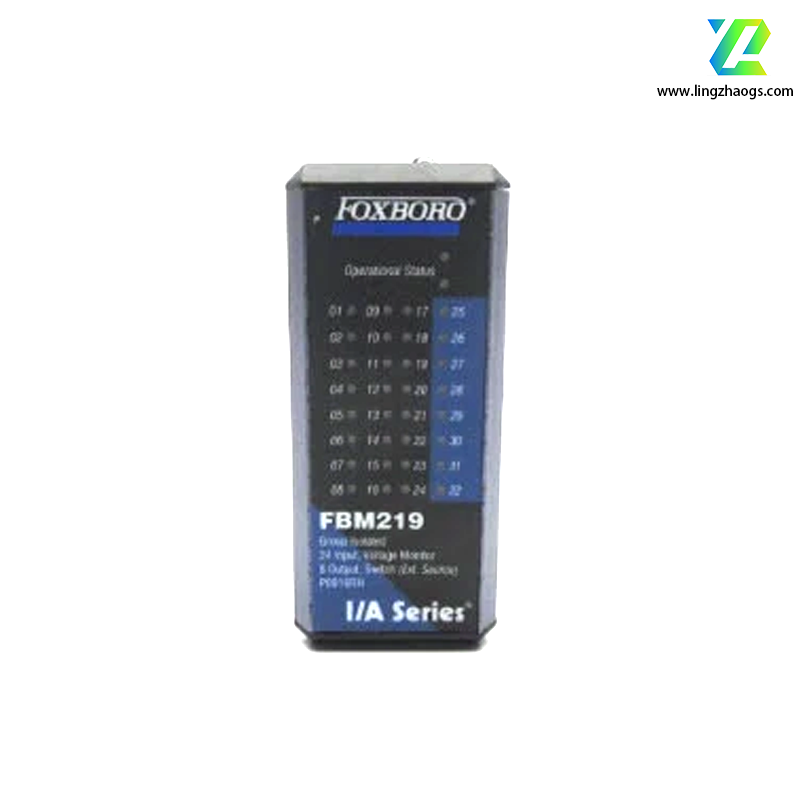

The Foxboro FBM219 P0916RH is a discrete input/output interface module applied in industrial automation systems. Here is the detailed information in English:
The Foxboro FBM219 P0916RH is designed for industrial control systems, which can ensure reliable data transmission and control in harsh environments. It is an important part of the Foxboro I/A series distributed control system (DCS), and can be seamlessly integrated with other components of the system to realize the monitoring and control of industrial processes.
- Operating Voltage: Usually 24 V DC.
- Input Type: Discrete (dry contacts).
- Output Type: Relay contact.
- Number of Channels: 16 discrete input channels and 16 output channels.
- Input Voltage Range: 12 - 30 V DC.
- Output Rating: Relay, 1 amp @ 24 V DC.
- Current Capacity: 50 mA per channel.
- Communication Protocol: Modbus RTU.
- Operating Temperature Range: - 40 °C to + 70 °C.
- Relative Humidity: 5% - 95%, non - condensing.
- Power Consumption: Max. 3 W.
- Enclosure Protection: IP65.
- Dimensions: Approximately 100 mm x 50 mm x 75 mm.
- Isolation Design: Each input and output channel has isolation, and the input and output groups are also isolated. This can effectively prevent interference between channels and ensure the accuracy and stability of signals.
- Flexible Configuration: The filter/debounce time of the input channels can be configured, with options of no filtering, 4 ms, 8 ms, 16 ms, or 32 ms. It can also execute discrete I/O or ladder logic programs, with configurable options such as input filter time, fail - safe configuration, fail - safe fallback, and sustained or momentary outputs.
- Wide - range Input: It can support discrete input/output signals at voltages of 15 - 60 V DC, 120 V AC/125 V DC, 240 V AC, which has strong versatility and can be connected with a variety of field devices.
- High - speed Communication: It can communicate with its associated FCM or FCP via a redundant 2 Mbps module fieldbus, enabling efficient data transmission.
- Visual Indicators: Usually equipped with LEDs to indicate the operating status of the module and the communication status of each channel, which is convenient for operators to monitor and troubleshoot.
- Chemical Processing: Used for monitoring and controlling chemical reactions, material flow, and other processes in chemical plants, helping to ensure product quality and production safety.
- Oil and Gas Refining: Applied in the oil and gas industry to collect data from field devices such as wellheads, pipelines, and storage tanks, and transmit the data to the control system for processing and analysis, so as to realize the efficient management of the oil and gas production process.
- Power Generation: In power plants, it is used to monitor various parameters such as temperature, pressure, and flow, to ensure the stable operation of the power generation system.
- Water and Wastewater Treatment: Can be used to monitor and control the treatment process of water and wastewater, such as monitoring the water quality parameters of sewage treatment plants and controlling the operation of pumps and valves.
- Pulp and Paper: In the pulp and paper industry, it is used to monitor and control the production process, such as the control of pulp cooking, paper making machines, etc., to improve production efficiency and product quality.
- Food and Beverage: Used in the food and beverage industry to monitor the temperature, pressure, and other parameters in the production process to ensure product quality and food safety.
