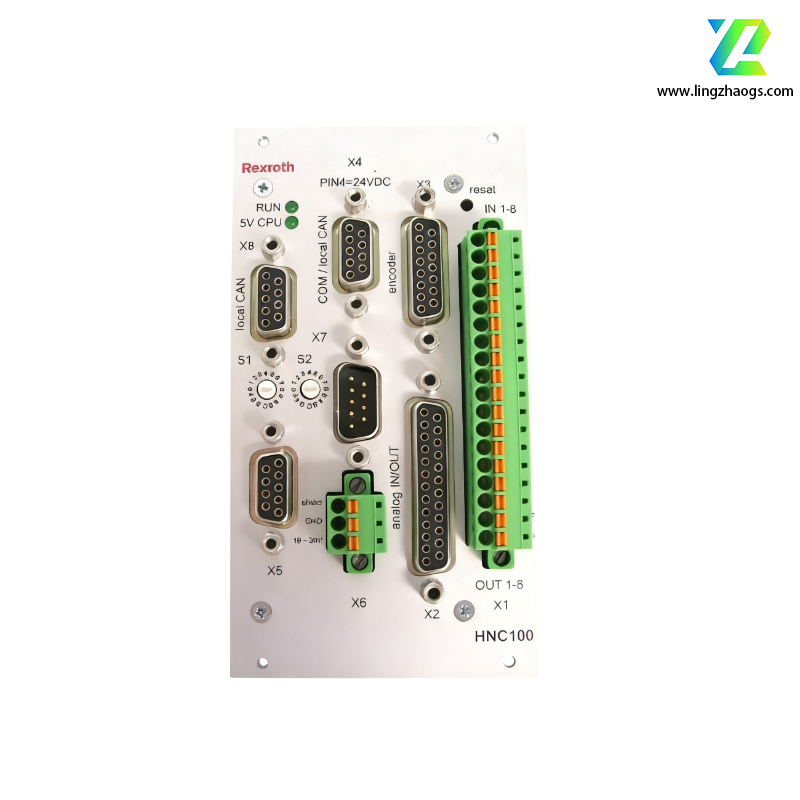

The Rexroth VT-HNC100-1-23 is a high-performance digital controller. The following is the detailed information in English:
- Brand: Bosch Rexroth
- Model: VT-HNC100-1-23
- Product Type: Digital Controller/Hydraulic Axis Controller
- Series: VT-HNC100
- Control Axes: It can control up to four axes and has one hydraulic axis.
- Processor: 16/32-bit MC68376.
- Memory: 1 MB of flash EPROM, 8 KB of EEPROM, and 256 KB of RAM.
- Input/Output: 8 digital inputs/outputs, 4 analog current inputs (4-20 mA), and up to 4 differential analog voltage inputs (0 to ±10 V).
- Position Sensor Interface: Supports incremental encoders, absolute (SSI) sensors, analog sensors (0 to ±10 V, 4-20 mA), and EnDat digital position sensors.
- Power Supply: The operating voltage range is 18 to 36 VDC, and the power consumption is about 8 W (excluding the connected actuators and sensors).
- Installation Method: Wall-mounted (W).
- Bus Interface: Some specific configurations may not have a bus interface. However, other models in the same series support Profibus DP, CANopen, or INTERBUS-S.
- Programming Software: WIN-PED® version 6.6 or higher.
- Working Temperature: 0°C to +50°C.
- Storage Temperature: -20°C to +70°C.
- Protection Level: Designed for industrial environments, resistant to interference, vibration, and shock.
- Certification: Complies with EC directives (CE certified).
- Precise Control: Optimized for electro-hydraulic proportional control, it can achieve closed-loop control of position, speed, and pressure/force. By receiving signals from high-precision position sensors, it can adjust the opening of hydraulic valves in milliseconds to ensure the accurate movement of hydraulic cylinders.
- Flexible Programming: With a powerful MC68376 processor and sufficient built-in memory, it can store complex control algorithms and user programs. Through Bosch Rexroth's WIN-PED® software, engineers can intuitively set parameters, plan motion curves, and diagnose, greatly simplifying the debugging and optimization process.
- Reliability: It has strong anti-electromagnetic interference ability and can withstand machine vibration and 冲击. Even in an environment with large temperature fluctuations, it can operate stably for a long time.
