Disclaimer: The following information is compiled based on technical references from Bosch Rexroth’s VT-VSPD series (a closely related product line) and third-party sources due to the unavailability of official documentation for the exact model VT-TSPD-1-1XV00. For critical applications, always verify with Bosch Rexroth’s official technical support.
- Type: Digital amplifier for proportional valves without electronic stroke feedback.

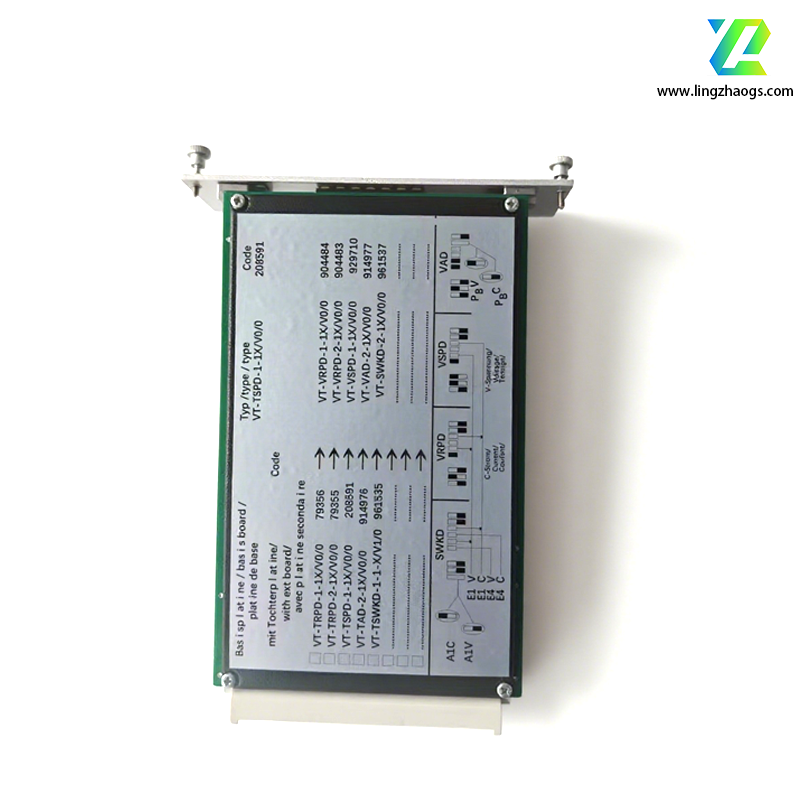

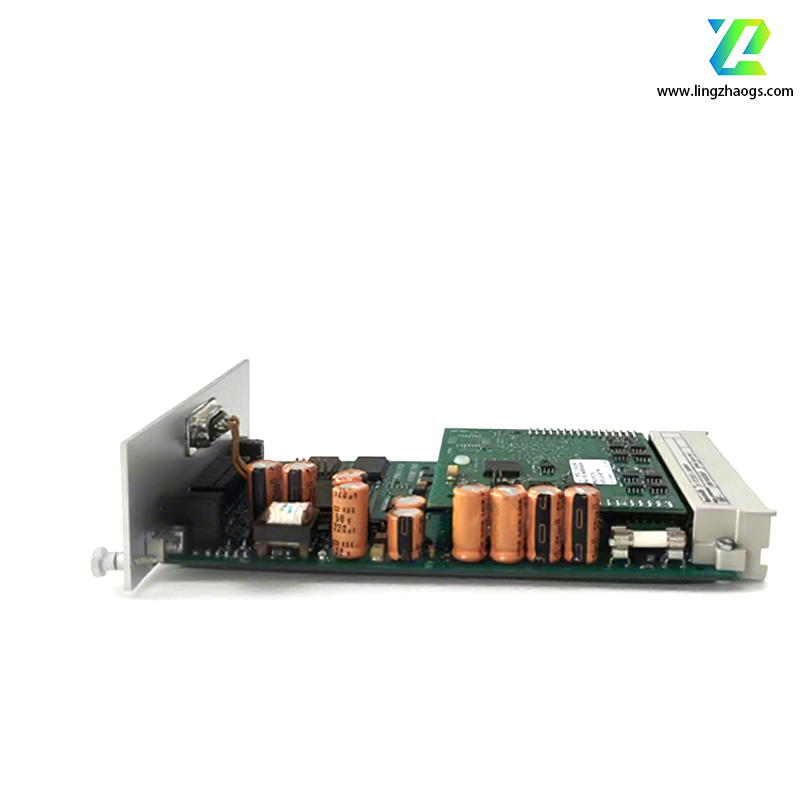

- Form Factor: European-style printed circuit board (PCB) with a built-in sub-board.
- Dimensions: 100 mm × 160 mm (length × width)boschrexroth-ind.com.
- Weight: Approximately 0.15 kg (based on similar models).
- Power Supply:
- Voltage: 24V DC (±10% tolerance)boschrexroth-ind.com.
- Current Consumption: ≤2.5A (max. valve current)boschrexroth-ind.com.
- Input Signals:
- Analog Voltage: ±10V (differential input, impedance >100 kΩ)boschrexroth-ind.com.
- Analog Current: 4–20mA (input resistance 100 Ω)boschrexroth-ind.com.
- Output:
- Voltage: ±10V (into 1 kΩ load).
- Current: 2.5A (max. for valve actuation)boschrexroth-ind.com.

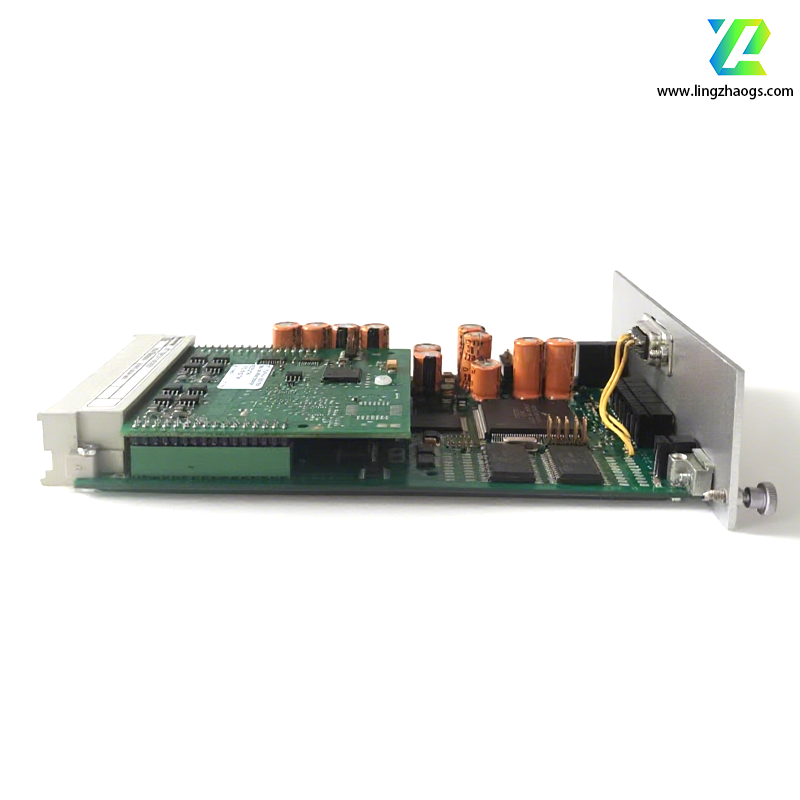

- Switch-Mode Power Supply: Generates internal voltages (e.g., ±15V, 5V) for stable operationboschrexroth-ind.com.
- Zero-Level Calibration: Automatic hardware-based calibration to eliminate offset errors, with parameters stored in EEPROMboschrexroth-ind.com.
- Ramp Generator: Adjustable rise/fall times (up to 300 seconds) for smooth valve controlboschrexroth-ind.com.
- Digital Inputs:
- 4 binary inputs for selecting pre-configured parameter sets (up to 16 sets)boschrexroth-ind.com.
- Enable input (H-level activation) and fault output (low signal for errors)boschrexroth-ind.com.
- Communication:

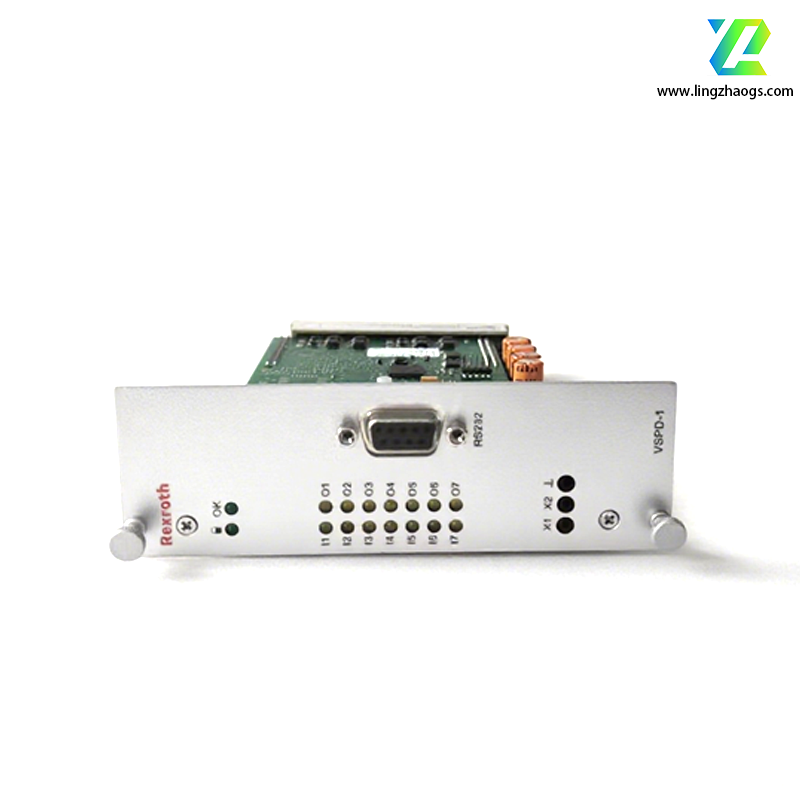

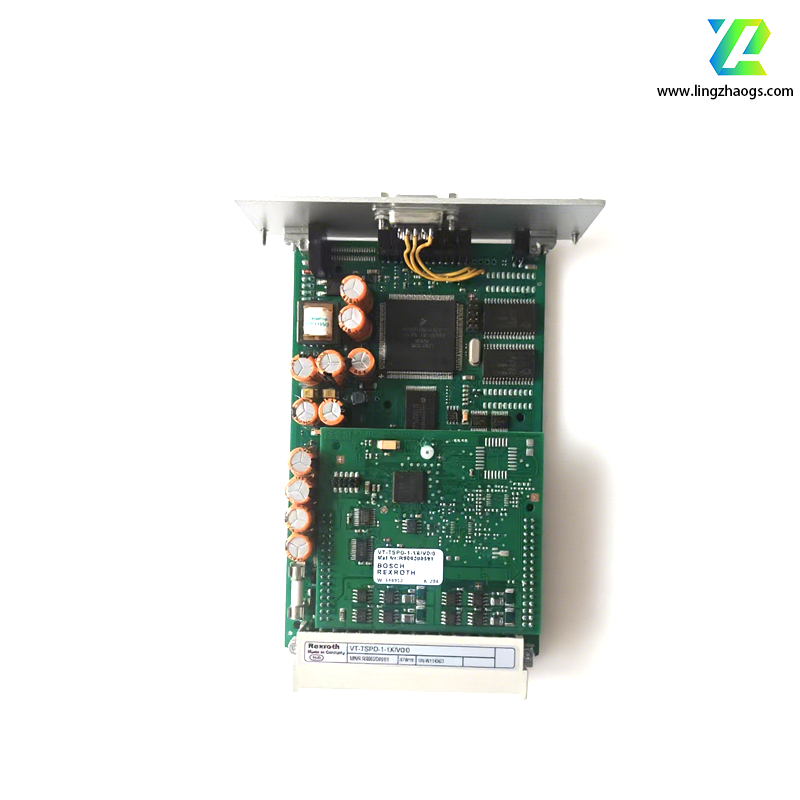

- RS-232 interface (D-sub socket) for configuration and diagnosticsboschrexroth-ind.com.
- Local bus support for daisy-chaining up to 32 amplifiersboschrexroth-ind.com.
- LED Indicators:
- "OK" status (green), fault (red), and enable (yellow)boschrexroth-ind.com.
- Fault Detection:
- Overcurrent, short-circuit, and cable break protection for solenoid outputsboschrexroth-ind.com.
- Error logging and fault code display (via serial interface or optional display module)boschrexroth-ind.com.
- Mounting:

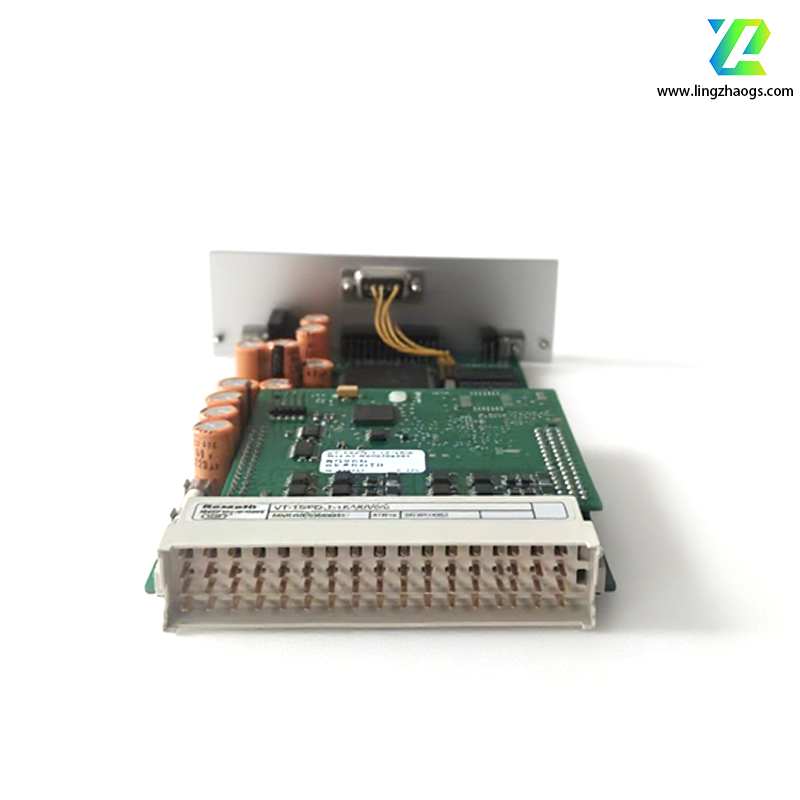

- Eurocard format (3U height) for 19-inch racks or standalone enclosuresboschrexroth-ind.com.
- Temperature Range:
- Operating: 0°C to +50°C (ambient).
- Storage: -25°C to +85°C.
- Protection Class: IP20 (dust protection).
- Target Valves: Direct-acting or pilot-operated proportional pressure/directional valves (e.g., Rexroth’s DRE, DBE, or KKB series)boschrexroth-ind.com.
- Industries:
- Industrial automation (e.g., machine tools, presses).
- Mobile hydraulics (e.g., construction equipment).
- Process control systems requiring precise flow/pressure regulation.
- Official Resources:
- Visit Bosch Rexroth’s Download Center to search for datasheets or manuals using the model number.
- Contact Rexroth Technical Support for personalized assistance.
- Third-Party References:
- Technical specifications for the VT-VSPD-1-1X/V0/1-0-1 (a similar model) provide additional insights into configuration and operationboschrexroth-ind.com.
- The exact model VT-TSPD-1-1XV00 is not explicitly listed in Bosch Rexroth’s public databases. The specifications above are inferred from compatible products within the VT-VSPD and VT-TSPD families.
- For safety-critical applications or detailed parameterization, always consult Rexroth’s official documentation.
Note: Bosch Rexroth frequently updates product specifications. Verify the latest data sheets before implementation.
