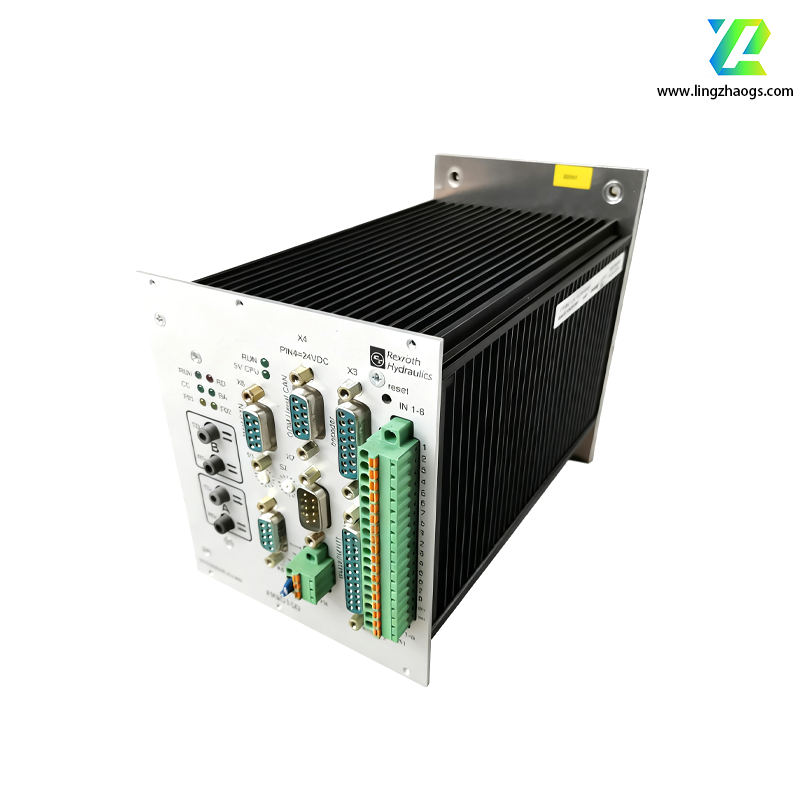

The Rexroth 100-NIB-23W-08 is actually the VT-HNC100-1-23/W-08-P-0, which is a high-performance digital axis controller belonging to the VT-HNC100 series. The following is the detailed information in English:
- Brand: Bosch Rexroth
- Model: VT-HNC100-1-23/W-08-P-0
- Type: Digital Axis Controller
- Series: VT-HNC100
- Control Axes: It is a programmable NC control that can control up to four axes and has one hydraulic axis.
- Housing Type: Wall-mounted housing.
- Input/Output: Equipped with 8 digital inputs/outputs.
- Communication Interface: Has PROFIBUS DP bus connectivity.
- Processor: Uses a 16/32-bit MC68376 processor for precise open and closed-loop control of position, velocity, and pressure of the electro-hydraulic axis.
- Power Supply: The operating voltage range is 18 to 36 VDC.
- Transducer Type: Supports both incremental and SSI transducers.
- Memory: It is equipped with 1 MB of flash EPROM, 8 KB of EEPROM, and 256 KB of RAM.
- Precise Control: Meets the specific requirements of hydraulic drive closed-loop control and can also control electric drives, providing precise control for various types of servo motors.
- Modular Design: The modular design makes it easy to configure and expand, allowing users to flexibly adjust according to different application requirements.
- Flexible Programming: Supports user programming with a PC, uses an NC language with subroutine technique and conditional jumps, and has a separate NC program for function sequences.
- Convenient Data Management: Allows for comfortable administration of data on a PC.
- Rich Process Interfaces: Has 8, 16, or 24 digital inputs and outputs, and with the help of the WIN - PED 5 Bus Manager, it can achieve comfortable configuration of field bus interfaces.
- Diverse Hydraulic Axle Functions: The measuring system includes incremental or absolute (SSI), analog 0 to ±10 V and 4 to 20 mA, and a reference voltage of ±10 V. It has voltage or current control variable output and freely configurable controller variants, such as position controller, pressure/force controller, position - dependent braking, alternating control (position/pressure), and synchronization control for 2 axes.
- Machine Tools: Such as CNC machine tools, used for the motion control of machine tools to ensure high-precision machining.
- Plastic Processing Machines: Provide precise control for the motion of plastic processing equipment to ensure the quality of plastic products.
- Special Machines: Applicable to various special machines that require precise motion control.
- Presses: Used in presses to achieve precise control of the pressing process.
- Transfer Lines: Ensure the coordinated and precise motion of each part on the transfer line to improve production efficiency and product quality.
- Rail - bound Vehicles: In some rail - bound vehicles, it is used for the control of related motion systems.
