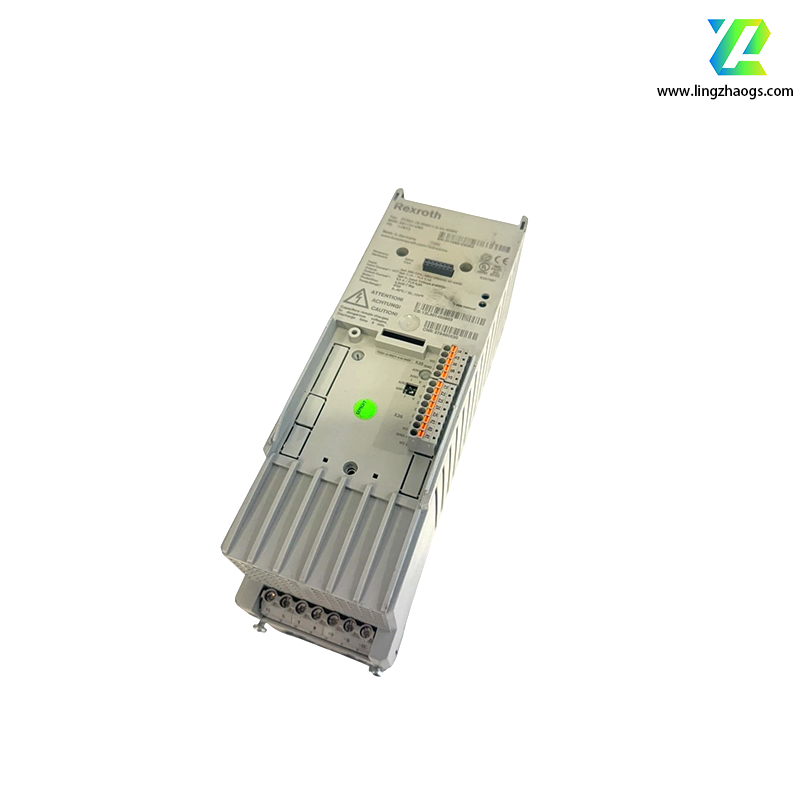

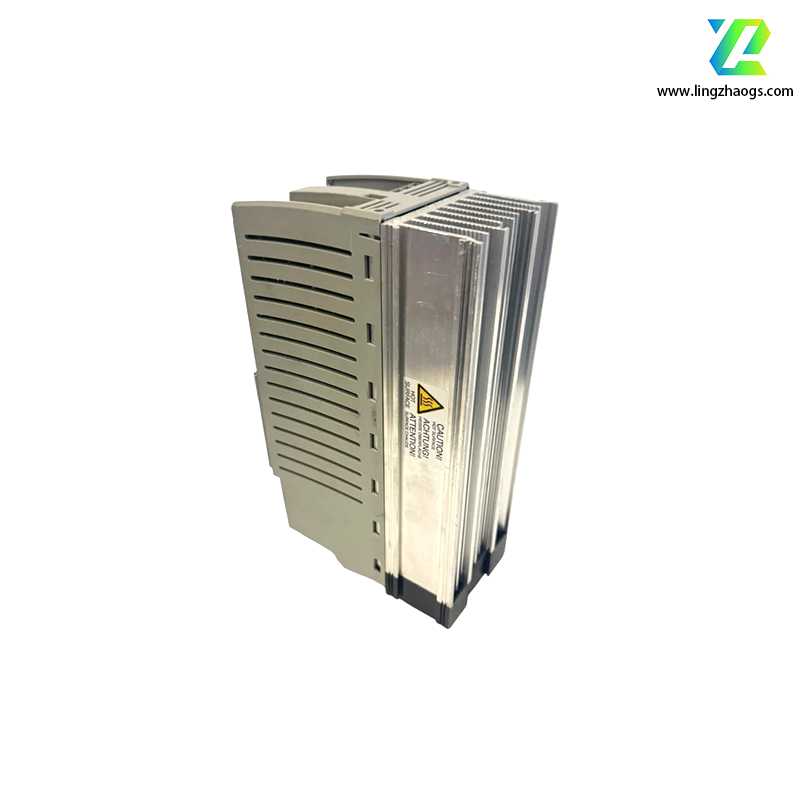

The Rexroth WO011-A-04-NNBV is actually the FCS01.1E-W0011-A-04-NNBV, and its part number is R911311065. It is an AC inverter drive belonging to the IndraDrive FC series. The following is the detailed information in English:
- Brand: Bosch Rexroth
- Model: FCS01.1E-W0011-A-04-NNBV
- Part Number: R911311065
- Product Type: AC Inverter Drive
- Series: IndraDrive FC
- Input Voltage: 380 - 480 V three - phase (-20% / +10%), 50/60Hz ± 5%
- Output Power: 2.2 kW (3.0 HP)
- Rated Output Current: 5.5 A
- Output Frequency Range: 0 - 400 Hz
- Control Method: V/f control, sensorless vector control
- Analog/Digital Inputs: 2 analog/digital inputs
- Digital Inputs: 5 digital inputs
- Analog Outputs: 1 analog output
- Relay Outputs: 2 sets of normally open/normally closed contacts
- Communication Interfaces: RS232, RS485
- Protection Class: IP20
- Dimensions: Size B, 73 mm wide x 153 mm deep x 226 mm high (260 mm high when wall - mounting brackets are included)
- Weight: Approximately 1.8 kg
- Overload Capacity: Can withstand 150% of the rated current for 60 seconds or 200% of the rated current for 3.5 seconds
- Pulse Frequency: Continuously adjustable in the range of 3 kHz to 16 kHz
- Precise Motor Control: Supports V/f control and sensorless vector control, providing precise motor speed and torque control for various applications, optimizing the production process and improving equipment efficiency.
- Compact Design: The compact Book Size B design saves installation space and simplifies the installation process.
- Rich I/O Interfaces: Equipped with 2 analog/digital inputs, 5 digital inputs, 1 analog output, and 2 relay output sets, which can be flexibly connected to various external control and feedback devices.
- Built - in Communication Interfaces: Integrated RS232 and RS485 interfaces support communication protocols such as Modbus RTU, facilitating data exchange and parameter configuration with the upper - level control system.
- DC Bus Terminals: Built - in DC bus terminals facilitate common - bus energy feedback and improve energy utilization efficiency.
- Programmable via PC: Can be programmed and configured through IndraWorks software and a PC connection cable, which is convenient for users to debug and maintain.
- Manufacturing Industry: Used to control various motor - driven equipment on the production line, such as conveyor belts, pumps, fans, mixers, etc.
- Material Handling: Applied to the speed and torque control of equipment such as cranes, conveyor belts, and packaging machinery.
- Process Control: In industries such as chemical, food and beverage, and pharmaceutical, it is used to control pumps, agitators, compressors, etc. in the process flow.
- Machine Tools: Used to control the drive motors of machine tool spindles and feed axes to achieve precise machining operations.
- HVAC: Controls the speed of fans and pumps to achieve energy - saving operation and precise temperature control.
