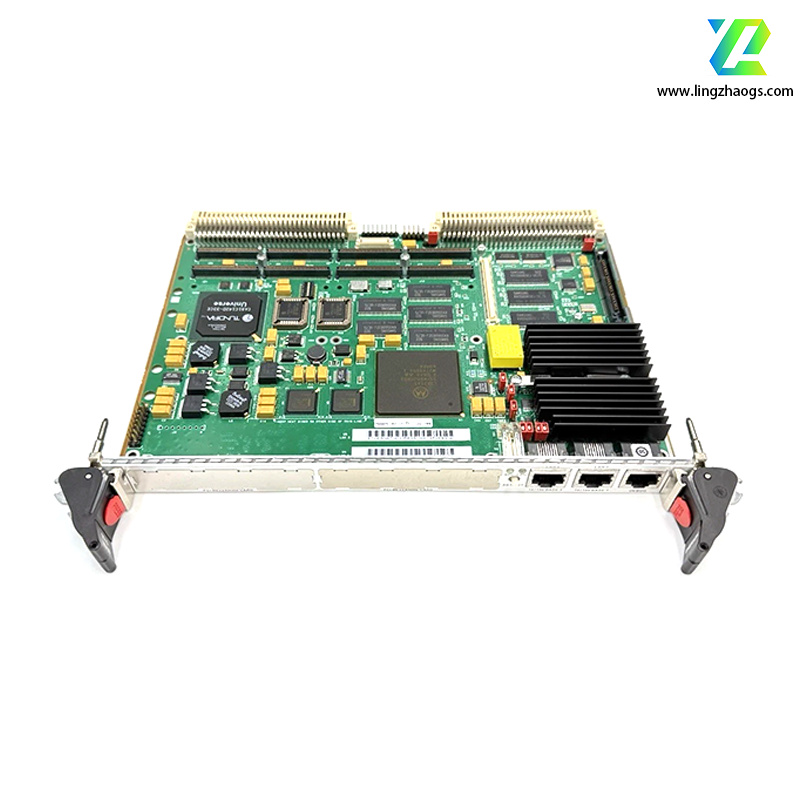

The Motorola MVME5100 is a high-performance VME processor module designed to meet the needs of OEMs in the military and aerospace, industrial automation, and semiconductor process equipment market segments. Here is its detailed information in English:
- Processor: It supports a variety of processor options, including the PowerPC MPC7400 with AltiVec technology, MPC7410, or the low-power MPC750, MPC755. These processors have the characteristics of high performance and low power consumption, which are suitable for industrial automation and embedded control applications.
- Cache: It is equipped with a 32KB L1 cache and can have up to 2MB of secondary backside cache, which can accelerate data access and improve the overall performance of the system.
- Memory: It has 64MB, 128MB, or 512MB of on-board ECC SDRAM, which can be expanded to 1GB with an optional RAM 500 memory expansion module.
- Storage: It is usually equipped with a 2GB IDE hard disk or solid-state hard disk, and also provides a variety of storage options such as CompactFlash.
- Interfaces:
- Serial Ports: There are dual 16550-compatible asynchronous serial ports.
- Ethernet Interfaces: It is equipped with dual 10BaseT/100BaseTX Ethernet interfaces, which can provide high-speed network communication capabilities.
- Expansion Slots: It has dual IEEE P1386.1-compatible 32/64-bit PMC expansion slots and a 64-bit PCI expansion mezzanine connector, allowing for the addition of more PMC modules to expand the functionality of the system.
- Other Components: It is equipped with a 32KB NVRAM and a time-of-day clock with a replaceable battery backup, four 32-bit timers, and one watchdog timer.
- Power Consumption: The power consumption is about 50W.
- Dimensions: It is a 6U VME module, and its specific dimensions are approximately 233mm x 167mm x 60mm.
- Weight: The weight is about 0.9kg (2 lbs).
- Operating Temperature: It can operate in an environment with ambient air temperatures from -40°C to 85°C.
- Humidity: It can work normally in an environment with a humidity of 5% to 95% (non-condensing).
It supports a variety of operating systems such as VxWorks, Linux, and Windows CE. This facilitates software development and system integration, enabling the MVME5100 to be applied to different application scenarios and meet various user requirements.
- High Performance: Thanks to the advanced processor architecture and high-speed memory controller, the MVME5100 can quickly process a large amount of data. For example, in some automation control systems that require real-time processing of complex algorithms, it can complete data operations and analysis in a short time to ensure the efficient operation of the system.
- Rich Interfaces and Expansion Capabilities: It is equipped with a variety of interfaces and PMC expansion slots, which are convenient for users to connect different external devices according to actual needs and carry out function expansion.
- High Reliability: Motorola, as a well-known brand, strictly follows quality standards in the product design and manufacturing process and uses high-quality components to ensure that the product can operate stably in harsh industrial environments.
