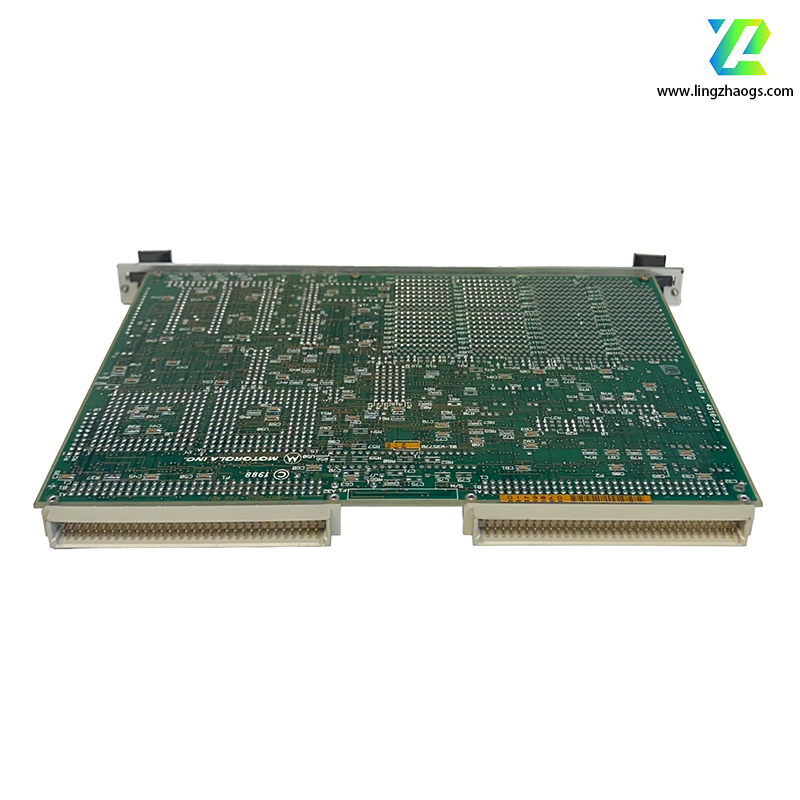

The Motorola MVME147SRF is a high-performance industrial control module designed for advanced automation systems. Here is its detailed information in English:
- Processor: It is equipped with a Motorola MC68030 microprocessor, which can be optionally equipped with an MC68882 floating-point coprocessor to enhance the ability to handle complex numerical calculations.
- Memory: It has 4 MB of RAM. There is no parity check for the shared DRAM, which is different from the MVME147S. It also has 2 EEPROM chips installed.
- Interfaces:
- Serial Ports: There are four serial ports with RS-232C buffers, which can be used for communication with various serial devices.
- SCSI Interface: It is equipped with a Small Computer System Interface (SCSI) bus interface with a DMA channel, which can be connected to external storage devices and other SCSI-compatible equipment.
- Printer Port: It is equipped with a Centronics printer port, which can be directly connected to a printer and other equipment.
- Other Components: It is equipped with a timer/calendar with a backup battery, which can provide accurate time information. There are also four ROM/PROM/EPROM/EEPROM sockets (16-bit wide), VME bus interrupter, VME bus system controller function, VME bus master interface (compatible with A32/D32, A24/D16), VME bus requester, SCON, DUAL, FAIL, and STATUS status indicator lights, reset and abort switches, etc.
- Operating Voltage: It usually operates at 24 VDC.
- Input Frequency: The input frequency is 50/60 Hz.
- Dimensions: It is a double-high VME module, with dimensions approximately 19 inches x 7 inches x 1.75 inches (about 482.6 mm x 177.8 mm x 44.45 mm).
- Weight: The weight is about 3.5 kg.
- Material: It is made of stainless steel, which has good durability and can withstand harsh environmental conditions.
- It has obtained certifications such as CE, UL, and is compliant with RoHS, ensuring safety and compliance with international standards.
- High Performance and Reliability: It can provide reliable performance in industrial environments, ensuring the stable operation of the system.
- Ease of Integration: Its compact design allows for easy integration into existing systems without compromising functionality or performance.
- Versatility: With advanced control algorithms and a wide - range operating voltage, it can handle a variety of complex tasks.
