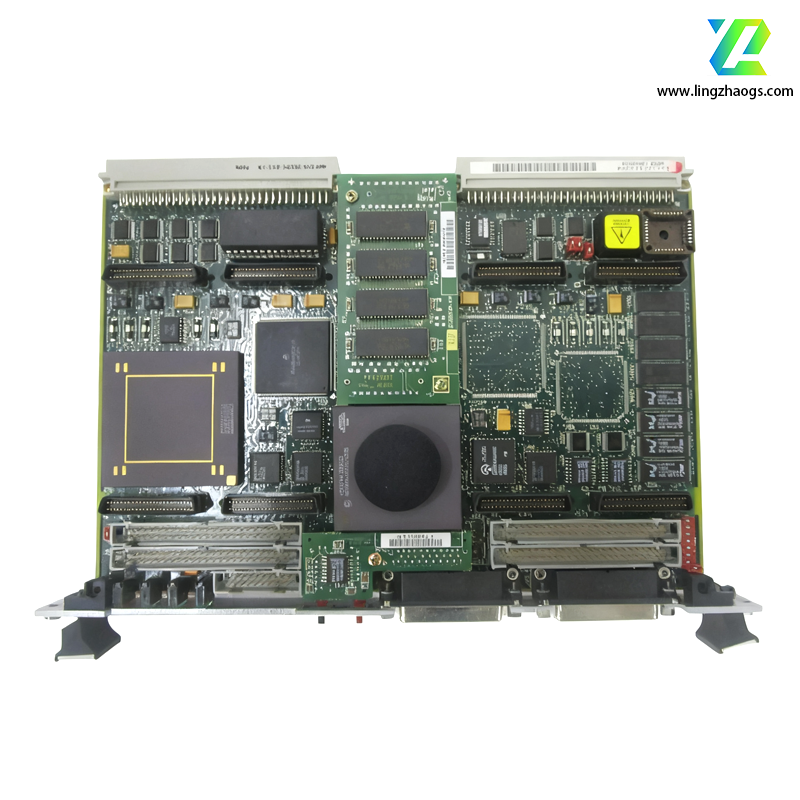

The Motorola MVME162-10 is a high-performance industrial control module applied to advanced automation systems. Here is its detailed information in English:
- Processor: It is a double-high VME module equipped with an MC68LC040 or an optional MC68040 microprocessor. The MC68040 microprocessor has a floating-point coprocessor, while the MC68LC040 does not. Some configurations use a 25 MHz MC68LC040 processor.
- Memory: It has 1MB, 4MB, or 8MB of parity-protected DRAM, 512KB of SRAM with battery backup, and 1MB of flash memory.
- Interfaces:
- Serial Ports: There are two serial ports, which are EIA-232-D and EIA-232-D/EIA-530 respectively.
- Ethernet Interface: An optional LAN Ethernet transceiver interface with DMA is available.
- SCSI Interface: An optional SCSI bus interface with DMA can be configured.
- VMEbus Interface: It supports local bus to VMEbus/VMEbus to local bus conversion, with bus widths of A16/A24/A32, D8/D16/D32, and has a VMEbus system controller function.
- Other Components: It is equipped with a TOD clock with battery backup, six tick timers with watchdog timers, etc. There are also SCON, FAIL, and other status indicator lights, reset and abort switches, etc.
- Operating Voltage: It usually operates at +5V (±5%), with a typical current of 3.5A and a maximum of 4.5A (when there is a PROM).
- Power Consumption: The power consumption is about 10W.
- Dimensions: It is approximately 19 inches x 1.75 inches x 14 inches (about 482.6 mm x 44.45 mm x 355.6 mm).
- Weight: The weight is about 5 lbs (about 2.27 kg).
- Operating Temperature: It can operate in an environment with ambient air temperatures from -40°C to 85°C.
- Humidity: It can work normally in an environment with a humidity of 5% to 95%.
- It has obtained certifications such as CE, UL, and is compliant with RoHS, ensuring safety and compliance with international standards.
- High Reliability and Durability: It is made of high-quality materials and can provide reliable performance in industrial environments.
- Ease of Integration: Its VMEbus interface ensures seamless integration with existing equipment, enhancing system compatibility and efficiency.
- Wide Operating Range: It can operate efficiently within a wide range of temperatures and humidity levels, suitable for diverse industrial settings.
- Low Power Consumption: It has low power consumption, which is beneficial to energy conservation and heat dissipation.
