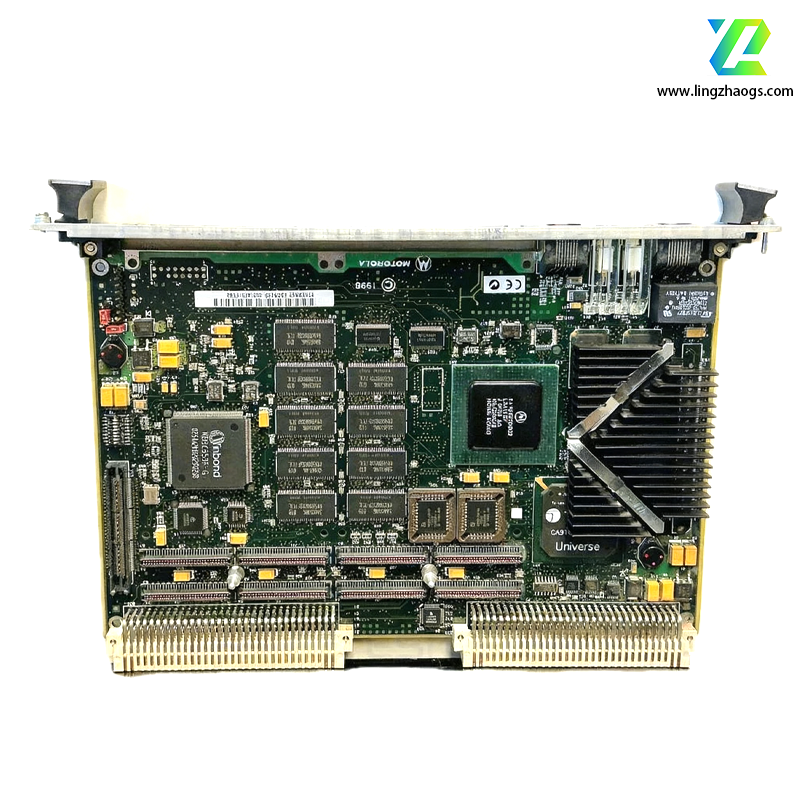

The Motorola MVME2434 is a high-performance embedded computer module applied to industrial automation, data acquisition, and control systems. Here is its detailed information in English:
- Processor: It is equipped with a PowerPC 750 32-bit microprocessor, which can provide reliable computing power for various applications.
- Cache: It has a 32KB/32KB L1 cache and a 1MB back-end L2 cache, which can accelerate data access and processing speed and improve the overall performance of the system.
- Memory: It is equipped with 32MB to 512MB of onboard ECC SDRAM, which can ensure data integrity and reliability during storage and processing.
- Bus: It has a Peripheral Component Interconnect (PCI) bus for onboard peripherals, a processor/memory bus to PCI bus bridge, and a VME interface, which can realize efficient data transmission and communication between different components.
- Interfaces: Usually, it is equipped with multiple interfaces such as Ethernet, serial communication, digital input/output, and USB ports. These interfaces can facilitate the module to exchange data with other devices and systems, such as connecting to sensors, actuators, or other control modules.
- Other Components: It may be equipped with a timer/calendar with a backup battery to provide accurate time information. There are also status indicator lights, reset and abort switches, etc., which are convenient for users to monitor the operating status of the module and perform corresponding operations.
It usually supports real-time operating systems such as VxWorks, which have the characteristics of strong real-time performance, high reliability, and powerful network communication capabilities, and can meet the needs of various industrial control applications.
The MVME2434 can be fully customized through two PCI Mezzanine Cards (PMCs) to meet specific application needs. This expansion capability allows users to add functions and performance to the system according to actual requirements, such as increasing communication interfaces or enhancing data processing capabilities.
- Dimensions: It is usually a 3U or 6U VME module, and its specific dimensions vary depending on the actual model. For example, the dimensions of the 6U VME module are approximately 233mm x 167mm x 60mm.
- Weight: The weight is about 1.5kg (the weight of different models may vary slightly).
- Operating Temperature: It can usually operate in an environment with ambient air temperatures from -40°C to 85°C. This wide operating temperature range makes it suitable for various harsh industrial environments.
- Humidity: It can work normally in an environment with a humidity of 5% to 95% (non-condensing).
- Industrial Automation: It is used to monitor and control industrial production processes, such as in manufacturing, chemical, petrochemical, and other fields, to realize functions such as equipment control, process monitoring, and data collection.
- Embedded Control Systems: It is applicable to various embedded control systems, such as machine control, automation equipment, etc., to provide core computing and control functions.
- Data Acquisition and Processing: It is used in data acquisition systems to collect and process sensor data, instrument data, etc., and perform operations such as data analysis and storage on the acquired data.
- Communications Equipment: In the communications industry, it is used for the control and data processing of communications equipment, such as base stations, network switches, etc.
- Medical Equipment: In the medical industry, it is used for the control and data processing of medical equipment, such as medical imaging equipment, laboratory equipment, etc., to ensure the accurate operation and data processing of medical equipment.
- Aerospace Applications: It is used for control and data processing in aerospace fields such as flight control systems and navigation systems, and can meet the high-reliability and high-performance requirements of aerospace applications.
