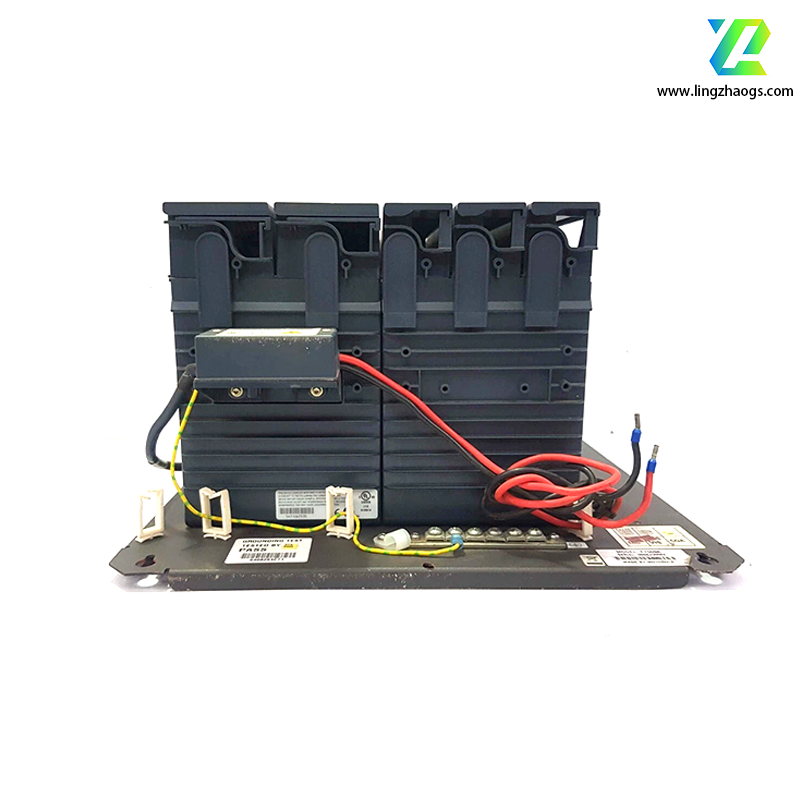

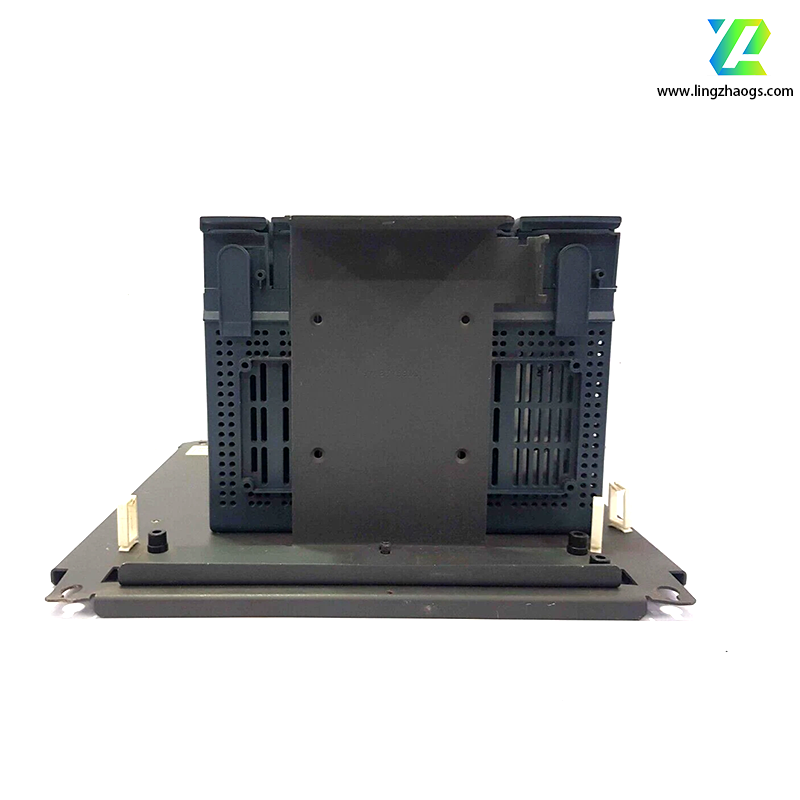

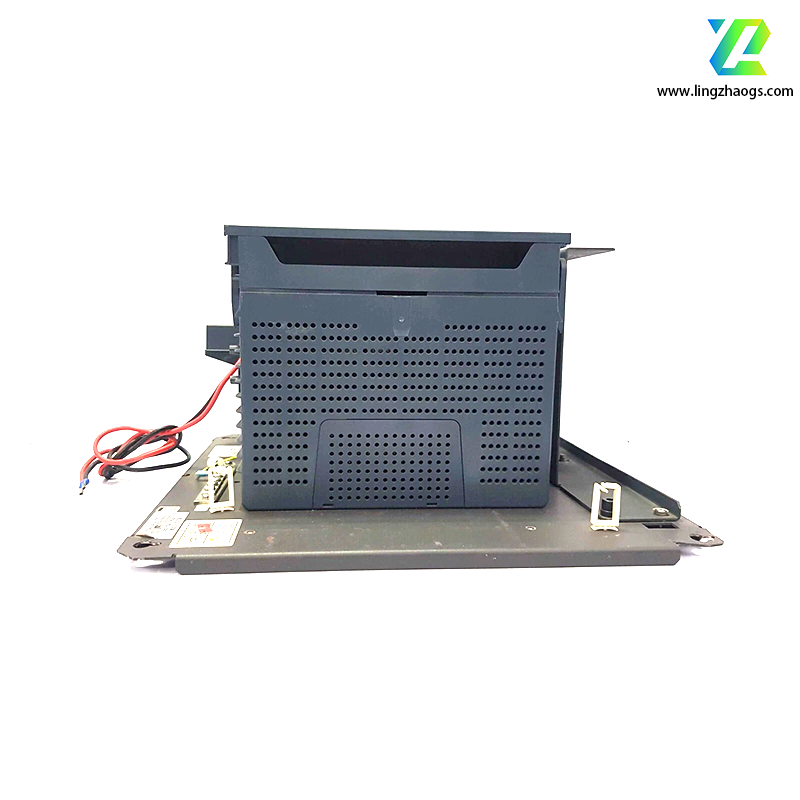

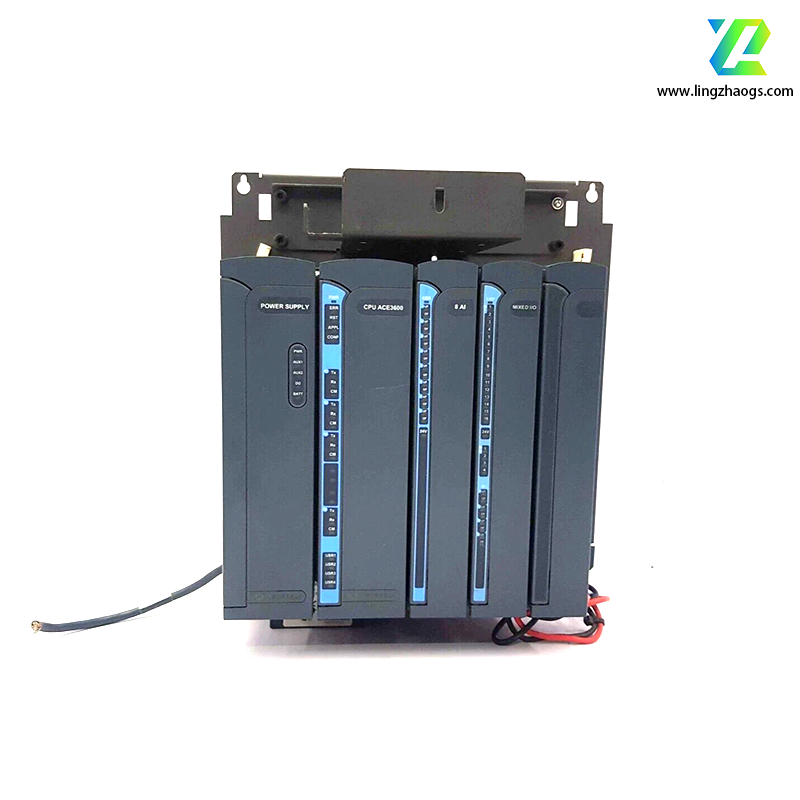

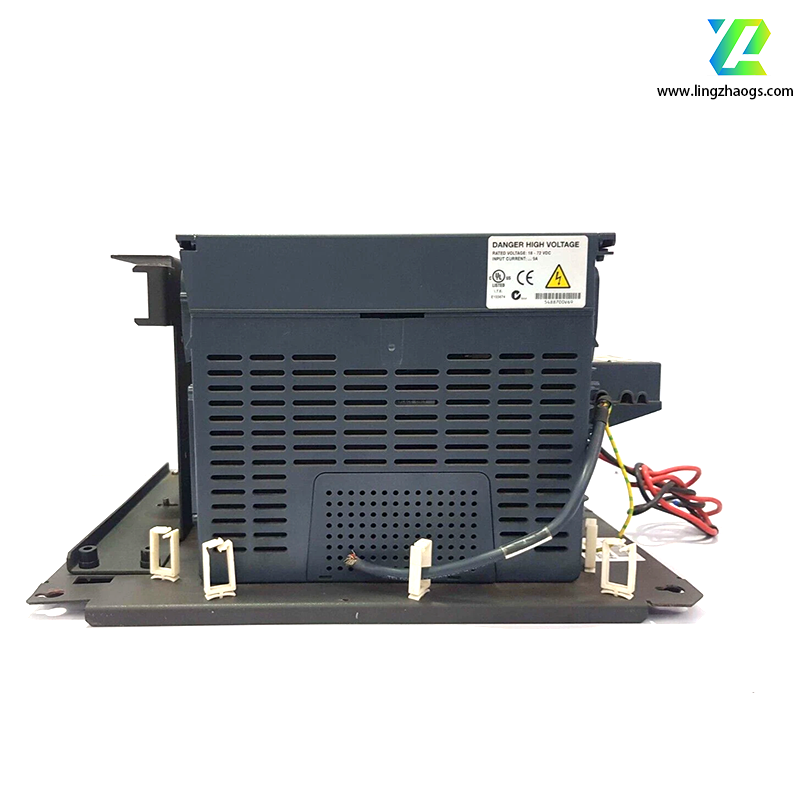

The Motorola ACE3600 is a remote terminal unit (RTU) that combines the local processing capability of a programmable logic controller (PLC) with the communication capacity of an RTU, creating an all-in-one high-performance unit. Here is the detailed information in English:
- It can be seamlessly integrated with PLCs, RTUs, and intelligent electronic devices (IEDs). With a powerful processor and versatile input/output modules, it is suitable for the most demanding supervisory control and data acquisition (SCADA) applications.
- This modular RTU can be expanded and upgraded with multiple, simultaneously operating communication ports, using a variety of industry-accepted protocols. Its communication capability is designed to support secure communications over local and wide area networks.
- Processor: It is equipped with a 32-bit processor running at 200 MHz, which can provide accurate data analysis and communication for critical SCADA applications to ensure optimal operation.
- Memory: It has 32 MB of flash memory and 128 MB of SDRAM, which can store programs, data, etc.
- Communication Interfaces:
- Serial Ports: It has configurable RS232 or RS485 ports. The RS232 port can be asynchronous with full flow control, with a speed of up to 230.4 kb/s, and can be used as a GPS receiver interface; the RS485 port is a two-wire multi-drop, with a speed of up to 230.4 kb/s.
- Ethernet Ports: It supports Ethernet 10/100 mb/s ports, which can realize high-speed network connection and data transmission. There are also expansion LAN switch modules with 8 onboard 10/100 mb/s Ethernet ports (auto-crossover).
- Other Ports: It has USB host ports and a USB device port. It also supports plug-in ports for radio modems, RS232 (sync/asynch), RS485, etc.
- Input/Output Modules: There are 24 different types of I/O modules available, and each RTU can support up to 110 I/O modules, which can be flexibly configured according to the needs of different sites.
- Power Supply: The operating voltage is 10.8 - 16 V DC.
- Software Support: It is equipped with the System Tool Suite (STS) programming tool, which has a user-friendly, menu-driven graphical user interface (GUI)摩托罗拉系统公司. This GUI allows program development and local and remote system setup and maintenance, reducing training time.
- Security Features: It supports a series of security options, including security enforcement policies, built-in firewalls, access control, role-based access controls, intrusion detection systems, application control software, encryption, unused port deactivation, time-window commands, etc., which can ensure the security and stability of SCADA systems.
- Water and Wastewater: It can be used to remotely control valves, pumping stations, and lift stations, and monitor pressure and flow along pipelines, reservoirs, and lift stations.
- Electric Power Distribution: It can remotely control load break switchgears, reclosers, and medium-voltage substations, and monitor loading conditions and fault locations through IEDs.
- Oil & Gas Pipelines: It is used to monitor flow and pressure, perform emergency shutdowns, and monitor remote exploration sites and storage reservoirs.
- Early Warning and Siren Control: It can perform routine tests and remotely activate warning sirens to announce emergency conditions to the public.
- Communication Network Monitoring and Control: It can remotely monitor critical equipment such as power systems, environmental control systems, and tower lights.
- Fire Station Alerting: It can quickly dispatch fire equipment and resources by remotely controlling lights, sirens, voice public address systems, doors, etc.
