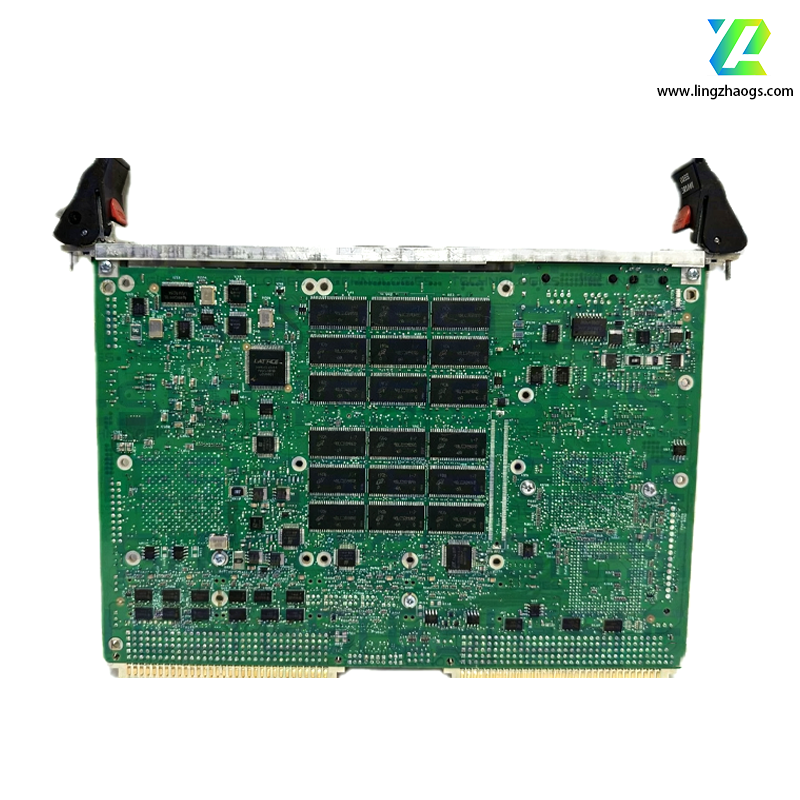

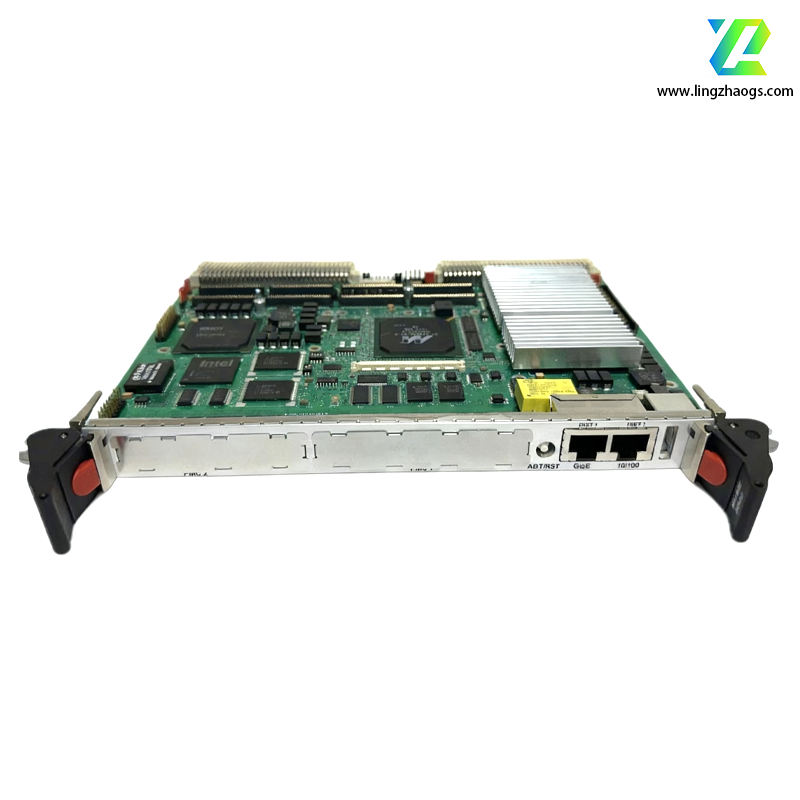

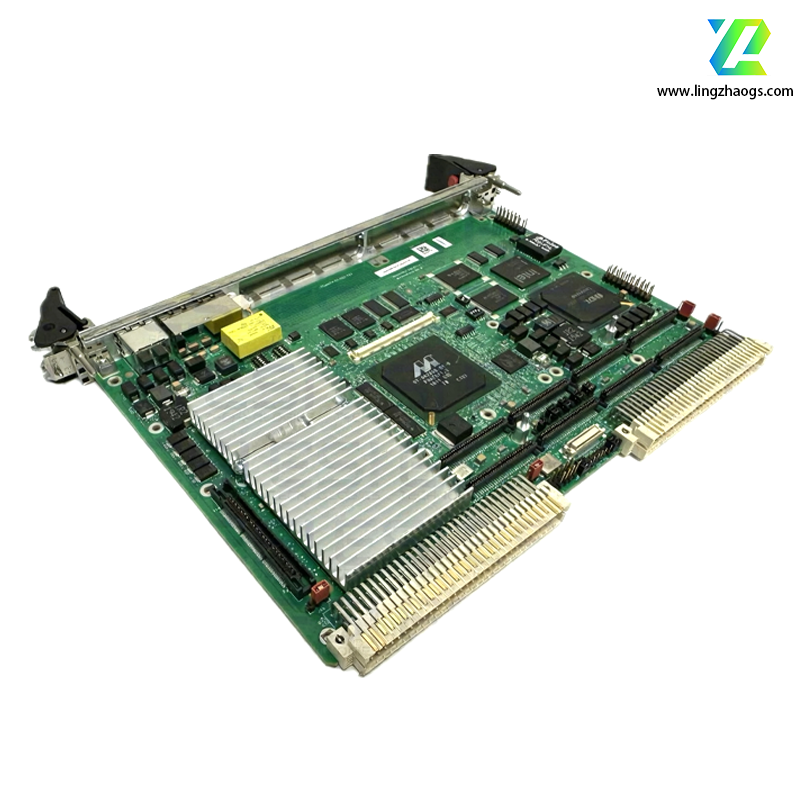

The Motorola MVME55006E-0163R is a high-performance VMEbus single-board computer, which is part of Motorola's MVME5500 series and is designed for embedded applications that require high-performance computing and I/O capabilities. Here is the detailed information in English:
The MVME55006E-0163R is designed to meet the needs of OEMs in various fields such as defense and aerospace, industrial automation, and medical imaging. It can provide reliable and powerful computing support for data-intensive applications.
It is equipped with a Motorola PowerPC 7457 processor running at a frequency of 1 GHz. This processor has high processing power, low power consumption, and scalability, and also has an Altivec coprocessor, which is suitable for high-performance computing applications.
It supports up to 512 MB of SDRAM memory and 2 GB of flash memory. This allows the board to handle a certain amount of data processing and storage tasks, and meet the requirements of some applications for memory capacity.
It has a SATA interface and supports SSD or HDD, which can provide users with different storage options according to their needs.
- Ethernet Interface: It provides a gigabit Ethernet interface and an additional 10/100 Base-TX Ethernet interface, which can meet the needs of different network connection speeds and are convenient for connecting to local area networks or other network devices for data transmission.
- Serial Port: It is also equipped with two serial ports, which can be used for communication with other devices that support serial communication, such as some industrial control equipment, sensors, etc.
It has dual independent 64-bit PCI buses, and each PCI bus has a PMC (PCI Mezzanine Card) site that supports cards running at 33 or 66 MHz. This provides good expansion capabilities for the board, and users can expand the functions of the board according to their needs, such as adding additional communication interfaces, data acquisition functions, etc.
It supports a variety of operating systems, such as VxWorks, Linux, and QNX. Users can choose the appropriate operating system for development and application according to their specific application scenarios and development habits.
- Form Factor: It is in a VME (Versa Module Eurocard) form factor, which is a standard form factor, with a compact structure and convenient installation.
- Operating Temperature: It can usually work in an industrial-grade temperature range, generally 0°C to 55°C, which can adapt to different environmental conditions in industrial applications.
It is widely used in industrial control, data acquisition, communication, military, aerospace, and other fields. For example, it can be used to control various industrial equipment such as PLCs and robots in industrial automation; it can be used for data collection and analysis and processing of industrial field data; in the military and aerospace fields, it can provide computing support for various control systems and data processing tasks.
