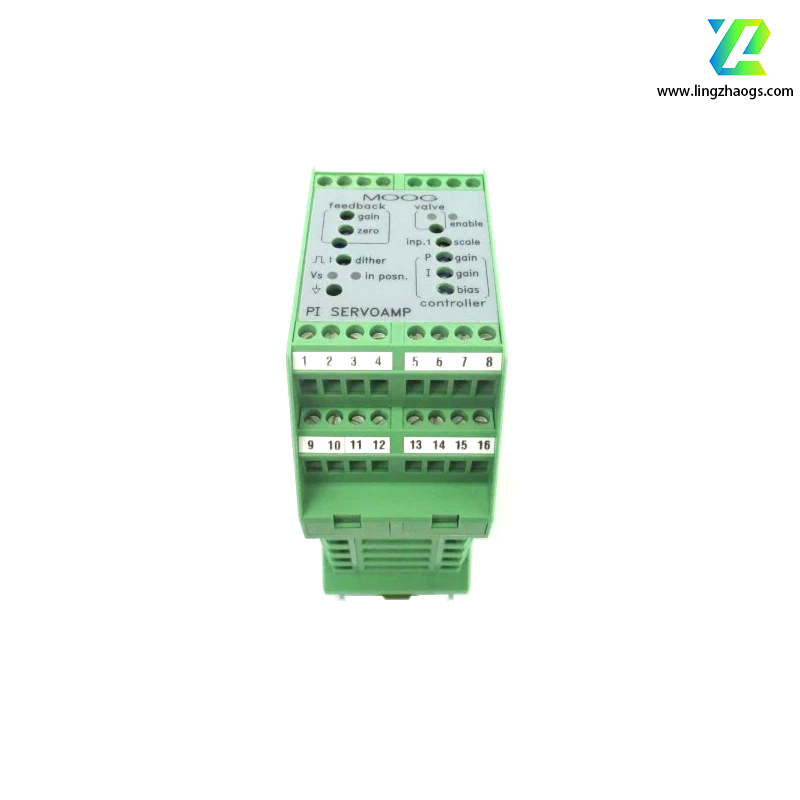

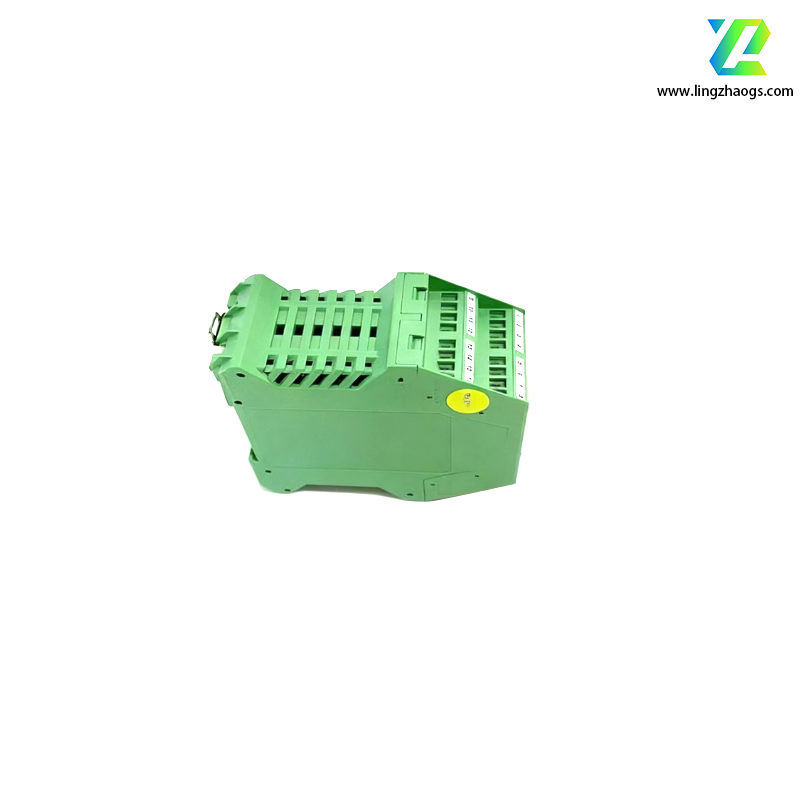

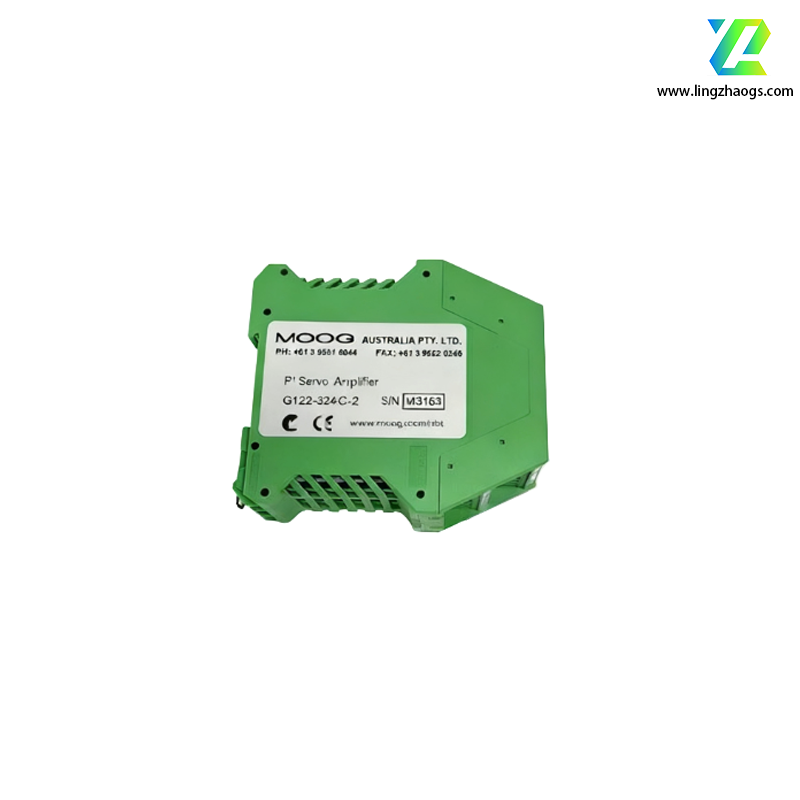

The Moog G122-824-002 is a P-I servo amplifier designed for closed-loop applications that require proportional and/or integral amplification. Here are the detailed contents:
- Manufacturer: Moog
- Product Type: Servo amplifier
- Control Type: Closed-loop control
- Input Voltage: 12 - 24VDC
- Output Voltage: 0 - 10VDC
- Output Current: 0 - 20mA
- Input Signals: Accepts three input signals, including two single-ended signals (可通过开关选择 4-20mA 或 ±10V) and one differential signal with zero and gain
- Control Modes: Proportional (P), integral (I), or proportional-integral (P-I) can be selected by an internal switch
- Frequency Response: 400Hz
- Resolution: 16-bit
- Operating Temperature Range: -10°C to 50°C
- Storage Temperature Range: -40°C to 85°C
- Relative Humidity: 5% - 95%
- Physical Dimensions: 100mm×80mm×20mm
- Weight: 200g
- Enclosure Material: Aluminum alloy
- Mounting Method: DIN-rail mounting
- Flexible Control Options: The internal selector switch allows users to choose between P, I, or P-I control modes, and many characteristics of the amplifier can be selected through internal switches, making it suitable for a variety of different applications.
- User-friendly Front Panel: Equipped with LED indicators and test points, and the trim potentiometers on the front panel enable quick and easy setting and help with troubleshooting.
- High Performance: Adopts advanced electronic technology and algorithms, which can efficiently process various data and control commands, improving the system's response speed and operation efficiency.
- Compact Design: The servo amplifier is installed in a compact DIN-rail mounting enclosure, which saves space and is easy to install and maintain.
- Industrial Automation: Used to control automated equipment such as robotic arms, machine tools, and assembly lines to improve productivity and product quality.
- Aerospace and Defense: Performs high-precision tasks such as flight control surfaces, missile guidance systems, and satellite positioning to ensure flight safety and accuracy.
- Automotive Manufacturing: Applied in the automotive manufacturing field, such as steering systems, suspension control, and electric power steering, to improve driving comfort and safety.
