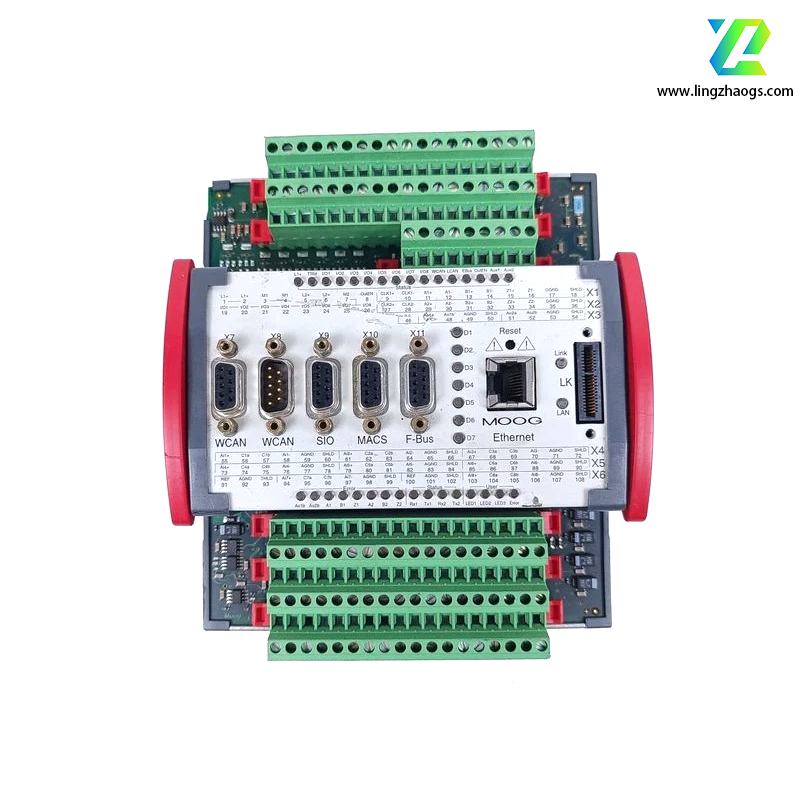

The Moog D136-001-008 is a high-performance multi-axis motion controller, which is mainly used in industrial automation scenarios. Here are the detailed contents:
- Manufacturer: Moog
- Product Type: Motion controller
- Series: MSC II series
- Control Type: Closed-loop control
- Input Voltage: 24VDC
- Control Axes: Up to 8 axes
- Processor: Dual-core 1.8 GHz industrial CPU
- Memory: 2GB RAM, 16GB Flash
- Communication Protocols: EtherCAT, PROFINET, CANopen
- Control Interface: Ethernet
- Maximum Output Current: 5A per axis
- Operating Temperature Range: -20°C to +70°C
- Dimensions: 200mm x 150mm x 50mm (Some sources show 180mm x 130mm x 100mm)15
- Weight: 1.5kg (Some sources show 1.2kg)15
- Feedback Type: Encoder-based feedback
- High-precision Control: Equipped with advanced control algorithms, it can achieve high-precision position, speed, and torque control.
- Flexible Programming: Supports the IEC 61131-3 standard programming languages, and the Moog Axis Control Software (MACS) provides a powerful development environment, allowing users to customize programming according to specific needs.
- Integrated PLC Function: Has an integrated PLC function, which simplifies system design and can realize logic control, sequence control, etc..
- Fast Response: The scanning cycle can be as short as 400μs, which can meet the needs of highly dynamic applications.
- Industrial Automation: Widely used in metal forming equipment, plastic machinery, automation assembly lines, etc., for precise control and monitoring of equipment.
- Robotics: Can be used as the core component of the robot control system to achieve precise motion and positioning of the robot.
- Aerospace and Military: Applied in some high-precision control scenarios in the aerospace and military fields due to its high-reliability and high-precision characteristics.
- Automotive Industry: Used in automotive manufacturing equipment for precise motion control and quality inspection.
