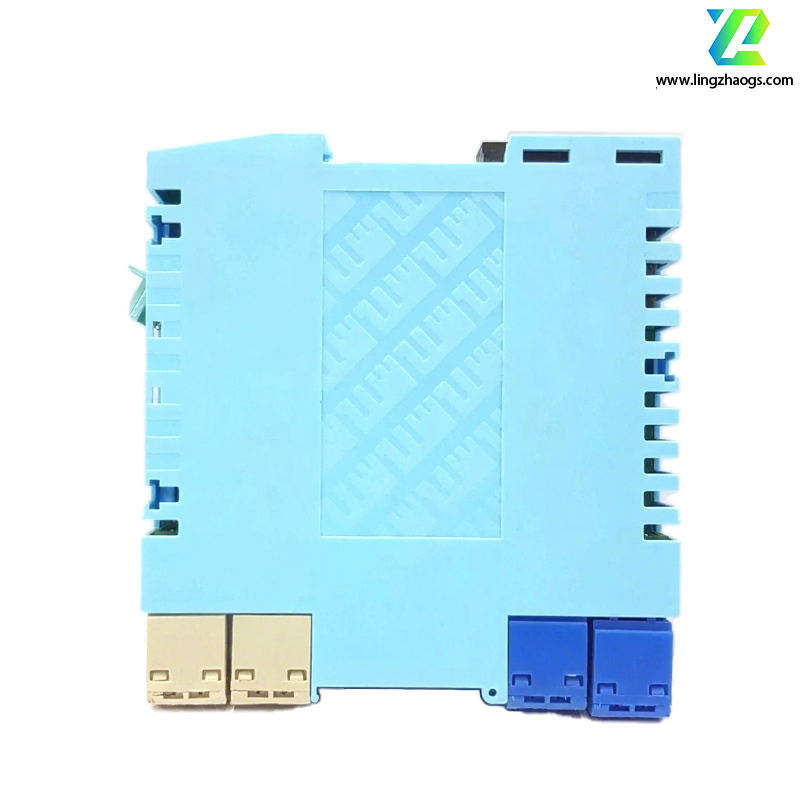

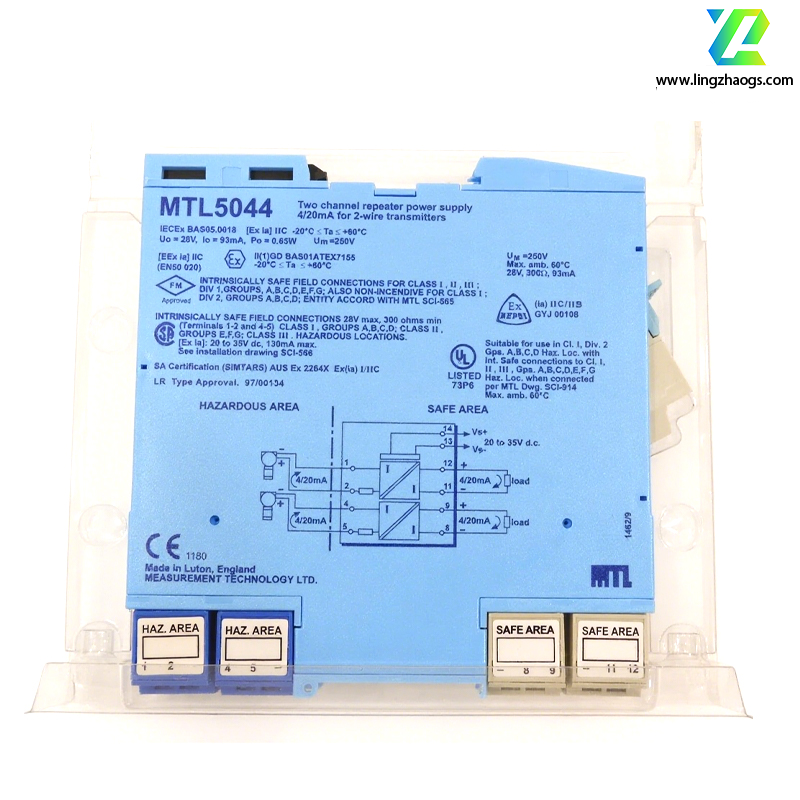

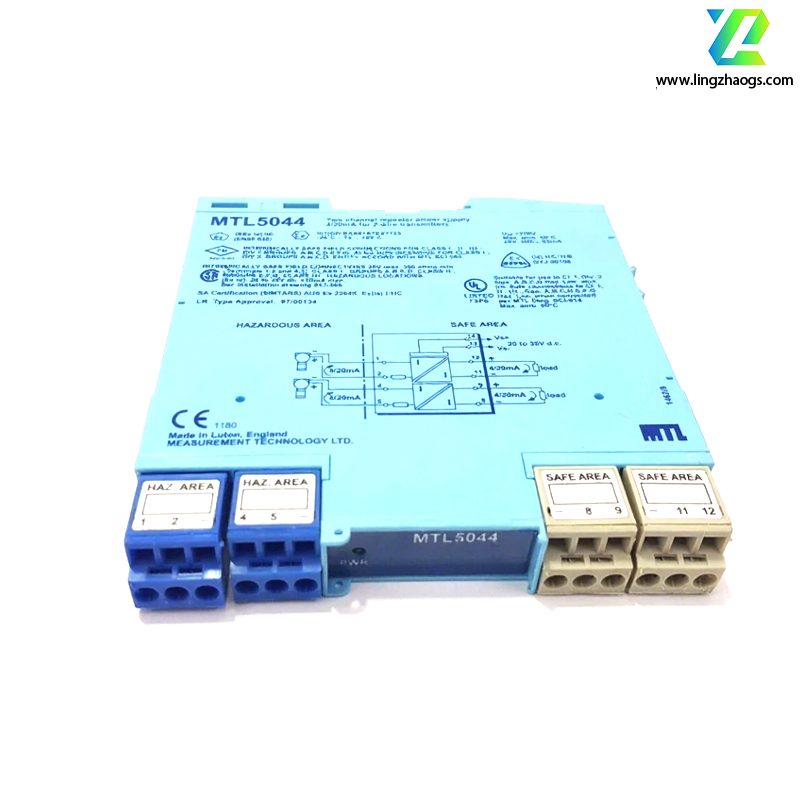

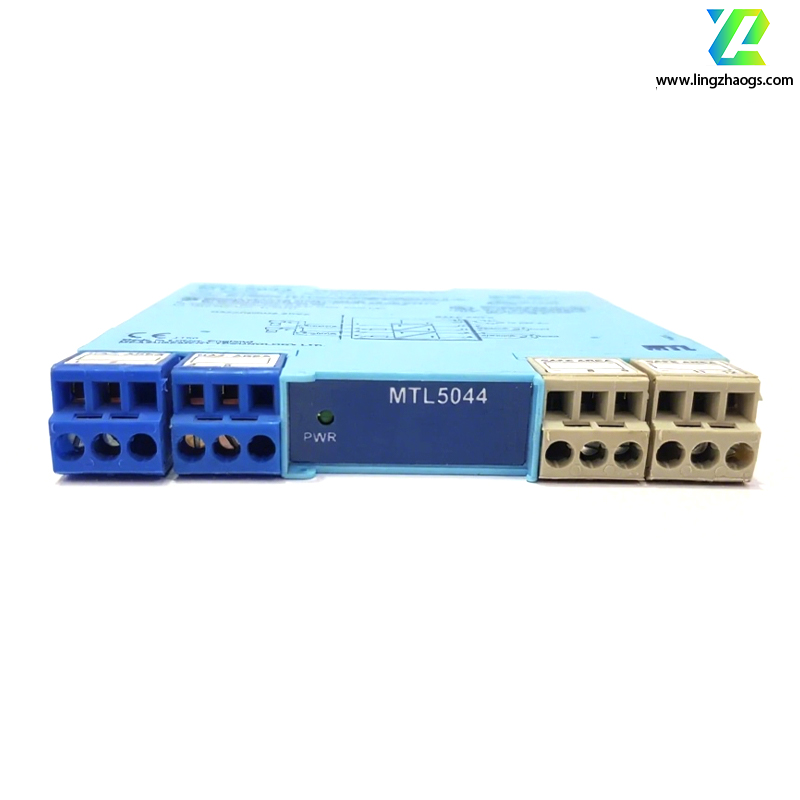

The MTL5044 is a dual-channel relay power supply, primarily designed for 2-wire transmitters. Below is its detailed introduction:
- Power Supply Voltage: 20-35VDC.
- Intrinsically Safe (IS) Loop Parameters:
- Maximum voltage Uo: 28V
- Maximum current Io: 93mA
- Maximum power Po: 0.65W
- Maximum Voltage for Non-Intrinsically Safe Loop (Um): 250V.
It has two channels, each capable of providing a 4-20mA output signal and stabilizing to within 10% of the final value in 250μs.
It complies with the IECEx BAS 05.0018 (Ex ia) IIC standard and has also obtained the II (1) GD BAS 01 ATEX 7155 certification. It is suitable for hazardous locations such as Zone 0 and Zone 1 in IIC group explosive gas environments.
-20℃ to +60℃.
It adopts a DIN rail mounting method, with dimensions of 110x104x16.2mm, facilitating installation and maintenance.
Approximately 140g.
