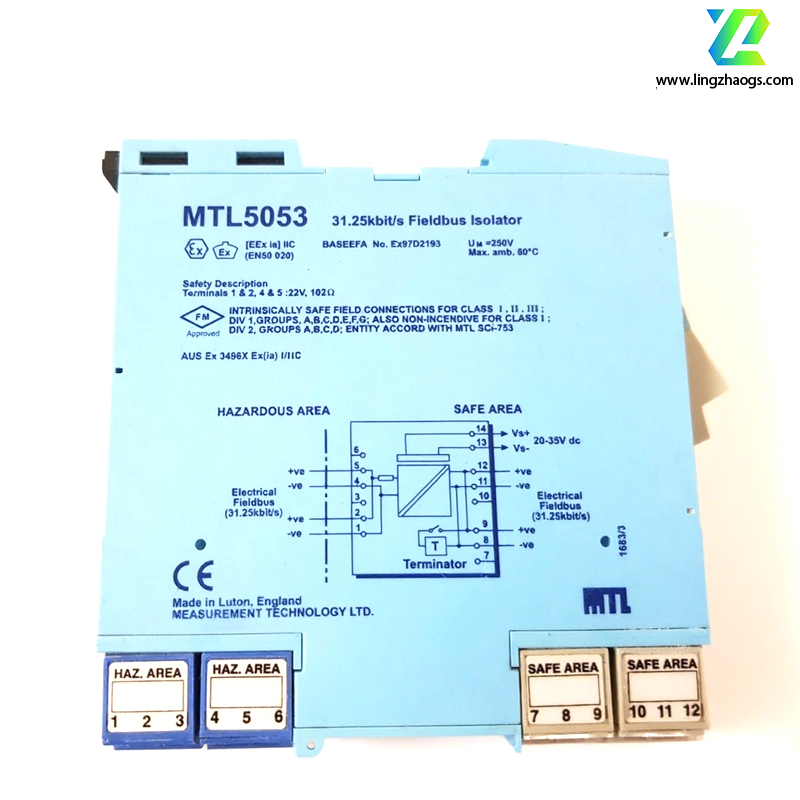

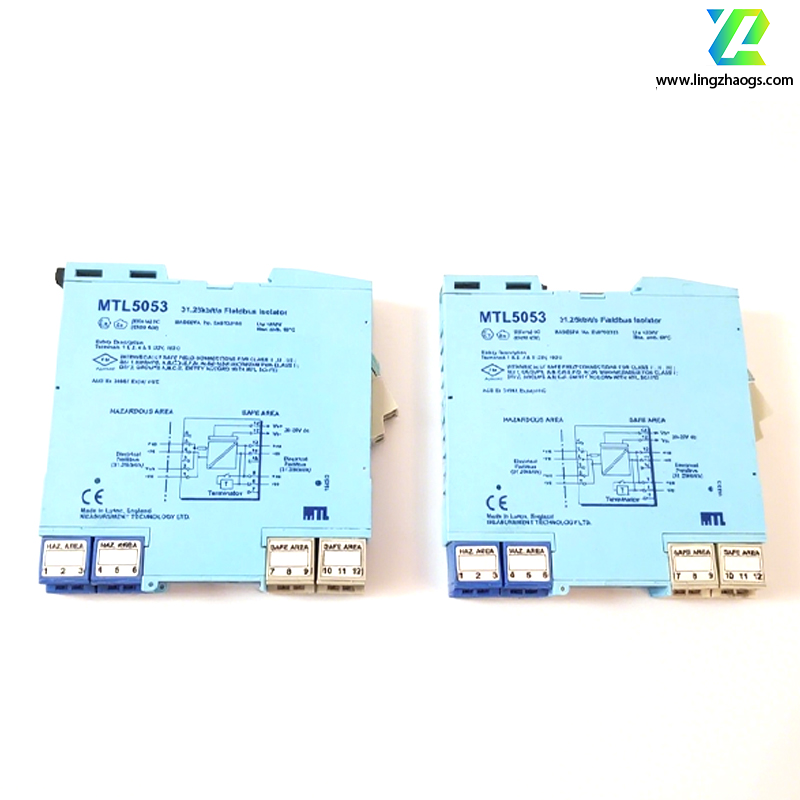

The MTL5053 is an isolator and power supply device designed for 31.25kbit/s fieldbus systems. Below is its detailed introduction:
- Signal Input and Output: The input signal is 4-20mA, and the output is an isolated 4-20mA signal.
- Power Supply Requirements: The operating power supply is 24VDC (±20%).
- Performance Parameters: The accuracy is ±0.05% of the full scale, and the operating temperature range is -40℃ to +70℃.
- Isolation Characteristics: Provides electrical isolation between field devices and control systems to enhance system safety, with an isolation voltage up to 250V RMS.
- Communication Support: Supports 31.25kbit/s fieldbus communication and can extend the 31.25kbit/s (H1) fieldbus network to hazardous areas.

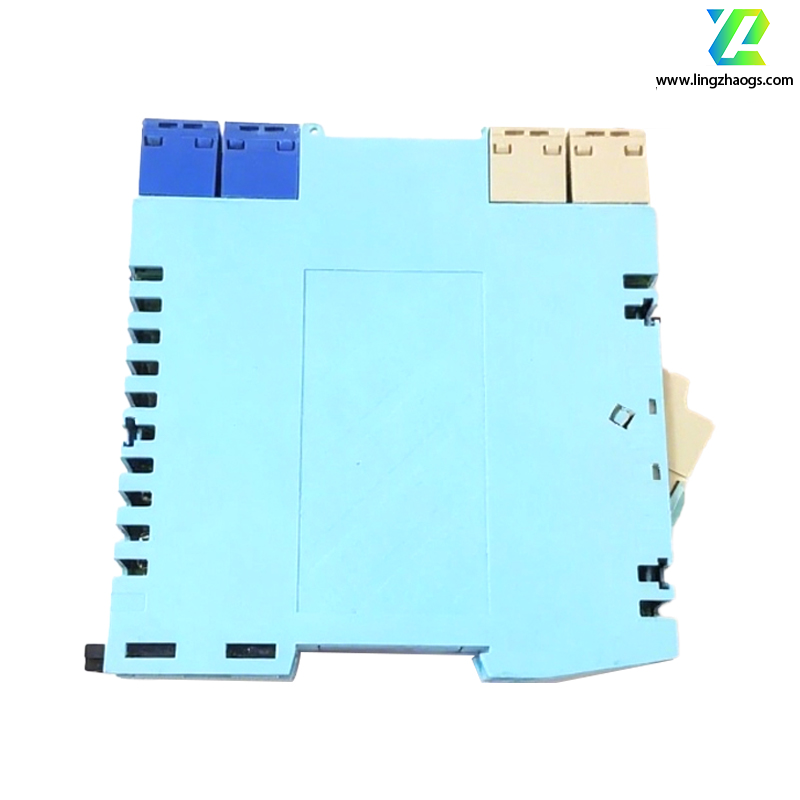

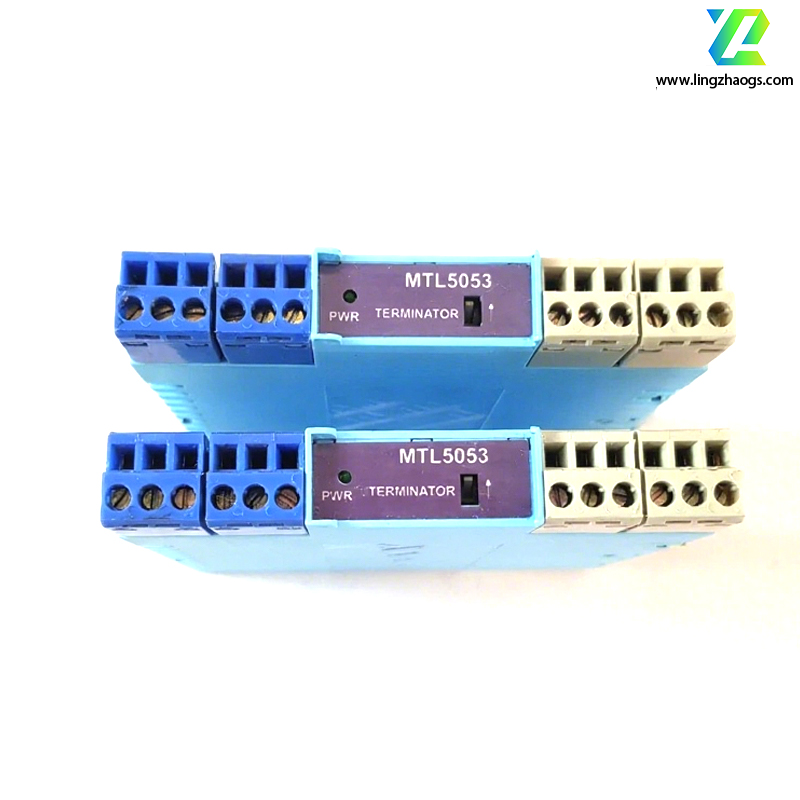

- Mounting Method: Features a compact and robust design for easy installation and maintenance. For installations with short bus lengths in safe areas, the internal terminator can be enabled via the switch on the top of the module.
- Explosion-Proof Certifications: Holds various explosion-proof certifications including ATEX, IECEx, UL, CUL, FM, and DNV, making it suitable for use in hazardous areas.
- Application Fields: Widely used in manufacturing, oil and gas, chemical, and pharmaceutical industries for fieldbus communication and power distribution in process control systems.
