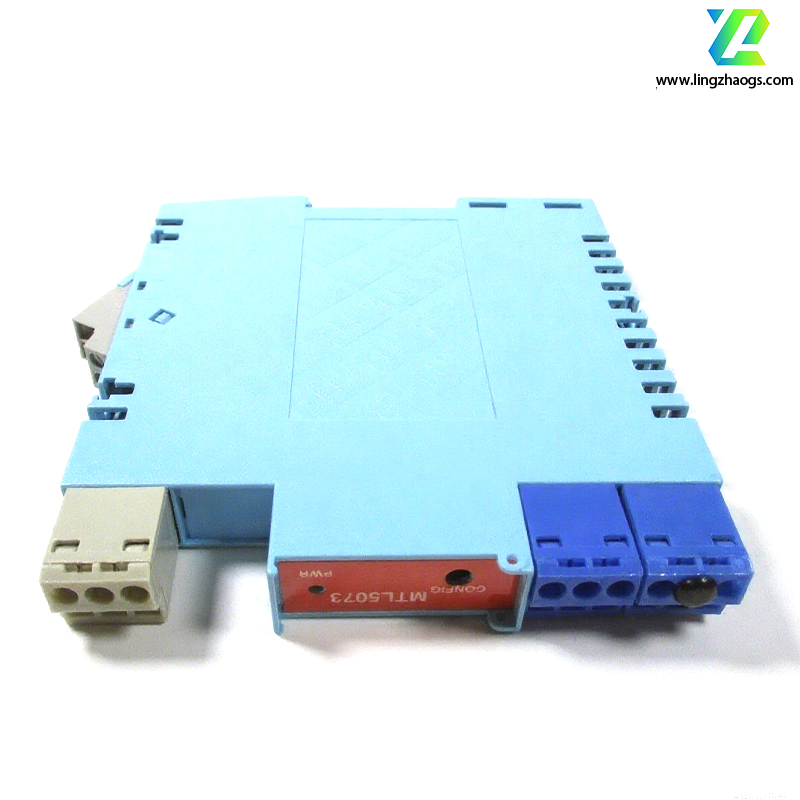

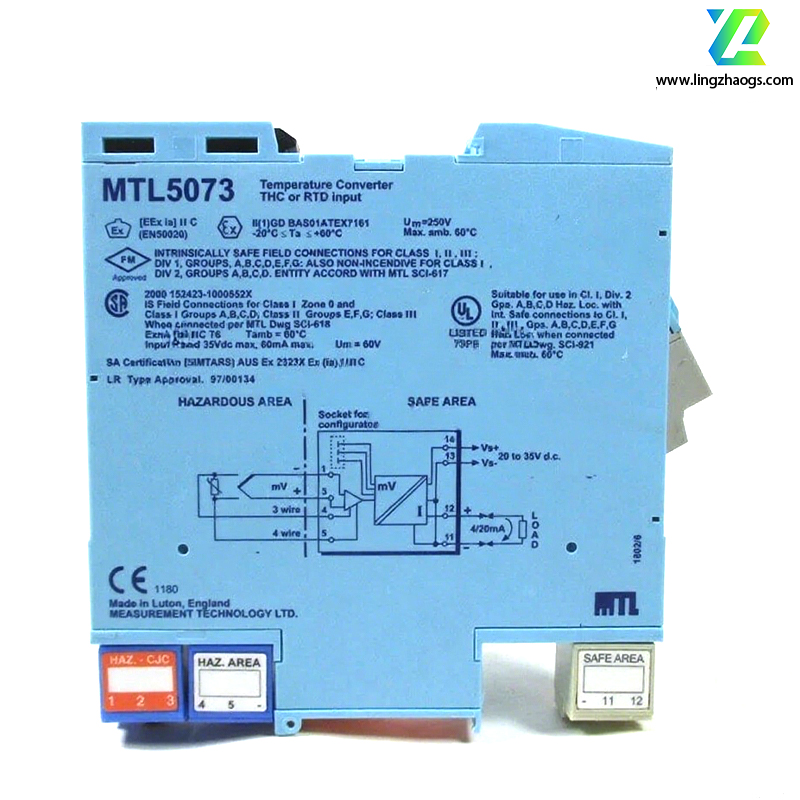

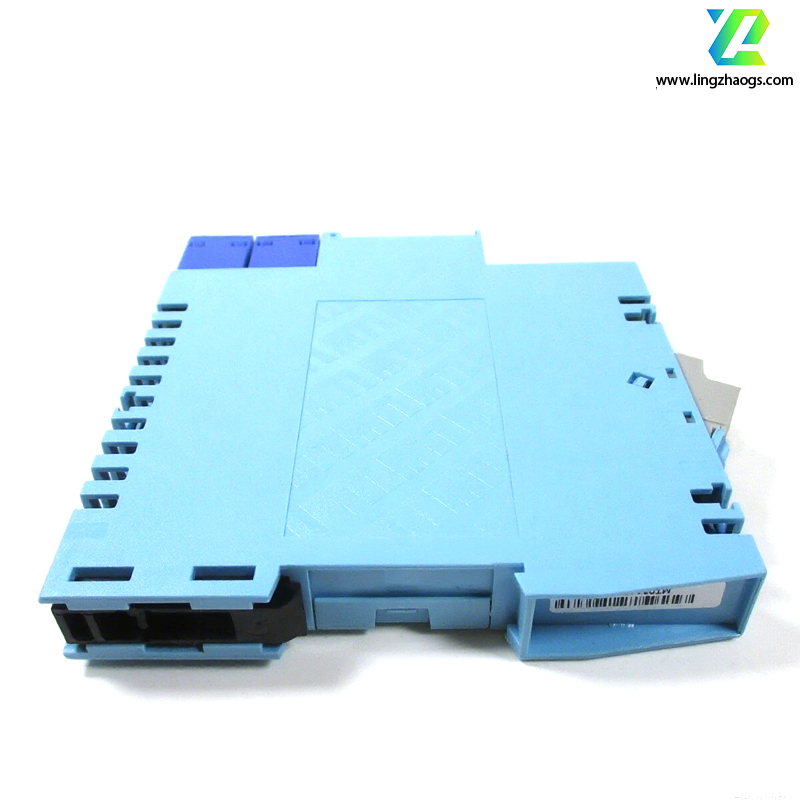

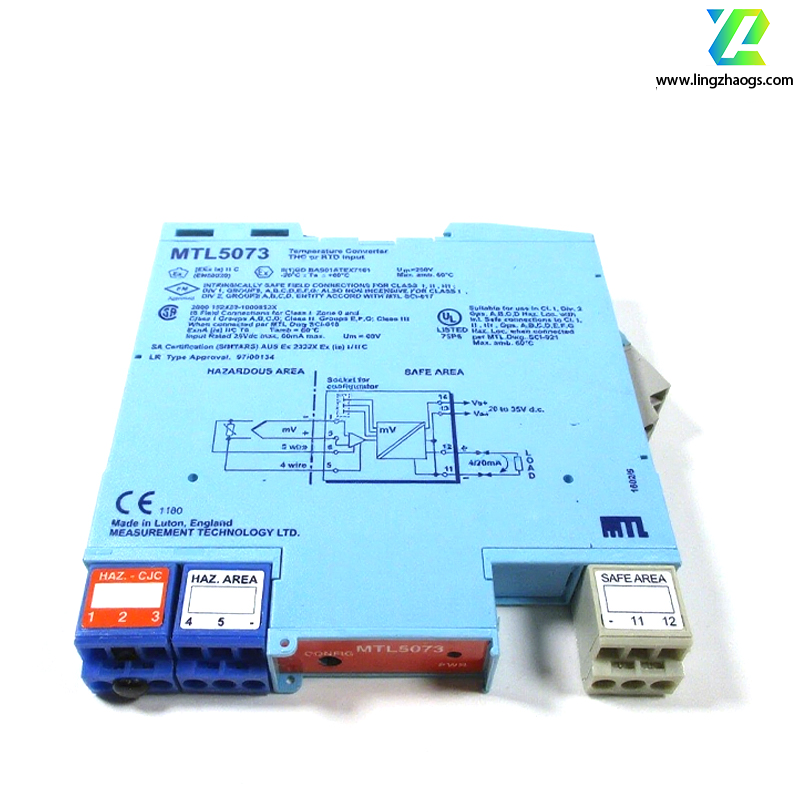

The MTL5073 is an isolator that has been discontinued, with its replacement model being the MTL5575. The relevant information for the MTL5073 is as follows:
- Number of Channels: Single channel.
- Input/Output Signal Range: Typically 0-20mA, and also supports 4-20mA digital communication.
- Isolation Strength: 1500V DC/AC between input, output, and power supply.
- Supply Voltage: 20-35V.
- Digital Signal Range: 100Hz - 10kHz.
- Maximum Impedance:
- 650Ω for conventional transmitters.
- 220Ω - 650Ω for smart transmitters.
- Temperature Drift: 1μA/℃.
- Operating Temperature Range: -20℃ - +55℃.
- Humidity Range: 5% - 95% RH.
