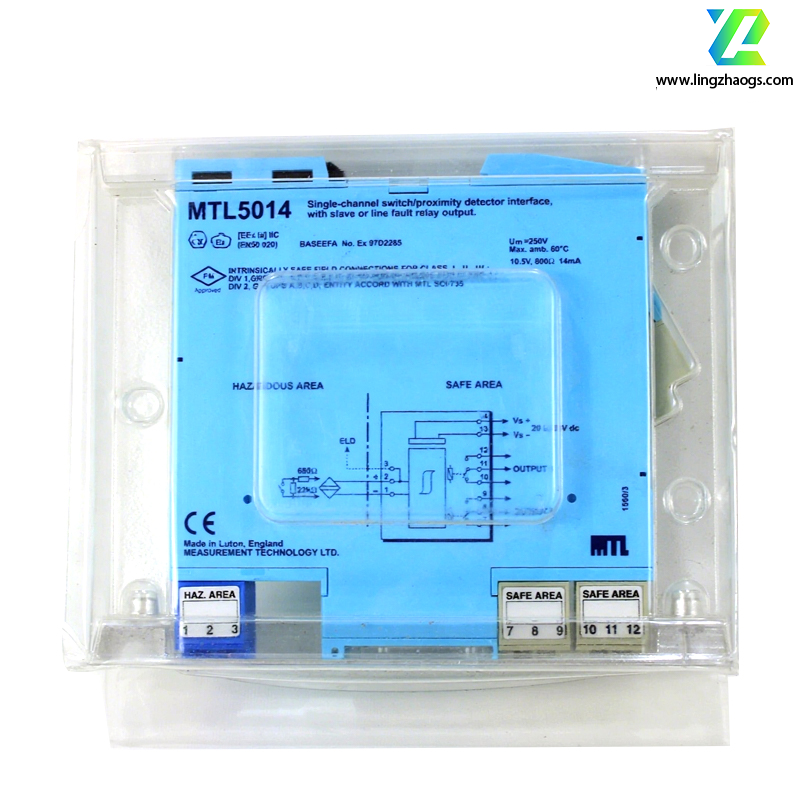

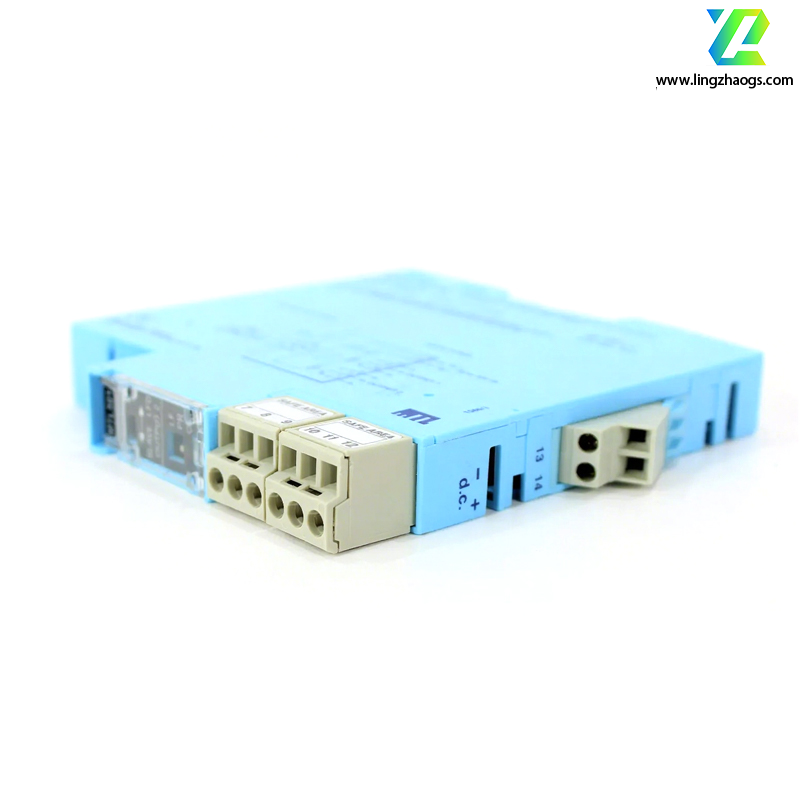

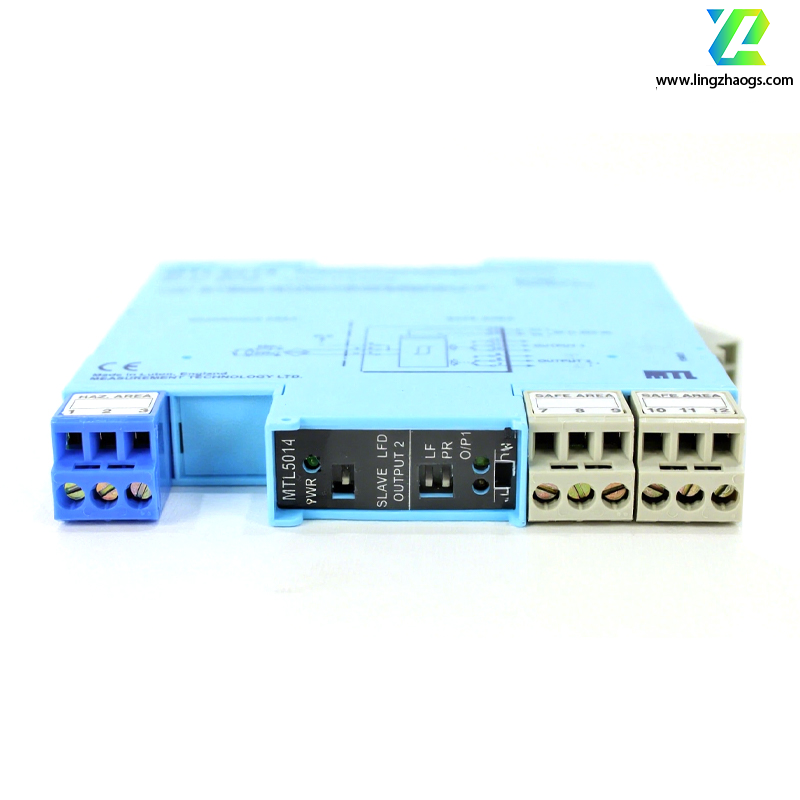

The MTL5014 is an isolating safety barrier with 1 input and 2 outputs, mainly used for the transmission and control of contact or proximity switch signals. It features output polarity reversal and Line Fault Detection (LFD) functions. Below is its specific introduction:
It has 1 input channel and 2 output channels. The output is in the form of relay contact output, using 1x SPDT (Single-Pole Double-Throw) relay.
It supports AC 250V/2A and DC 40V/2A.
- It is equipped with an output polarity reversal function, which can be selected via the top switch.
- It also has a Line Fault Detection (LFD) function. When an open-circuit or short-circuit fault is detected in the on-site circuit, the relay will de-energize, and the fault status will be displayed via an LED indicator.
It is suitable for connecting switch or proximity sensor signals in hazardous areas to equipment in safe areas. It ensures the safe transmission of signals from hazardous areas to safe areas while preventing hazardous energy from entering hazardous areas.
