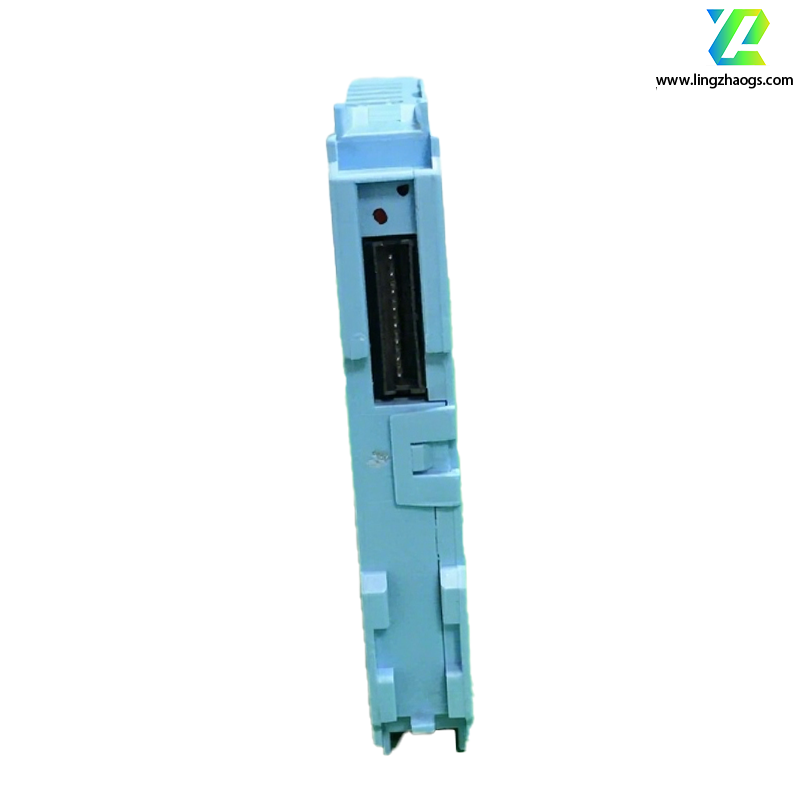

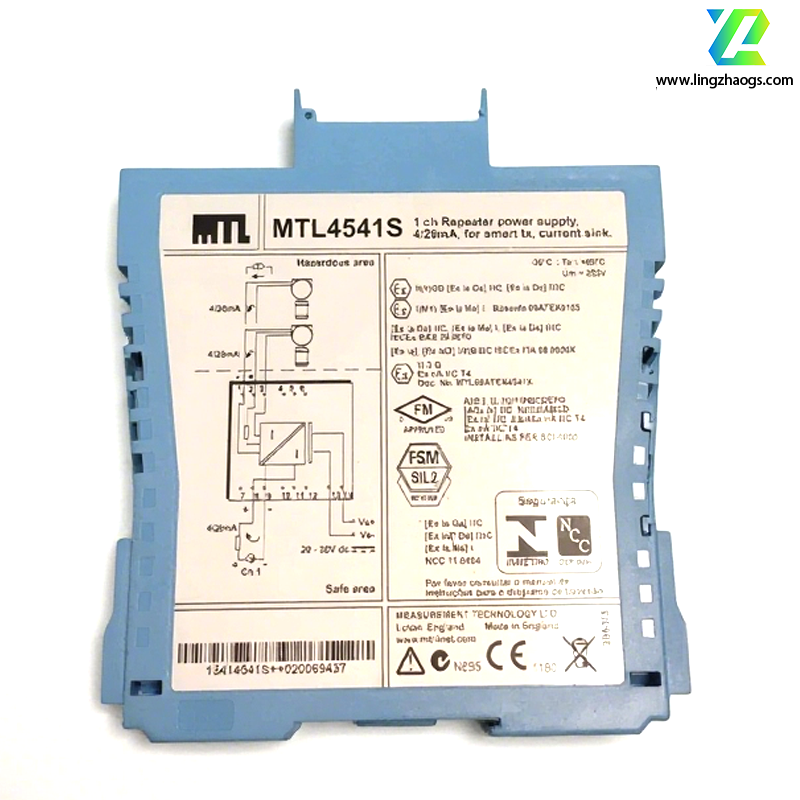

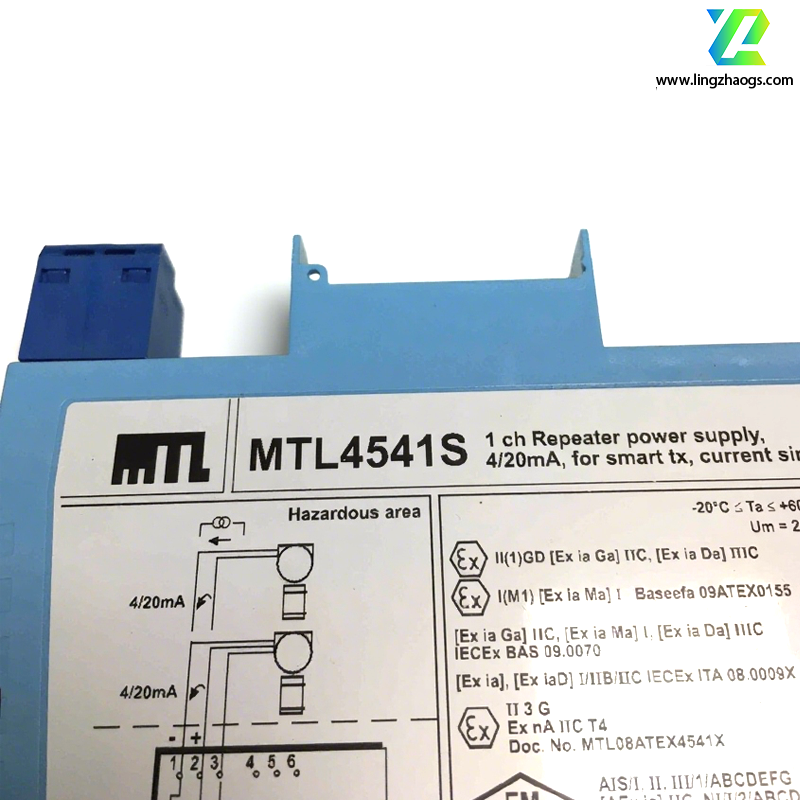

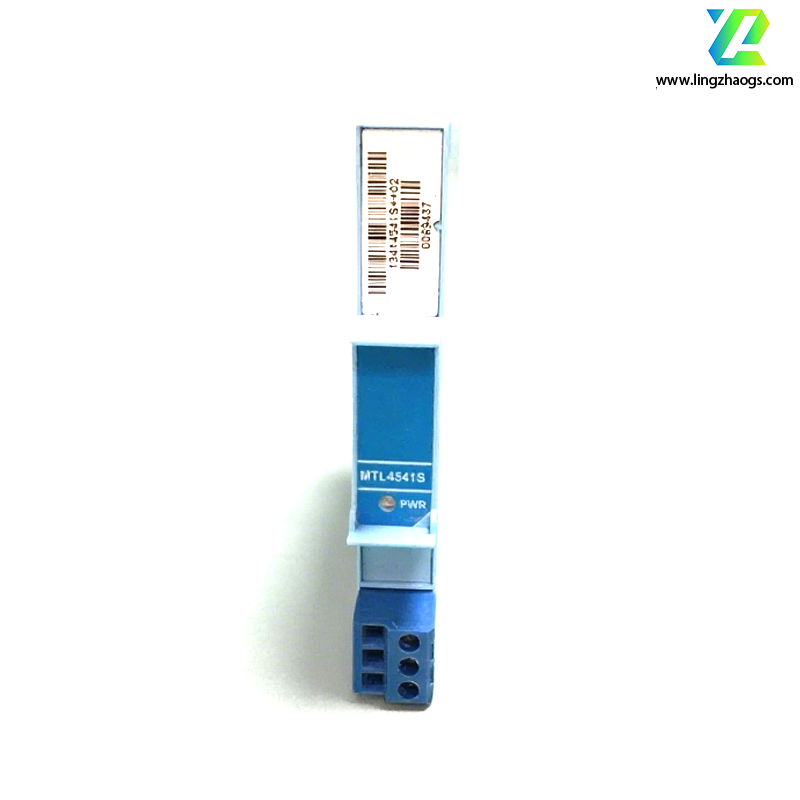

The MTL4541S is an isolating safety barrier. In addition to the above content, some of its supplementary parameters are as follows:
- Explosion-Proof Marking: (Ex ia Ga) II C
- Compliant Standards: GB 3836.1-2010, GB 3836.4-2010, GB 3836.20-2010
- Maximum Voltage for Non-Intrinsically Safe Terminals (Um): 250V
- Maximum Output Voltage (Uo): 1.1V
- Maximum Output Current (Io): 53mA
- Maximum Output Power (Po): 15mW
- Internal Equivalent Capacitance (Ci): 0μF
- Internal Equivalent Inductance (Li): 47.8mH
