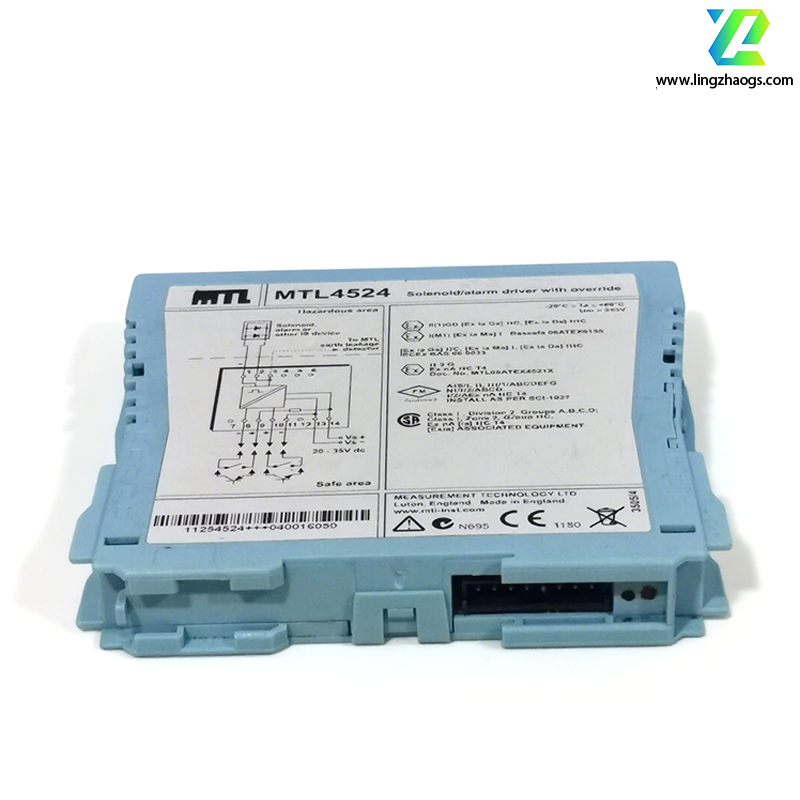

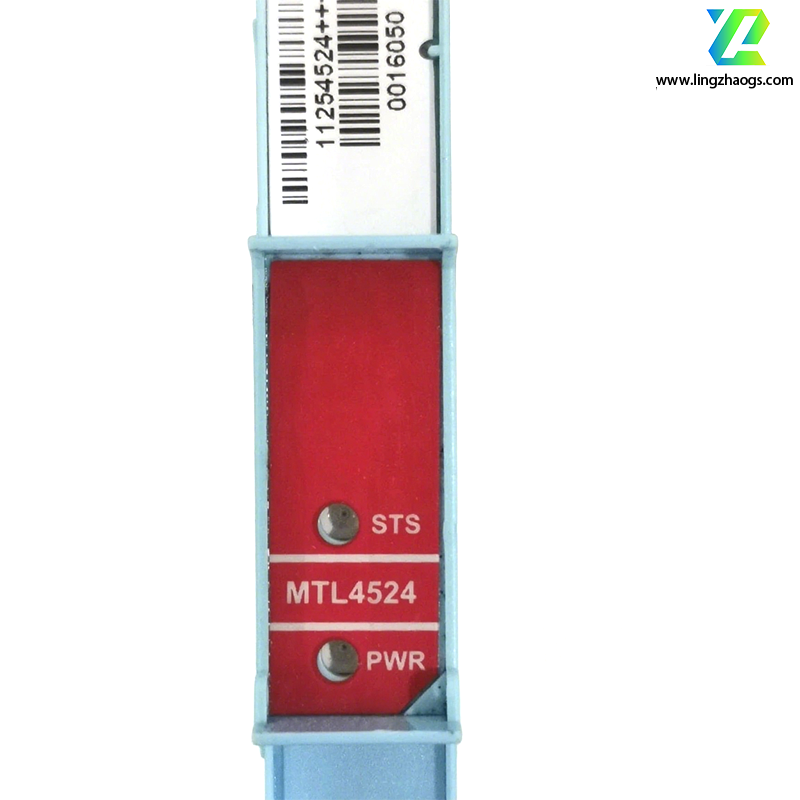

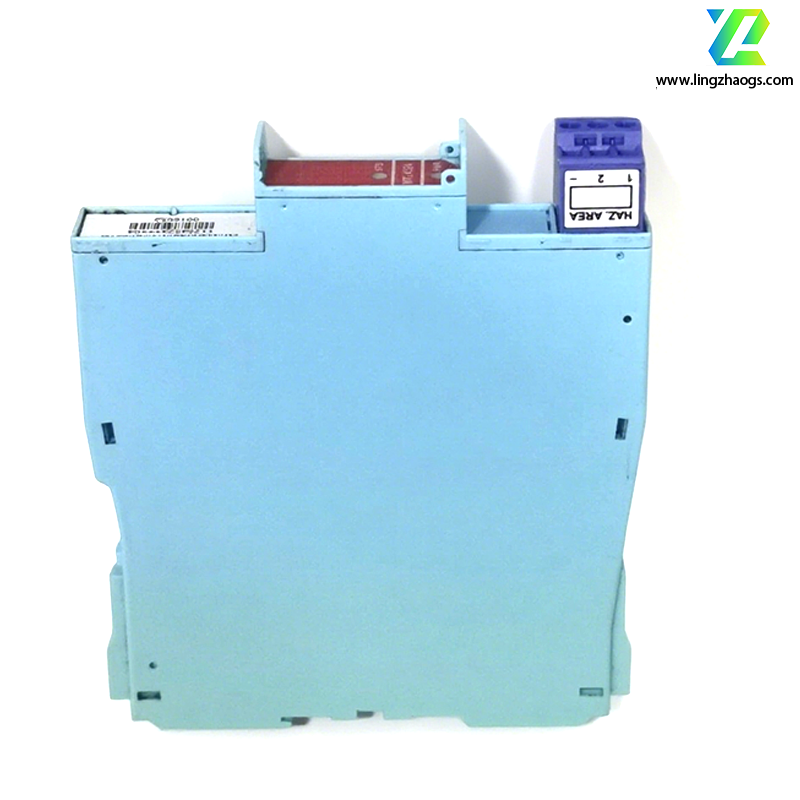

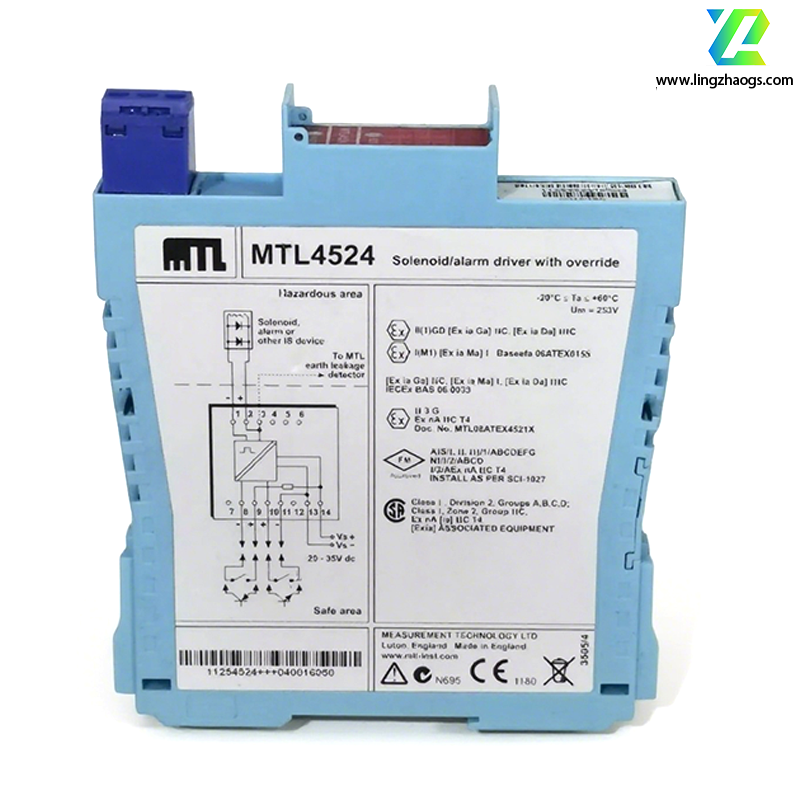

The MTL4524 is a switch-operated solenoid valve driver, belonging to the MTL4500 series of isolating safety barriers. Below is its specific introduction:

It can control the on/off of low-power devices (such as solenoid valves, alarms, and LEDs) in hazardous areas through dry contact switches or logic signals in safe areas. It can also disable the output by connecting a switch or logic signal from another safe area.

It can be used in Zone 0, IIC Group, T6 hazardous areas, as well as Division 1, Group A hazardous locations.

Power supply range: 20-35V DC

At 24V, the power consumption is 0.72W.

The output can drive loads such as solenoid valves (specific parameters are not clearly provided). Its derivative model, MTL4524S, is equipped with a 24V override function.

It features three-terminal isolation (input, output, and power supply) with high isolation performance and strong anti-interference capability, complying with FSM certification standards.
