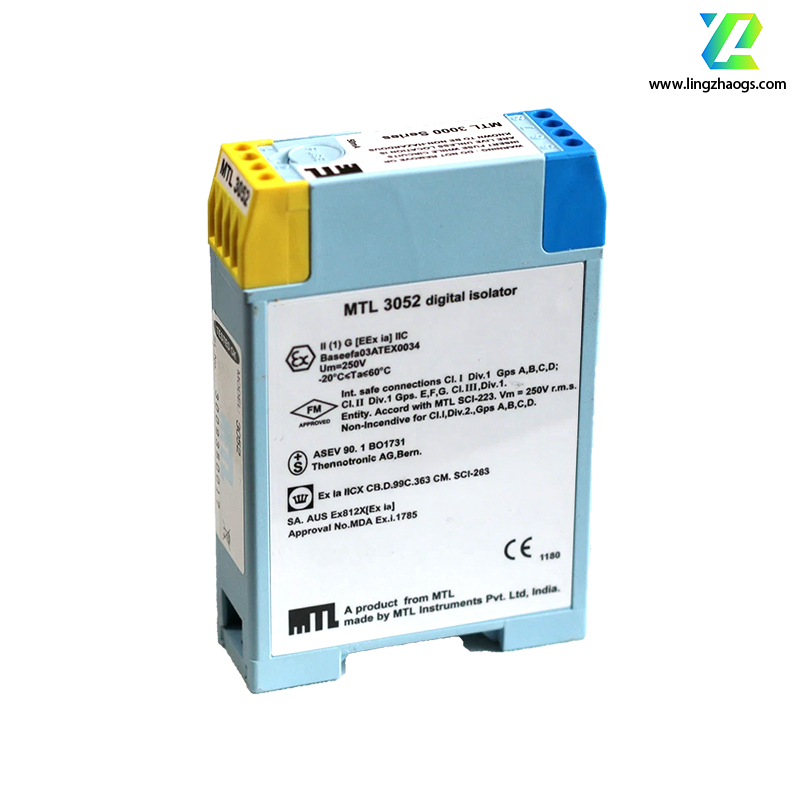

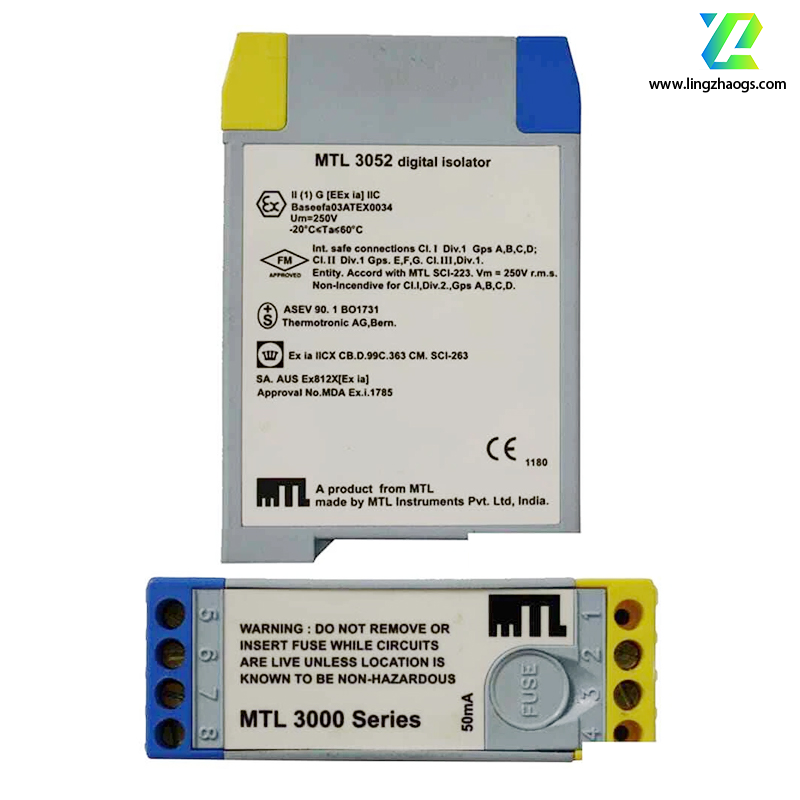

The MTL3052 is a digital isolator manufactured by MTL Instruments. Below is its detailed information:
Digital Isolator
Single-channel, fully floating
- Can be used in Zone 0, IIC Group, T4-T6 hazardous areas (with proper certification).
- Also suitable for Division 1, Group A hazardous locations.
- In dual-bus systems, multiplex transmitters using the low-resistance outputs of two MTL3052 units can be used in Zone 0, IIB Group, T4-T6 (Division 1, Group C hazardous locations).
DC to 10kHz
Minimum output voltage: [Input Voltage - (0.25 × Current (mA))] V
Peak-to-peak ripple of input and output circuits: Less than 1mA
Maximum power consumption: 160mW at 12V voltage and 20mA signal
- 50mA, 5×20mm glass fuse
- Complies with DIN 41571 Sht. 2 standard
- Time-lag (M)
- Equipped with optional "fail-safe" ground fault protection; enabled by connecting Terminal 8 to MTL 2220.
- The device continues to operate if any line fails.
- Open-circuit voltage (Voc): 15V
- Short-circuit current (Isc): 83.3mA
- Allowable distributed capacitance (Ca): 0.75μF
- Allowable distributed inductance (La): 5.2mH
1.5kg
