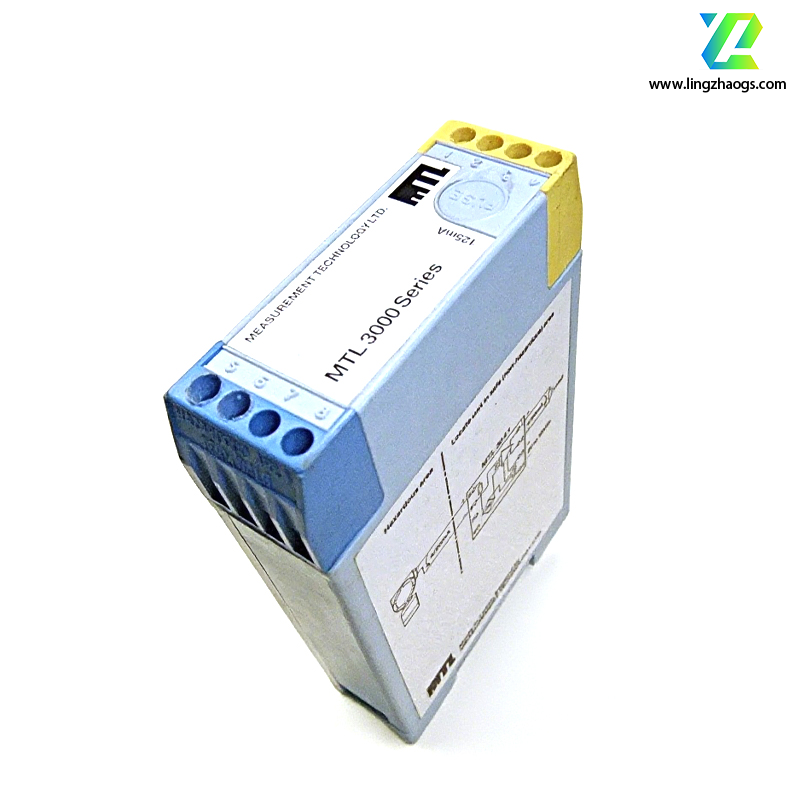

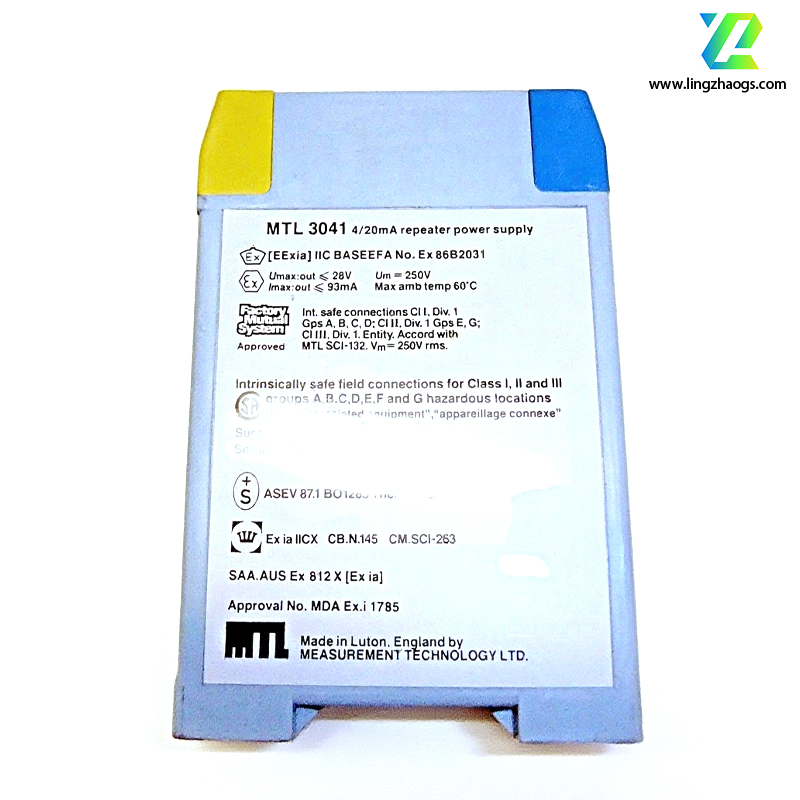

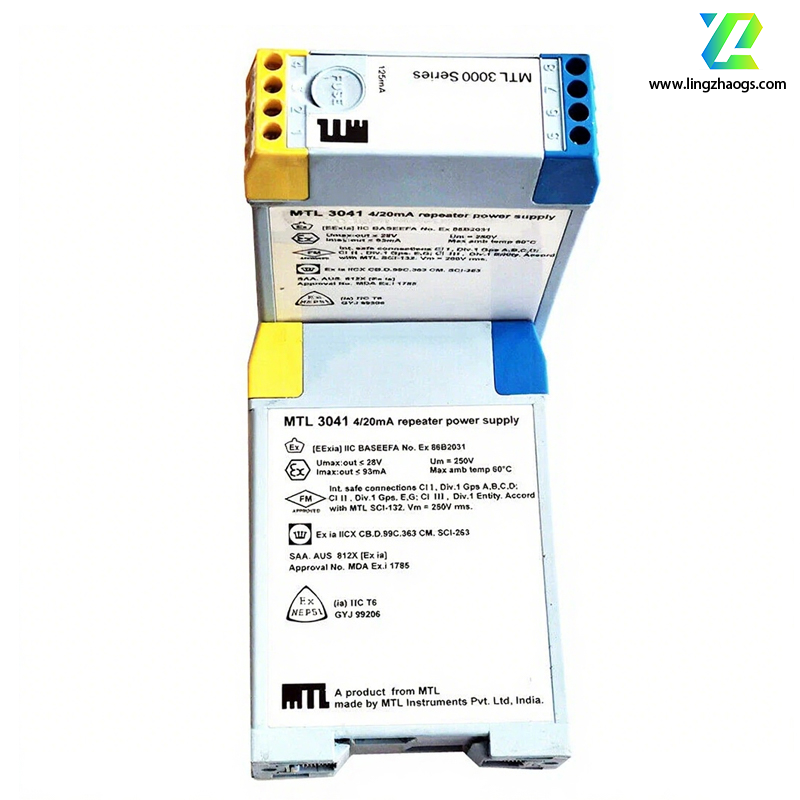

The MTL3041 is a 4/20mA relay power supply manufactured by MTL Instruments, belonging to the MTL3000 series. Below is its detailed information:
- Power supply voltage: 20-35V DC
- Maximum output voltage: 28V
- Maximum output current: 93mA
- Maximum allowable voltage (Um): 250V
- Maximum ambient temperature: 60°C
- Weight: Approximately 160-180 grams

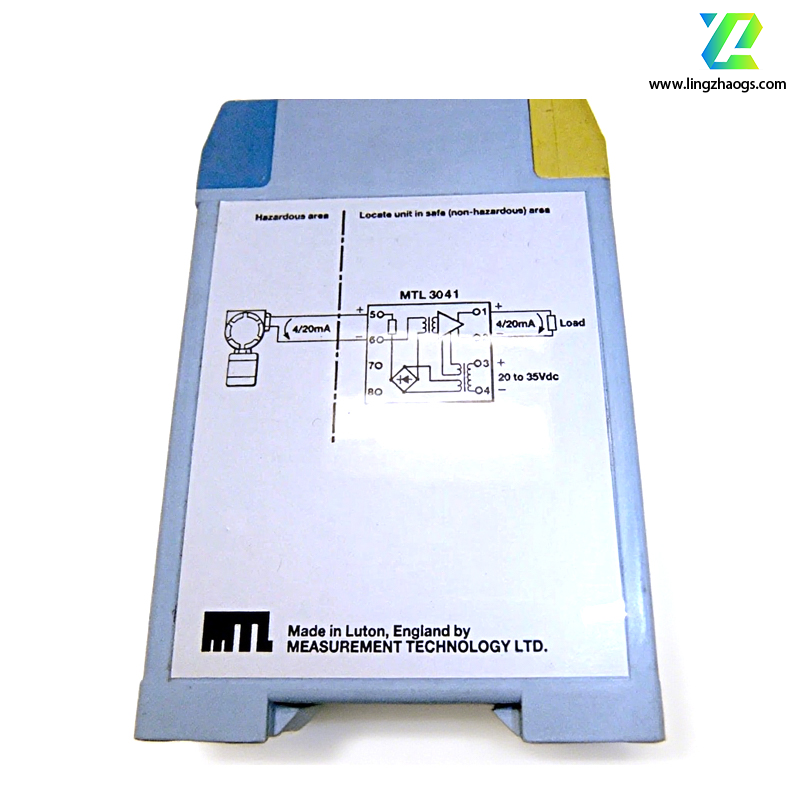

- Provides a fully floating DC power supply for traditional 2-wire or 3-wire 4/20mA transmitters (conventional or smart) in hazardous areas, and repeats the current in another circuit to drive safe-area loads.
- For smart transmitters, the device enables bidirectional transmission of digital communication signals superimposed on the 4/20mA signal, allowing the transmitter to be interrogated from an operator station or handheld communicator (HHC).
- The MTL3000 series complies with standards GB3836.1-83 and GB3836.4-83, with an explosion-proof mark of Ex (ia)ⅡC.
- The MTL3041 may also have corresponding explosion-proof characteristics and can be used in relevant hazardous locations.
