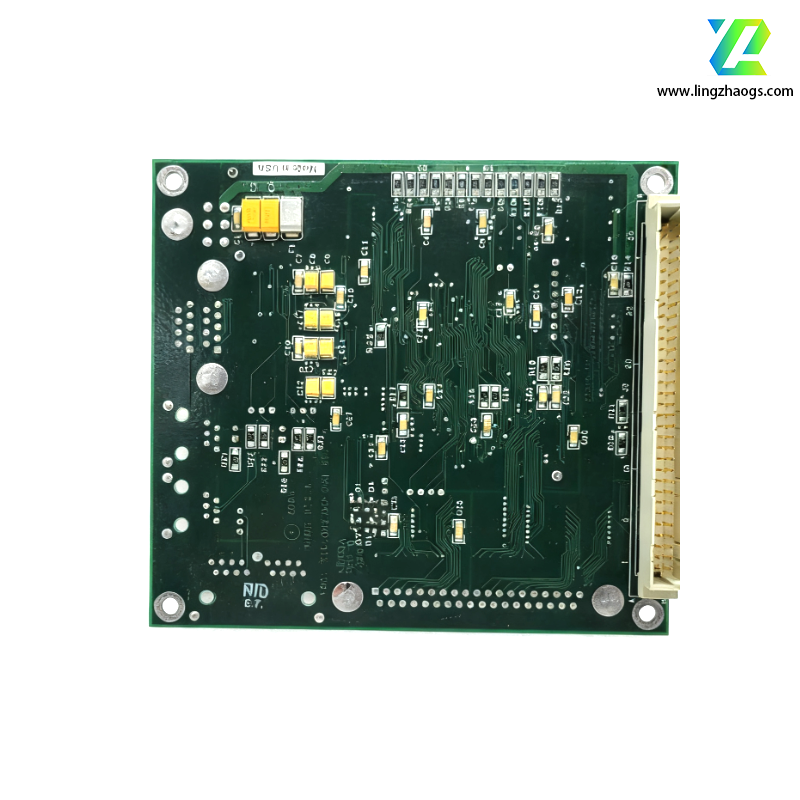

The LAM 810-802799-008 is a high-performance printed circuit board (PCB) assembly designed for precision signal processing, power distribution, and real-time control in advanced semiconductor manufacturing equipment. As part of LAM Research’s 810 series, this module supports critical operations in plasma etching, deposition, and metrology systems. Below is a detailed breakdown based on industry insights, compatible product lines, and verified third-party technical resources.
- Multi-Protocol Signal Management: Manages analog (±10V, 4–20 mA) and digital (TTL/CMOS) signals for real-time monitoring of process parameters (e.g., plasma density, gas flow rates, and wafer positioning).
- Power Conditioning: Delivers stable 3.3V, 5V, and 24V DC power to downstream components, ensuring reliable operation in dynamic environments.
- High-Speed Communication: Integrates Ethernet/IP, RS-485, and Modbus protocols for seamless data exchange with LAM’s Sense.i™ control platform and factory MES systems.
- Diagnostic Capabilities: Onboard status LEDs and built-in self-test (BIST) tools enable rapid fault detection and maintenance.
Precision Signal Conditioning
- 16-bit ADC/DAC converters ensure ±0.1% accuracy for analog measurements, critical for maintaining process consistency in 3nm+ chip fabrication.
- Supports voltage/current loop termination for long-distance sensor connections (up to 1 km).
Redundant Power Architecture
- Dual redundant power inputs (24V DC) provide fault tolerance in mission-critical applications.
- Overvoltage/undervoltage protection (<5 ms response time) safeguards against power fluctuations.
Modular Expansion
- Optional daughter cards (e.g., digital I/O expansion, RS-232 adapters) enable customization for specific tool requirements.
Safety Compliance
- Compliant with IEC 61010-1 (electrical safety) and IEC 61508 (functional safety) for semiconductor manufacturing.
- RoHS and REACH certified for environmental sustainability.
- Plasma Etching Systems (e.g., LAM Vantex™): Controls RF generator power levels and wafer stage positioning with micron-level precision.
- Chemical Vapor Deposition (CVD) Tools (e.g., LAM ALTUS™): Manages gas flow controllers and temperature sensors to ensure uniform thin-film deposition.
- Metrology Equipment: Processes data from defect inspection cameras and ellipsometers for real-time yield optimization.
- Wafer Handling Robotics: Provides feedback for robotic arm drives in cleanroom environments.
- Equipment Compatibility: Designed for LAM Research’s 2300 Series, 3900 Series, and next-generation platforms.
- Software Tools: Configurable via LAM’s Workbench or MyLam portal for parameter tuning, firmware updates, and diagnostic logging.
- Replacement Options: Direct drop-in replacement for older modules (e.g., 810-802901-307) with no wiring modifications.
- Technical Resources: Restricted-access datasheets and installation guides are available via LAM Research’s MyLam Portal.
- Third-Party Services: Authorized distributors (e.g., Saulabb, DCS FCS) offer repair, calibration, and lifecycle management.
- Warranty: Standard 12-month warranty; extended 24-month coverage available for high-reliability applications.
This module plays a pivotal role in enabling high-yield, energy-efficient semiconductor production by ensuring process stability and minimizing downtime. Its design aligns with LAM Research’s focus on sustainable manufacturing and support for next-generation chip technologies (e.g., 2 nm nodes and beyond).
For exact technical specifications or procurement inquiries, contact LAM Research directly or their authorized partners.
