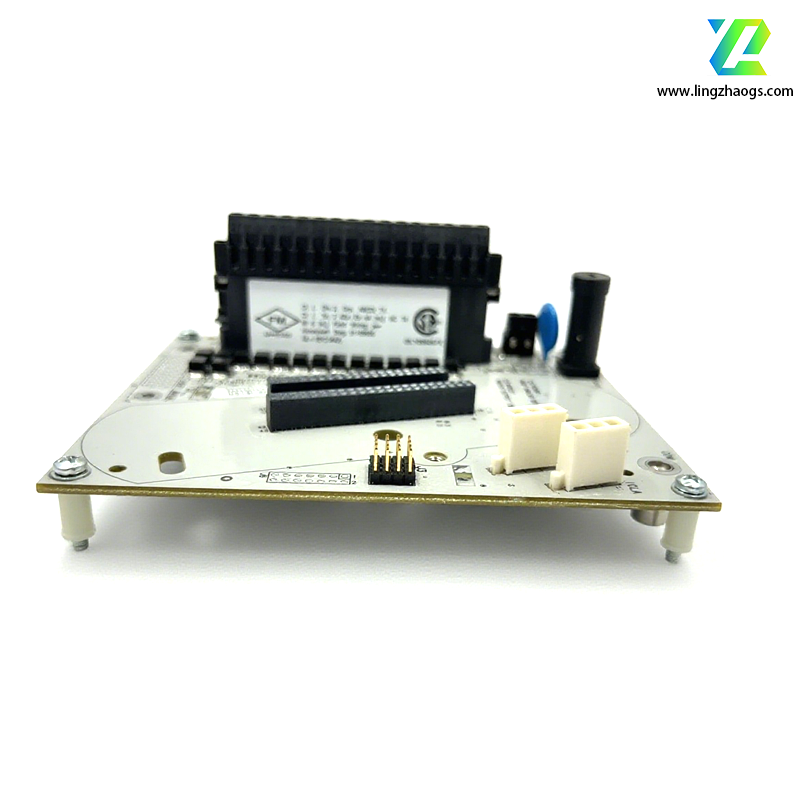

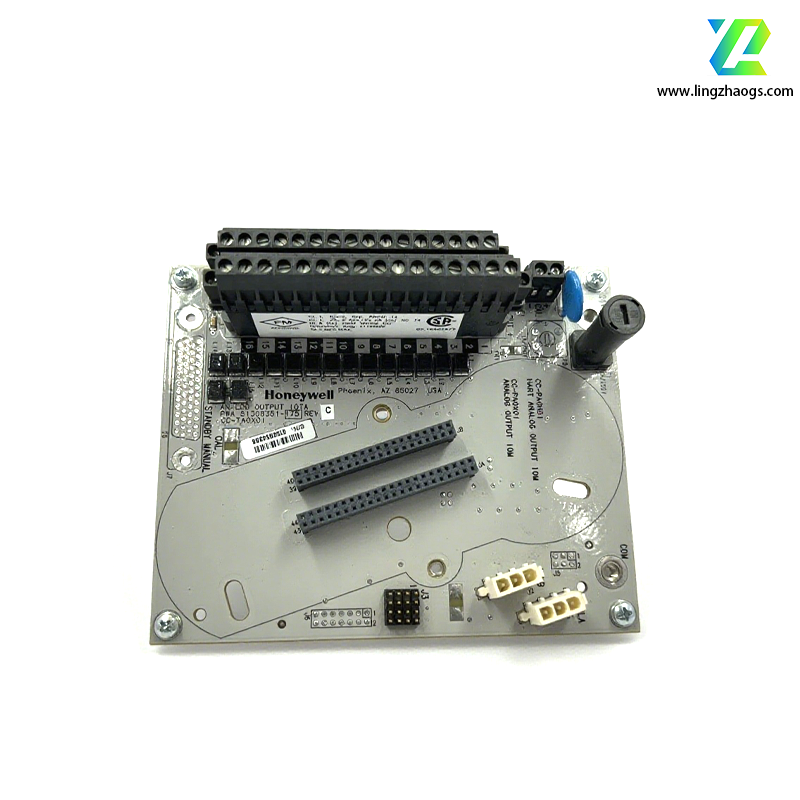

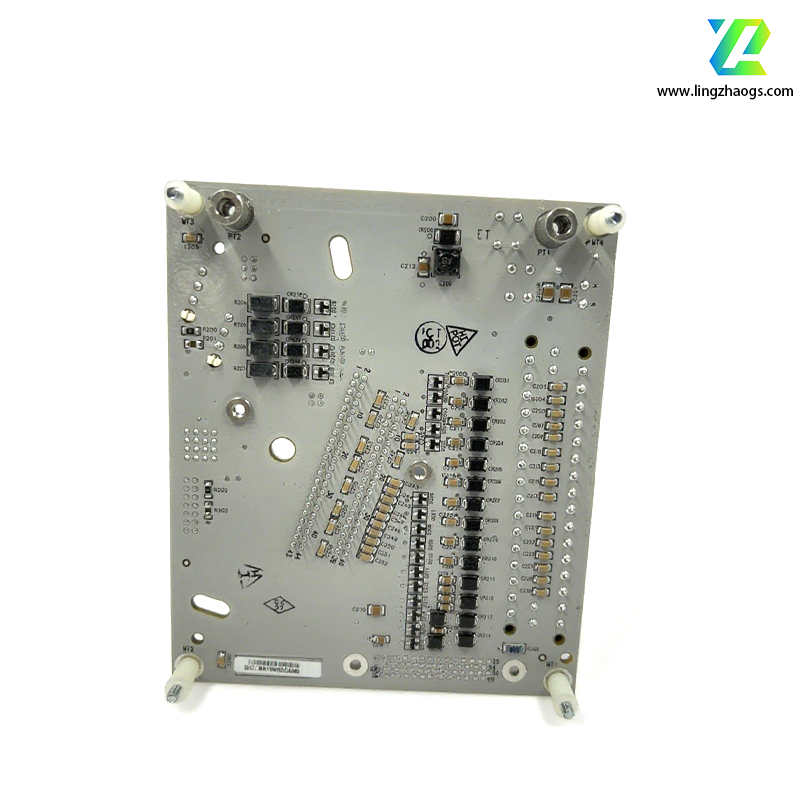

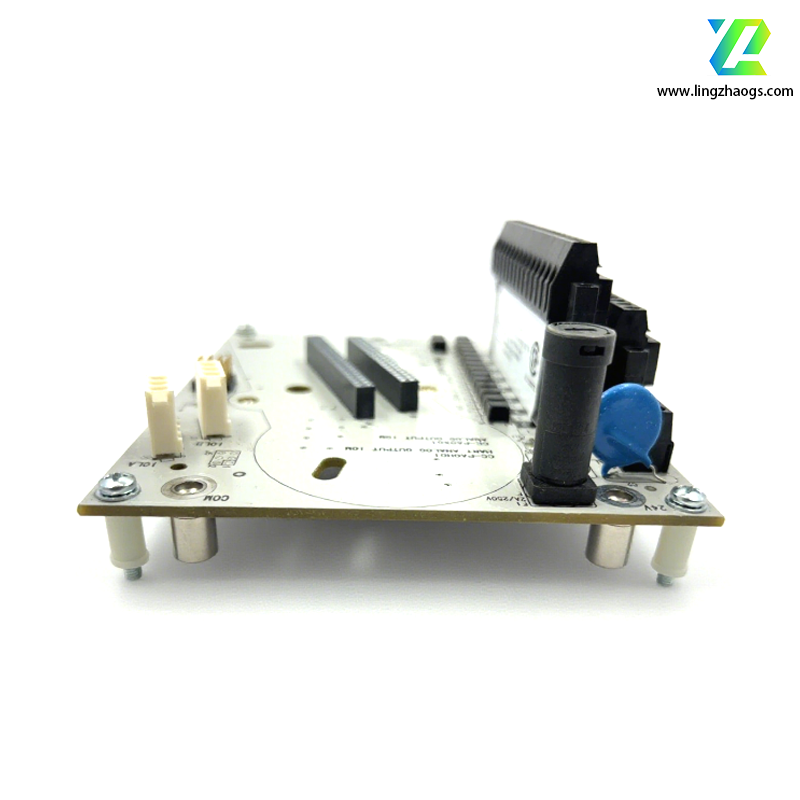

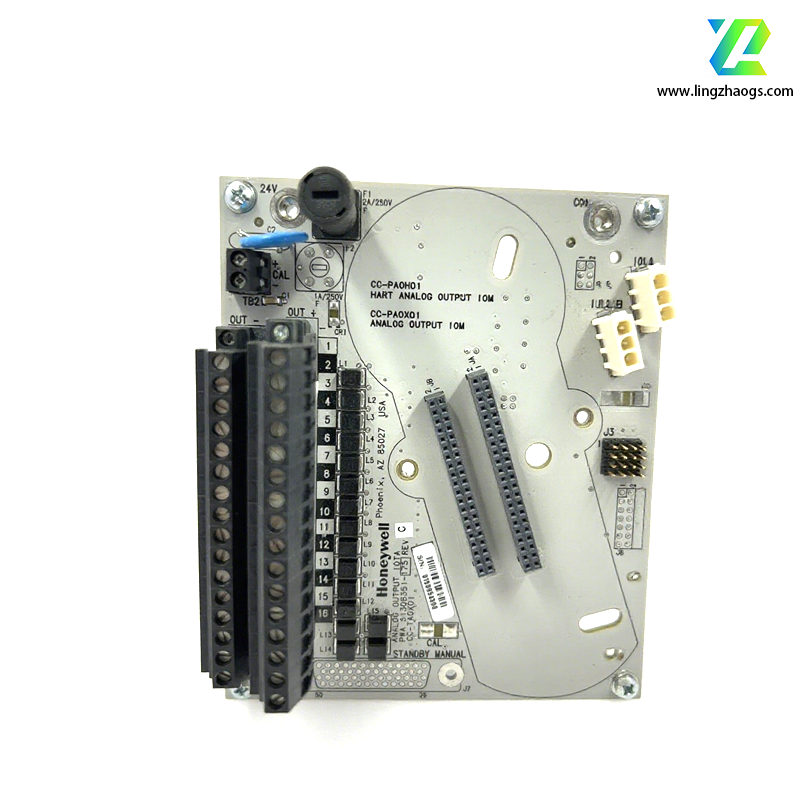

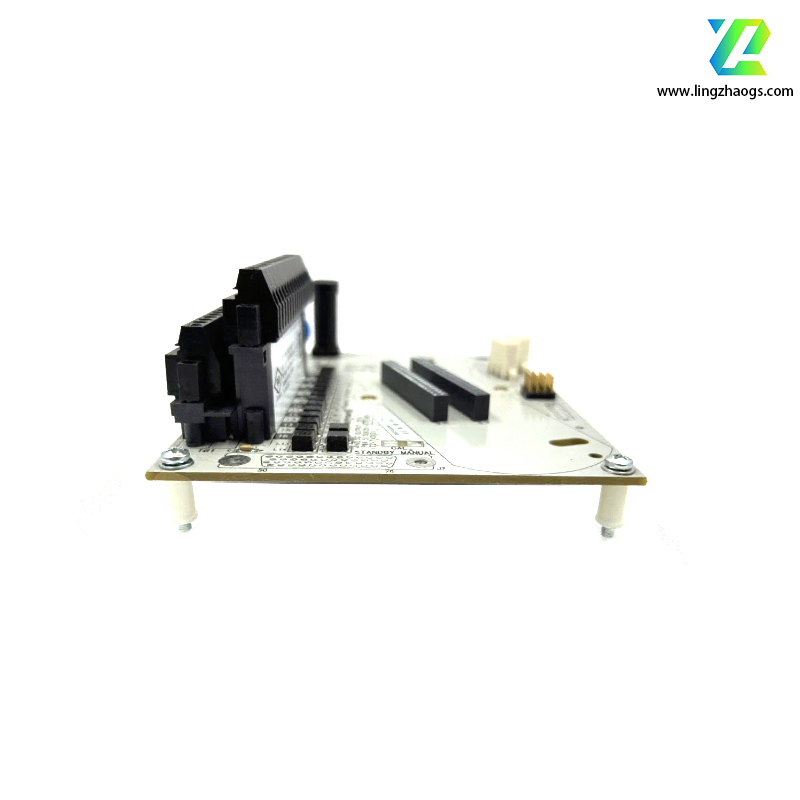

The Honeywell CC-TAOX01 is an analog output module launched by Honeywell, mainly used in industrial process control systems. Below is its detailed information:
- Type: Non-redundant I/O Terminal Adapter (IOTA).
- Origin: United States.
- Weight: Approximately 2000g.
- Output Signal: Supports 4-20mA analog output and is equipped with the HART protocol.
- Fault Detection: Features wire break detection function and can provide fault indication.
- Safe State Configuration: Each channel can be configured with Fail-Safe Operation (FAILOPT) behavior, such as maintaining the last value or switching to a safe value.
- Explosion-Proof Characteristic: Non-intrinsically safe output, suitable for hazardous areas.
- Output Feedback: Has an output readback function, which can trigger an alarm if a discrepancy occurs.
- Number of Channels: 8 channels.
- Output Ripple: Peak-to-peak value less than 100mV on a 250Ω load at power line frequency.
- Output Temperature Drift: 0.005% of full scale per °C.
- Output Readback Accuracy: ±4% of full scale.
- Output Current Linearity: ±0.05% of nominal full scale.
- Resolution: ±0.05% of full scale.
- Calibration Accuracy: At 25°C, including linearity, it is ±0.35% of full scale.
- Configurable Output Current Range: 0mA, 2.9mA to 21.1mA.
- Maximum Resistive Load: (24V power supply = 22VDC to 28VDC) 800 ohms.
- Maximum Output Compatible Voltage: (24V power supply = 22VDC to 28VDC) 16V.
Supports DIN rail mounting for convenience and efficiency.
Suitable for scenarios requiring precise control of analog devices, such as the control of valves, actuators, and recorders. It is widely used in industrial fields including manufacturing, utilities, and process control.
