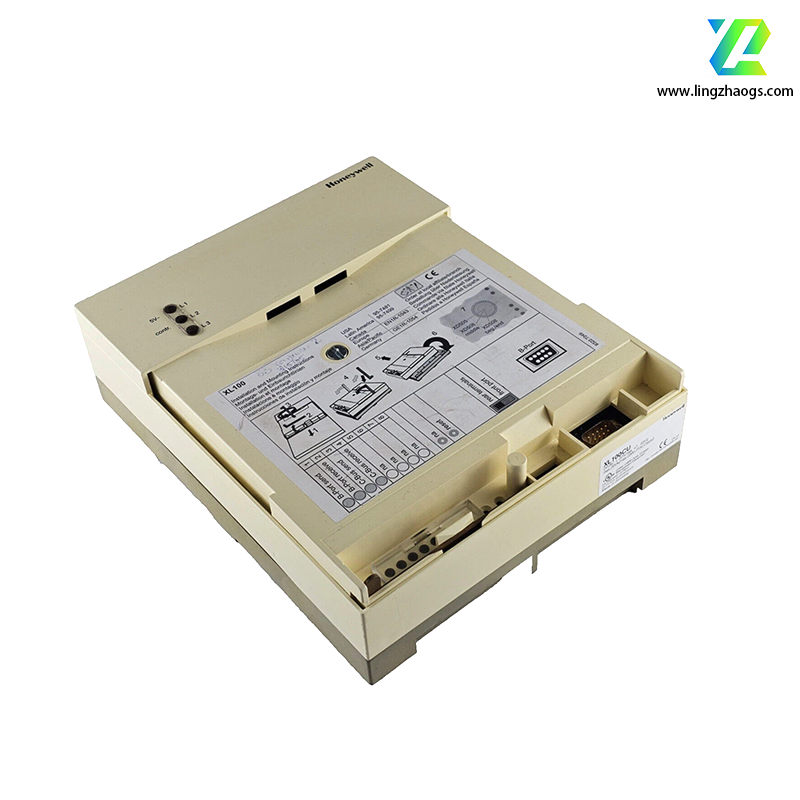

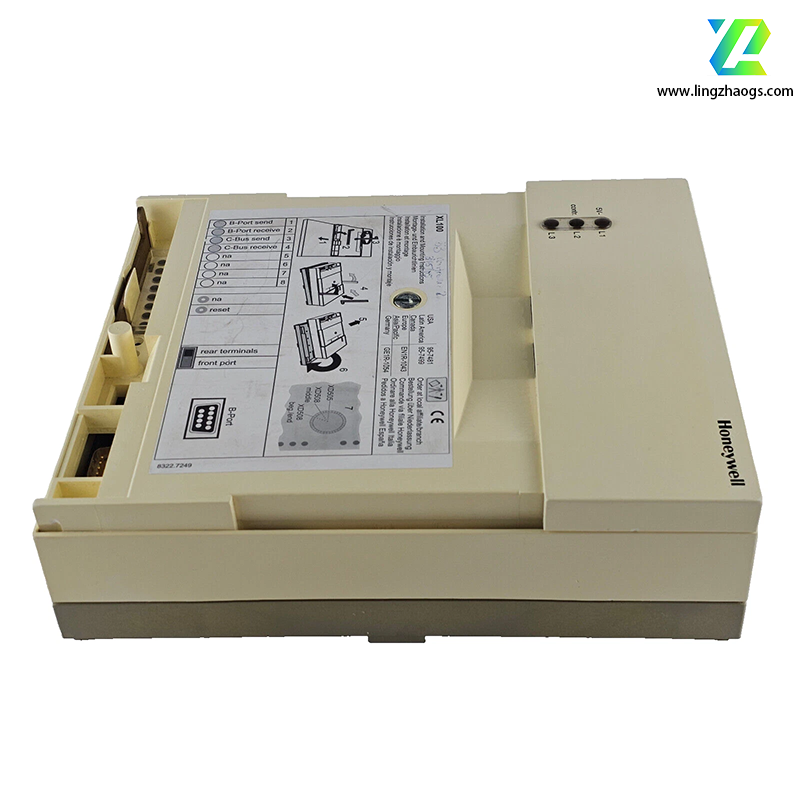

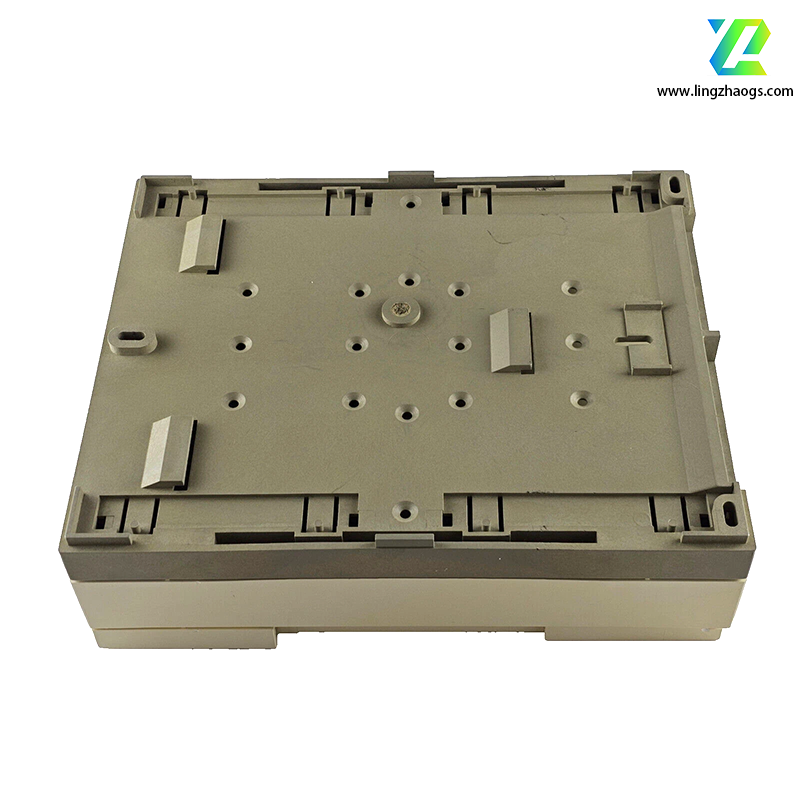

The Honeywell XL-100-CU is a programmable controller that is part of the Excel 100 series, mainly used for building automation and control systems. Here is the detailed information about it:
- Manufacturer: Honeywell.
- Model: XL-100-CU.
- Type: Programmable controller.
- Country of Origin: United States.
- Approval: UL 916, FCC, CE approved.

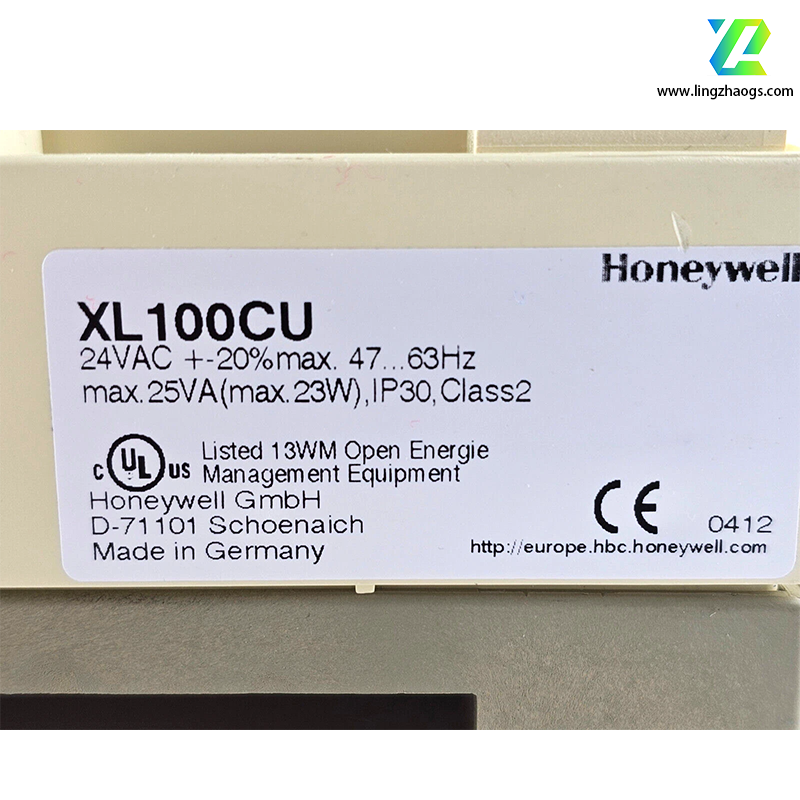

- Power Supply: 24VAC/DC, 50/60Hz.
- Power Consumption: Maximum 25VA.
- Dimensions: 9.25 inches high x 7.56 inches wide x 2.83 inches deep (approximately 235mm high x 192mm wide x 72mm deep).
- Operating Temperature Range: 32°F to 122°F (0°C to 50°C).
- Shipping Temperature Range: -4°F to +140°F (-20°C to +60°C).
- Operating Humidity Range: 5 to 90% RH, non-condensing.
- Programmability: It is an application - programmable controller. Application programs can be generated using CARE software, which can provide comprehensive control strategies.
- I/O Flexibility: It has analog or digital inputs and outputs, which can be flexibly used according to different point requirements.
- Communication Capability: It uses C - BUS for network communication and has interfaces for modem and C - BUS. It can be connected to building management systems such as EBI, SYMMETRE, and ACSELON.
- Alarm Handling: It has an alarm handling facility, which can locally display problems and remotely dial out to take corresponding actions.
- Data Storage: With battery - backed RAM, it can keep the controller programming in place during power outages.
- Operator Interface Options: It provides multiple operator interface options, which are convenient for local or on - site changes.
- Point Trending: It can perform point trending to provide timely information about the status of points in the system.
The Honeywell XL-100-CU is widely used in building automation systems, such as controlling heating, ventilation, and air - conditioning (HVAC) systems, lighting systems, and other building - related equipment. It can be used as a stand - alone controller or networked with other controllers to form a more complex distributed control system. However, it should be noted that this product may have been discontinued by the manufacturer. It is recommended to consult Honeywell's official channels or authorized distributors for the latest replacement products and technical support.
