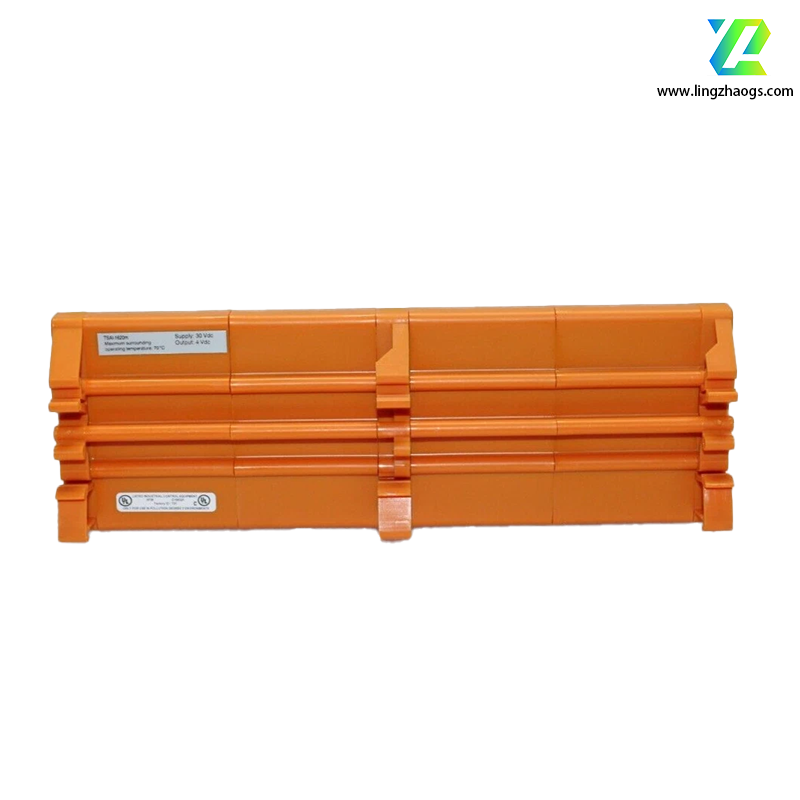

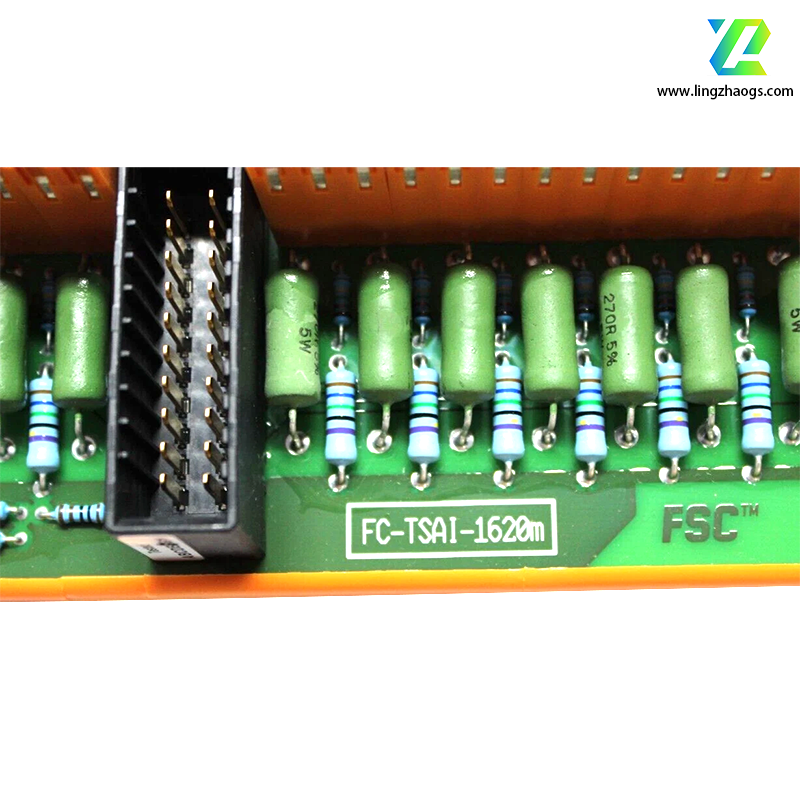

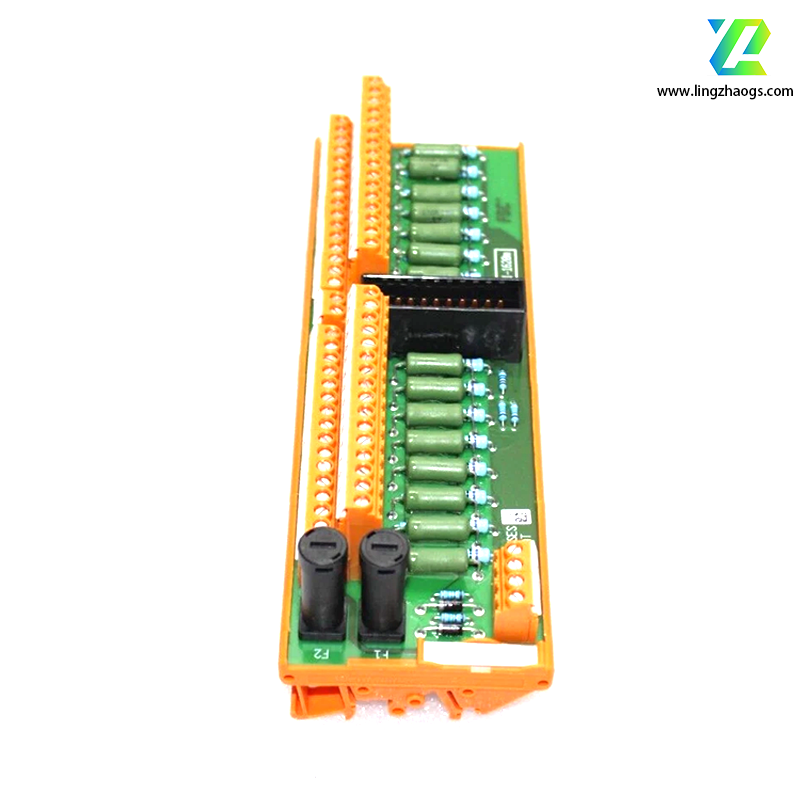

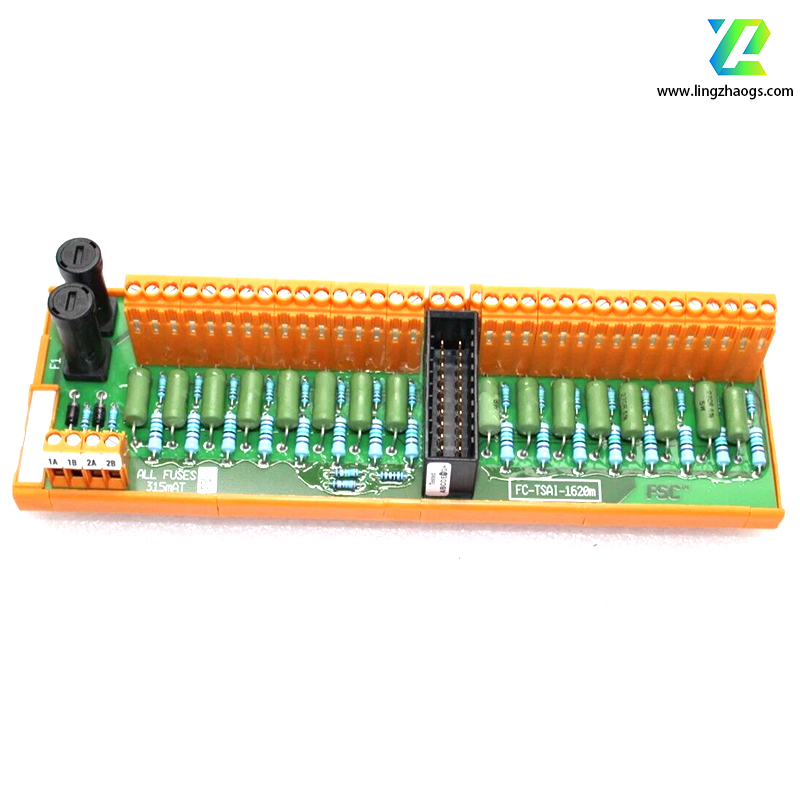

The Honeywell FC-TSAI-1620M is an analog input module launched by Honeywell. Below is its detailed information:
- Product Type: Analog Input Field Terminal Adapter Module.
- Origin: United States.
- Dimensions: Approximately 139.7mm × 101.6mm × 31.8mm (Width × Height × Depth).
- Weight: Approximately 0.68kg.
- Number of Channels: 16 channels.
- Input Type: Analog.
- Input Ranges: 0-10V, -10-10V, 0-5mA, 4-20mA, -20mA-20mA, etc.
- Input Impedance: 10MΩ.
- Accuracy: ±0.1% of full scale.
- Linearity: ±0.05%.
- Isolation Voltage: 2500V.
- Operating Temperature: -20℃ to 60℃.
- Storage Temperature: -40℃ to 85℃.
- Humidity: 5%-95% relative humidity, non-condensing.
- High Resolution: Features 16-bit resolution, enabling precise processing of analog signals.
- Safety Certification: Holds SIL 3 safety level certification and complies with the IEC 61508 standard, suitable for safety-critical applications.
- Self-Diagnostic Function: The module is equipped with self-diagnostic capability to detect and report faults in a timely manner.
- Communication Interface: Supports multiple industrial communication protocols (e.g., Modbus) for easy communication with other devices.
- Field-Terminalizable Design: The module includes field terminal components, facilitating on-site wiring and connections.
- Process Control: Used for monitoring and controlling variables such as temperature, pressure, and liquid level in industrial processes.
- SCADA Systems: Collects data from remote field devices to enable supervision, control, and data acquisition.
- Machine Automation: Monitors analog signals in automated mechanical equipment.
