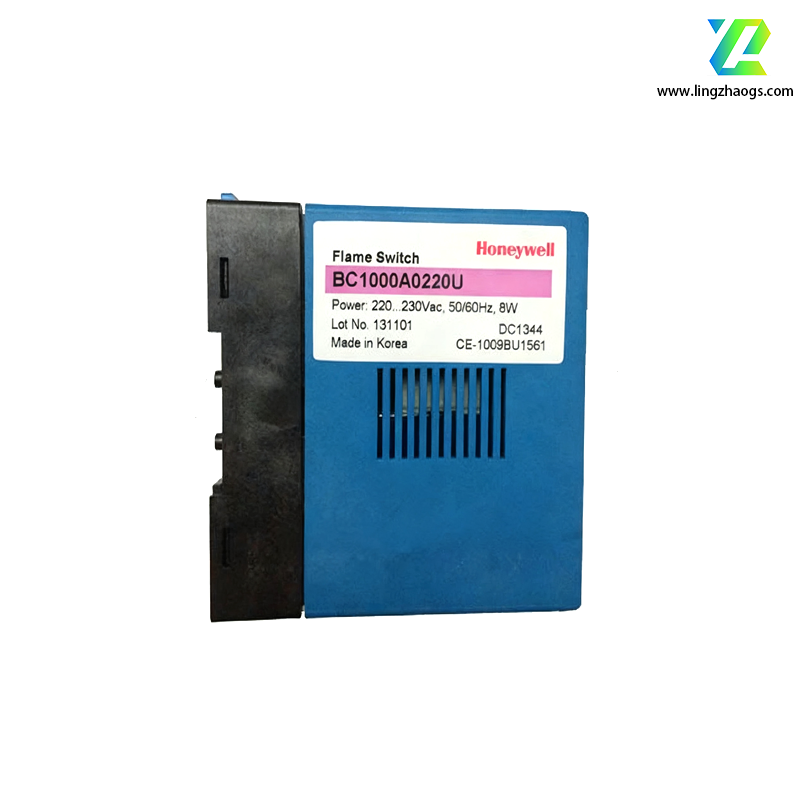

The Honeywell BC1000A0220U is a flame switch controller designed for monitoring and controlling the burner flame status in industrial heating systems. Here is the detailed information about it:
- Manufacturer: Honeywell.
- Model: BC1000A0220U.
- Type: Flame switch controller.
- Country of Manufacture: Korea.
- Power Supply: 220-230VAC, 50/60Hz.
- Power Consumption: 8W.
- Flame Response Time: 2±1 seconds.
- Flame Sensor Compatibility: Compatible with sensors such as C7027, C7035, and C7044.
- Mounting Method: It can be mounted on a panel or in an enclosure. It also uses a plug - in wiring subbase for direct panel or DIN rail mount, which is convenient for installation.
- Dimensions: The single - package size is approximately 10 x 9 x 8 cm.
- Weight: About 1 kg.
- Operating Temperature: -20°C to +46°C (or -20.2°F to 114.8°F).
- 防护等级: IP40.
- Safe - start Check (SSC): This feature prevents the burner from starting when an abnormal flame condition exists at start - up, ensuring safe operation.

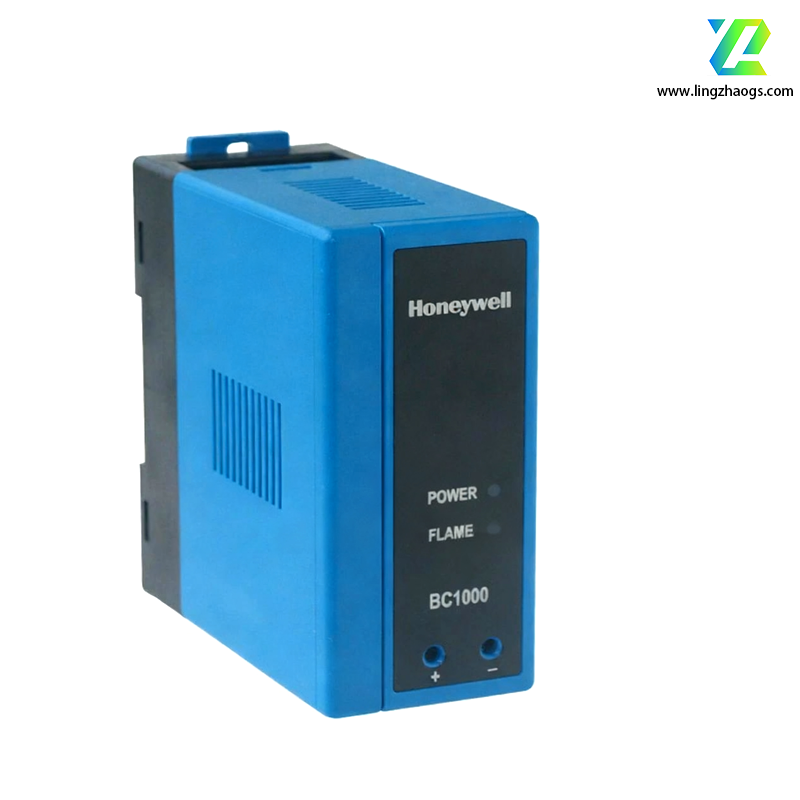

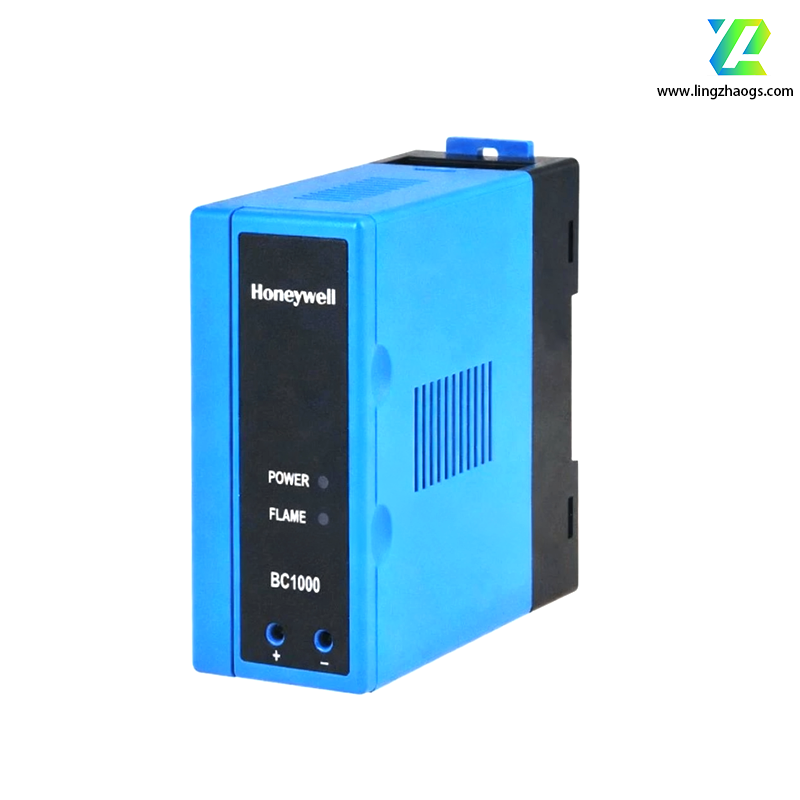

- Status Indicators: There are three LED indicators on the front, representing power, flame, and safe - start check (SSC) status respectively, which can clearly show the operation status of the controller.
- Flame Signal Monitoring: Screw terminals on the front provide continuous 0 - 6VDC flame signal strength monitoring, which is convenient for users to monitor the flame signal situation.
- Anti - ignition Interference: It has an anti - ignition interference function, and the built - in protector can prevent high - voltage interference during ignition.
The Honeywell BC1000A0220U is widely used in industrial heating systems, furnaces, boilers, and various combustion processes where precise flame monitoring and operational safety are critical. It can be used as a manual start/stop burner controller or as the primary control for manually operated burner systems, ensuring the safe and reliable operation of burners and boilers.
