Basic Information

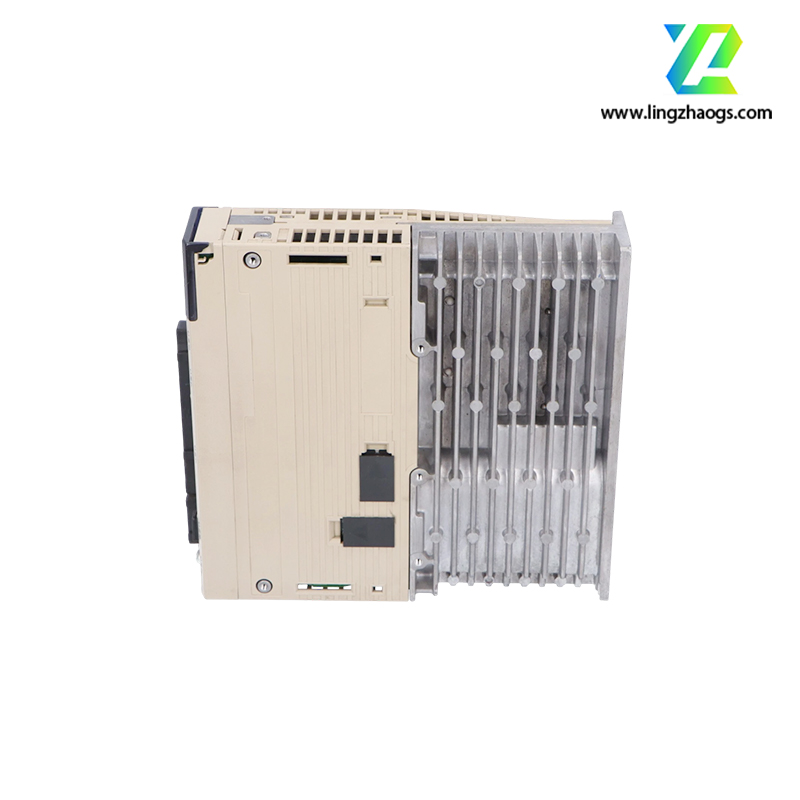

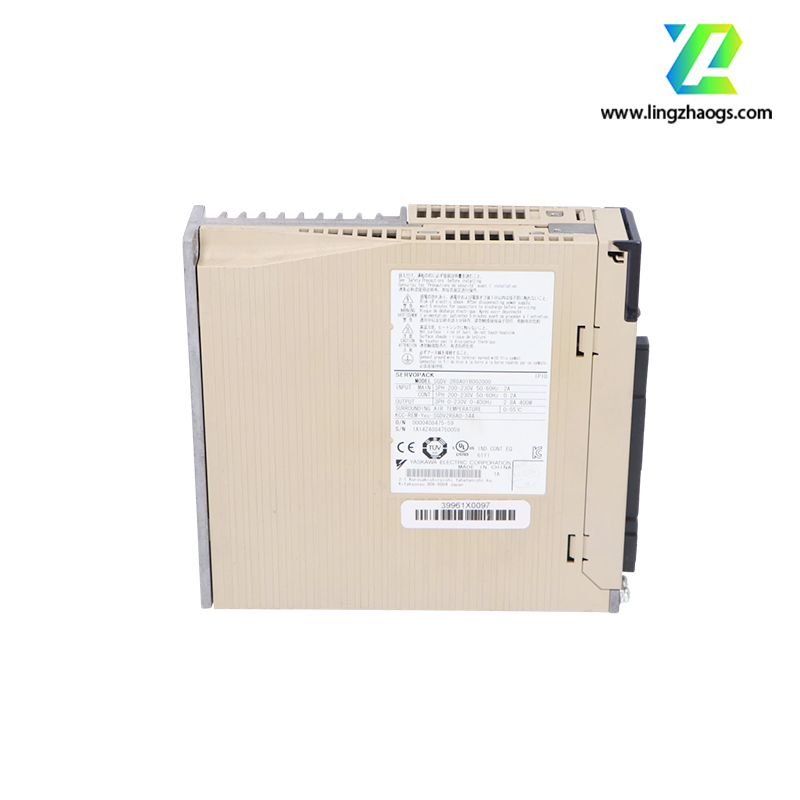

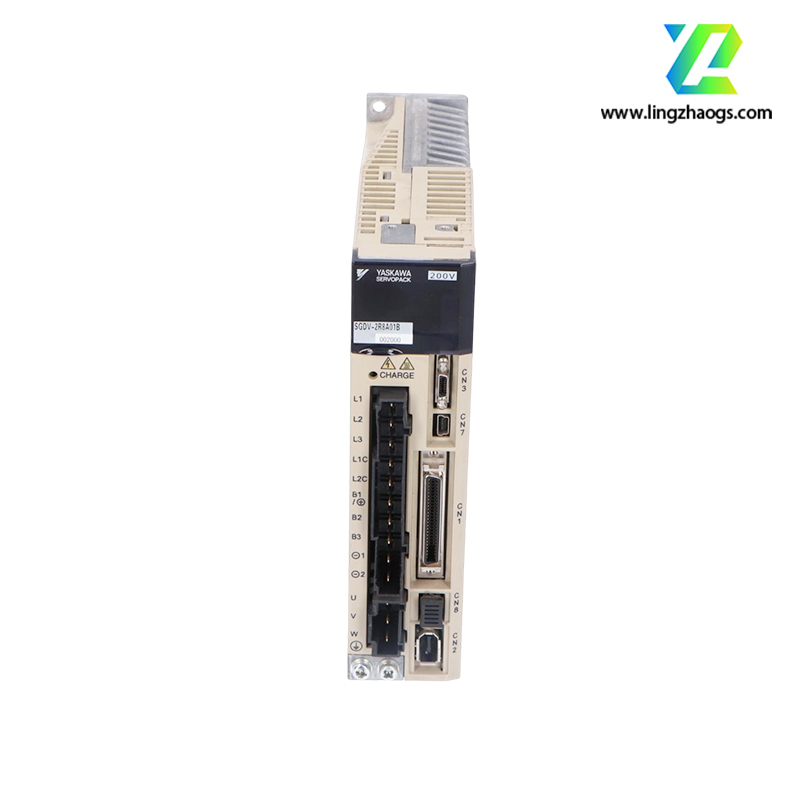

• Product Model: Yaskawa SGDV-2R8A01B002000
• Product Category: Servo Drive (Sigma-5 Series AC Servo Amplifier)
• Manufacturer: Yaskawa Electric Corporation
• Application Scope: CNC machine tools, robotic arms, automated production lines, precision motion control equipment (matching Yaskawa Sigma-5 series servo motors)

Technical Specifications

1. Rated Output Current: 2.8 A (rms, continuous); 8.4 A (rms, peak)
2. Input Power Supply: Single-phase 200–230 V AC (50/60 Hz); Control power supply DC 24 V ±10%
3. Control Modes: Position control, speed control, torque control (configurable); Pulse/direction, analog voltage input
4. Communication Interface: Mechatrolink-II, Modbus RTU (optional); Support for parameter adjustment via software
5. Operating Conditions: Temperature range 0°C to +55°C; Humidity 20%–80% (non-condensing); Vibration resistance ≤ 5g (10–2000Hz)
6. Mechanical Specifications: DIN rail or panel mounting; Dimensions 150mm × 210mm × 140mm; Weight approx. 2.5 kg
7. Protection & Certifications: Overcurrent, overvoltage, undervoltage, overheat, short-circuit protection; Compliance with IEC 61800-5-1, CE, UL standards

Core Functions & Features

• High-precision motion control, supporting microstep positioning and smooth speed regulation for servo motors
• Built-in automatic tuning function, adapting to different load conditions for optimal performance
• Fault self-diagnosis with clear fault codes, enabling quick troubleshooting and maintenance
• Compact design, saving installation space in control cabinets; Fan-less structure for low noise operation
• Seamless integration with Yaskawa servo motors and motion controllers, simplifying system configuration
• Supports energy-saving mode, reducing power consumption during standby or light-load operation
