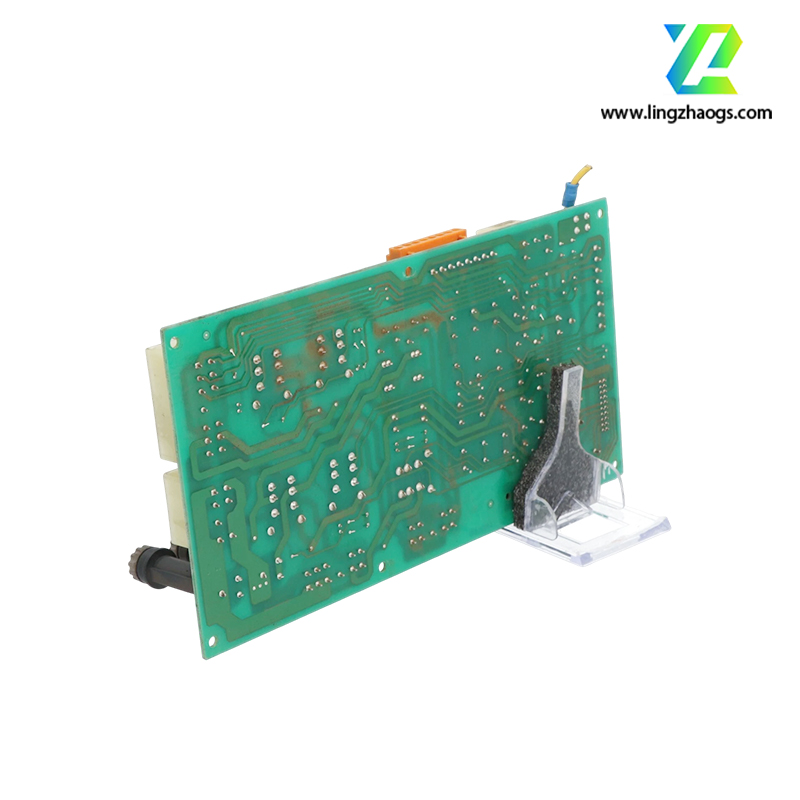

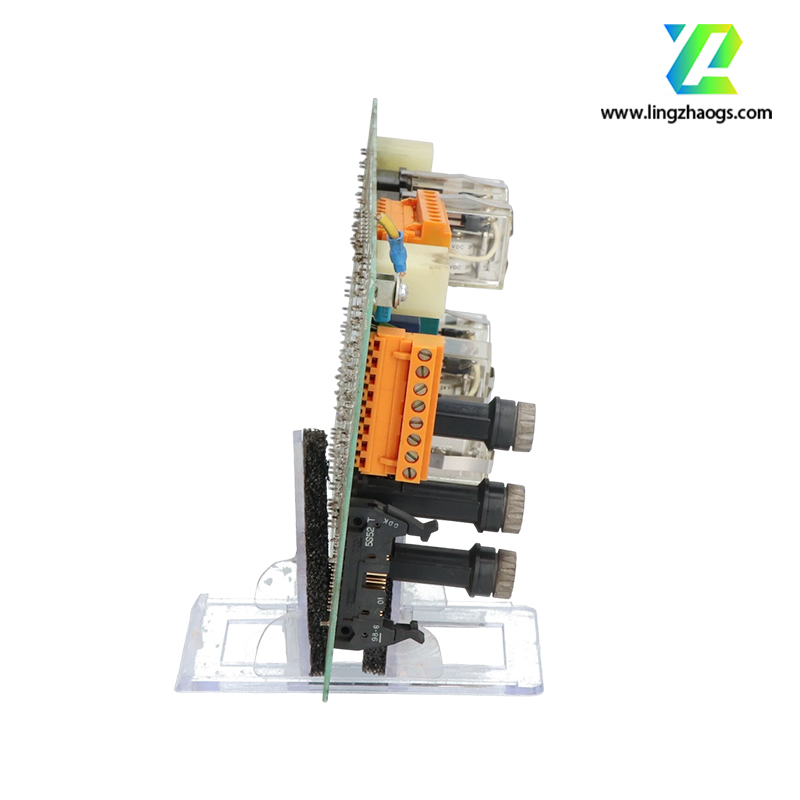

Basic Information

• Product Model: Yaskawa DF9201336-C0
• Product Category: Inverter Control Board (Servo Drive Control Module)
• Manufacturer: Yaskawa Electric Corporation
• Application Scope: Industrial servo systems, CNC machine tools, robotic arms, and automated production lines (matching Yaskawa servo drives for motion control)

Technical Specifications

1. Operating Voltage: DC 24V ±10% (control power supply)
2. Communication Interface: Compatible with Yaskawa Sigma Series servo protocols, supporting pulse/direction control and analog input (0–10V)
3. I/O Ports: 8 digital input channels, 4 digital output channels (transistor output)
4. Operating Conditions: Temperature range 0°C to +55°C; Humidity 20%–80% (non-condensing)
5. Mechanical Specifications: PCB dimensions 120mm × 80mm; Mounting via pin header (compatible with Yaskawa drive chassis)
6. Protection Functions: Overvoltage, undervoltage, and short-circuit protection (with fault signal output)

Core Functions & Features

• Precise motion control signal processing, ensuring high-precision positioning and speed regulation of servo motors
• Seamless integration with Yaskawa servo drives, simplifying system configuration and debugging
• Built-in fault self-diagnosis function, outputting clear fault codes for quick troubleshooting
• Compact design, saving installation space in industrial control cabinets
• Compliance with IEC 61010 industrial safety standards, ensuring stable operation in harsh industrial environments
• Supports parameter configuration via Yaskawa DriveWorks software, facilitating customized control requirements
