Basic Information

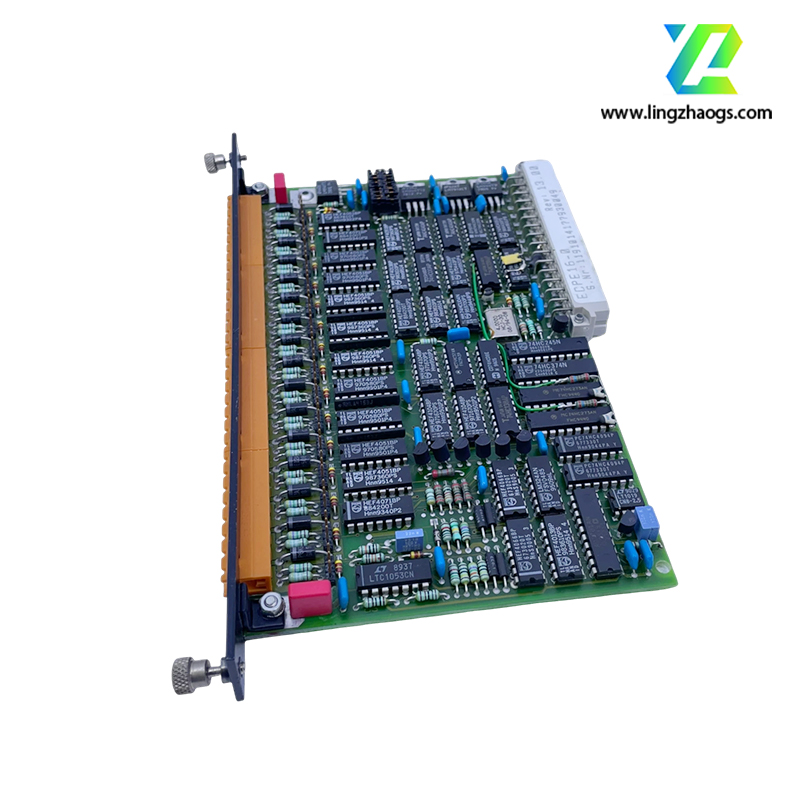

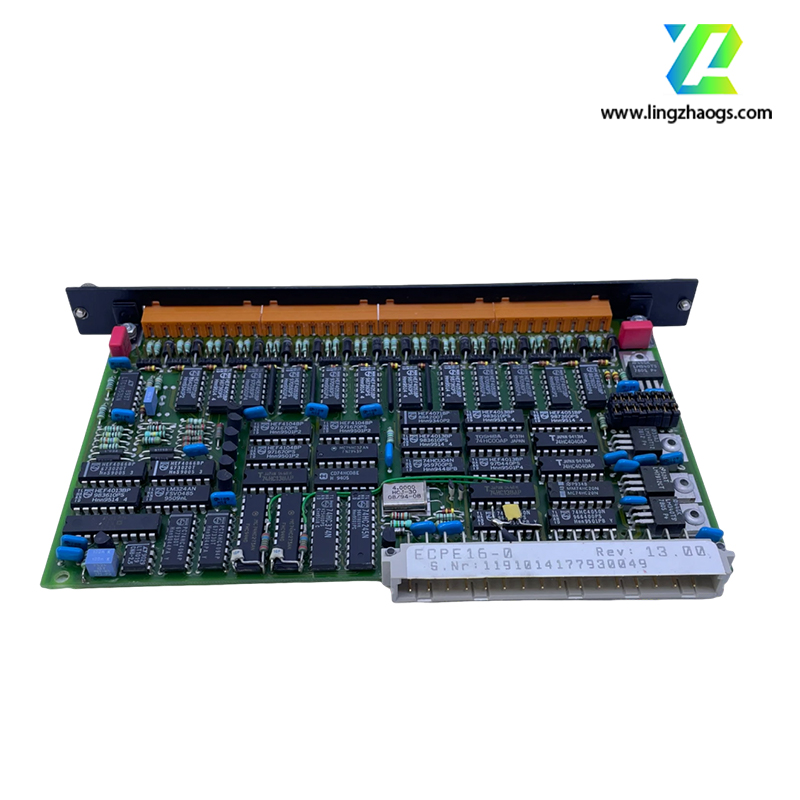

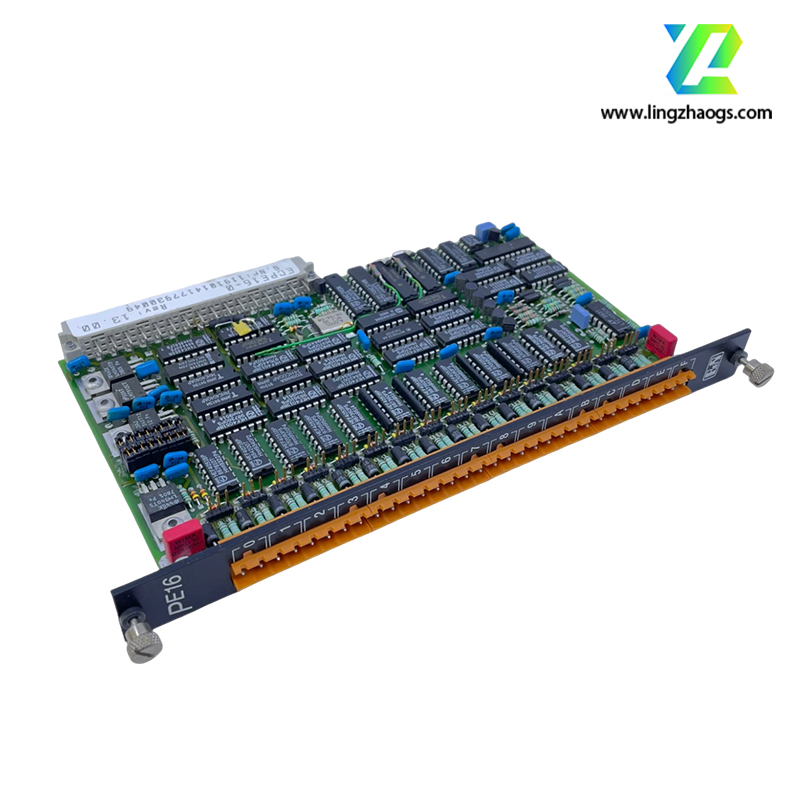

• Product Model: B&R ECPE16-0
• Product Category: Industrial Controller Module (Embedded PLC/Automation Controller)
• Manufacturer: B&R Industrial Automation GmbH
• Application Scope: Industrial automation systems, small to medium-sized control applications, such as packaging machinery, material handling equipment, and intelligent sensors (compatible with B&R automation software and I/O modules)

Technical Specifications

1. Processor Performance: 32-bit ARM Cortex-A9 processor; 512 MB RAM; 1 GB flash memory
2. I/O Expansion: Supports B&R X20 and X67 series I/O modules via local bus; 16 digital I/O (configurable as input/output)
3. Communication Ports: 2 x Ethernet ports (10/100/1000 Mbps, supports POWERLINK, Ethernet/IP); 1 x USB 2.0 port; 1 x RS232/RS485 port
4. Operating Conditions: Temperature range 0°C to +60°C; Humidity 5%–95% (non-condensing); Vibration resistance ≤ 5g (10–2000 Hz)
5. Power Supply: 24 V DC ±10%; Typical current consumption ≤ 0.5 A
6. Mechanical Specifications: DIN rail mounting (35mm); Dimensions 45mm × 110mm × 120mm; Weight approx. 200g
7. Protection & Certifications: Overvoltage, short-circuit protection; Compliance with IEC 61131-2, CE, UL standards

Core Functions & Features

• Compact embedded design, saving installation space while delivering reliable control performance
• Supports IEC 61131-3 standard programming languages, compatible with B&R Automation Studio software
• High-speed Ethernet communication enables real-time data exchange with peripheral devices and upper-level systems
• Modular I/O expansion capability, adapting to diverse control requirements by adding compatible modules
• Built-in status monitoring and fault self-diagnosis, facilitating quick troubleshooting via software or LED indicators
• Robust industrial-grade design with strong anti-interference performance, suitable for harsh on-site environments
