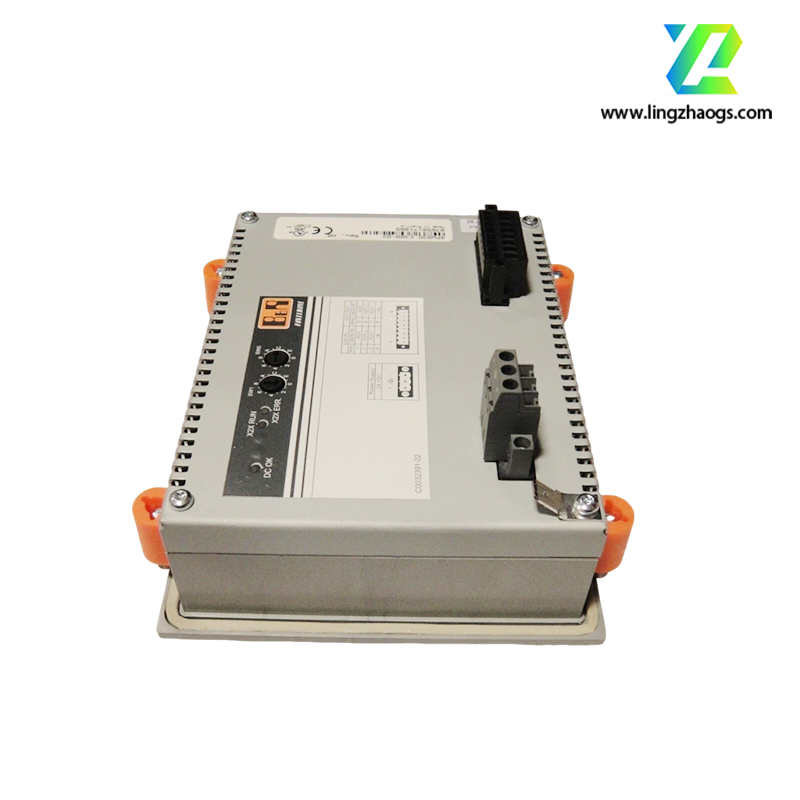

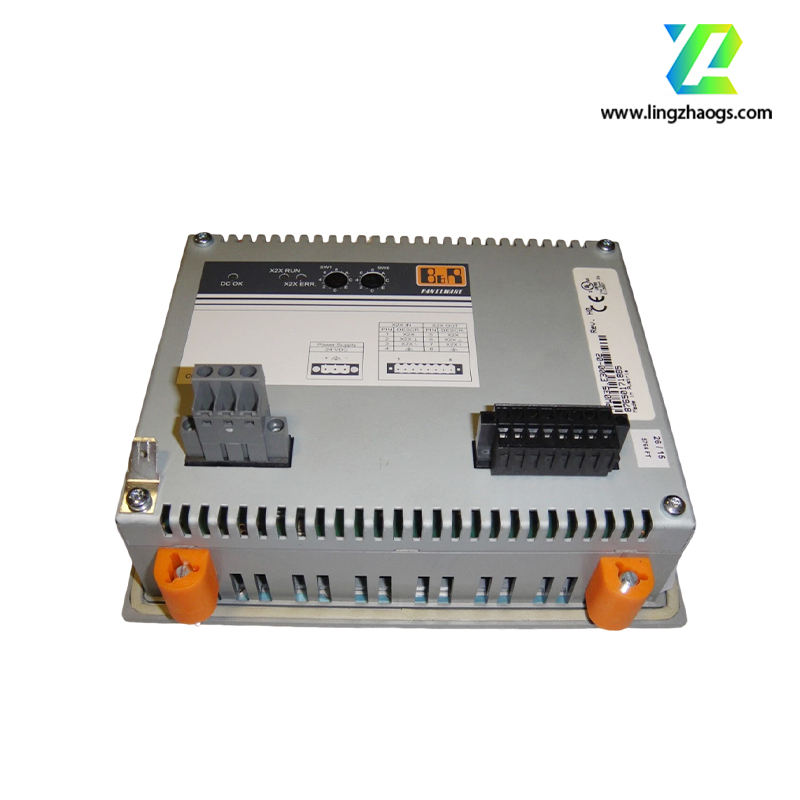

The B&R PW35 is a compact HMI (Human-Machine Interface) with an LCD display, belonging to the PANELWARE series. The following is the detailed information in English:
- Manufacturer: B&R, now a part of ABB.
- Model Number: Commonly known as PW35, with specific part numbers such as 4PW035.E300-01 and 4PW035.E300-02.
- Display:
- Type: Monochrome LCD.
- Resolution: 160 x 80 pixels.
- Backlight: LED.
- Character Set: European/Cyrillic.
- Power Supply:
- Input Voltage: 24 VDC ±25%.
- Power Consumption: Maximum 6 W.
- Keypad:

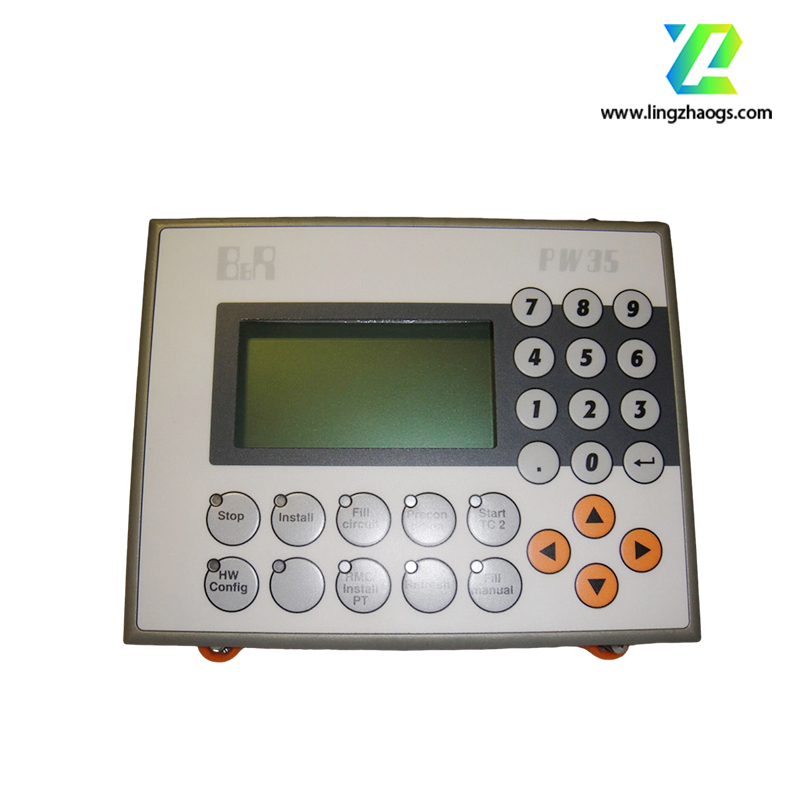

- Keys: 26 keys in total, including 10 keys with yellow LED, 16 numeric keys, and control keys.
- Interfaces:

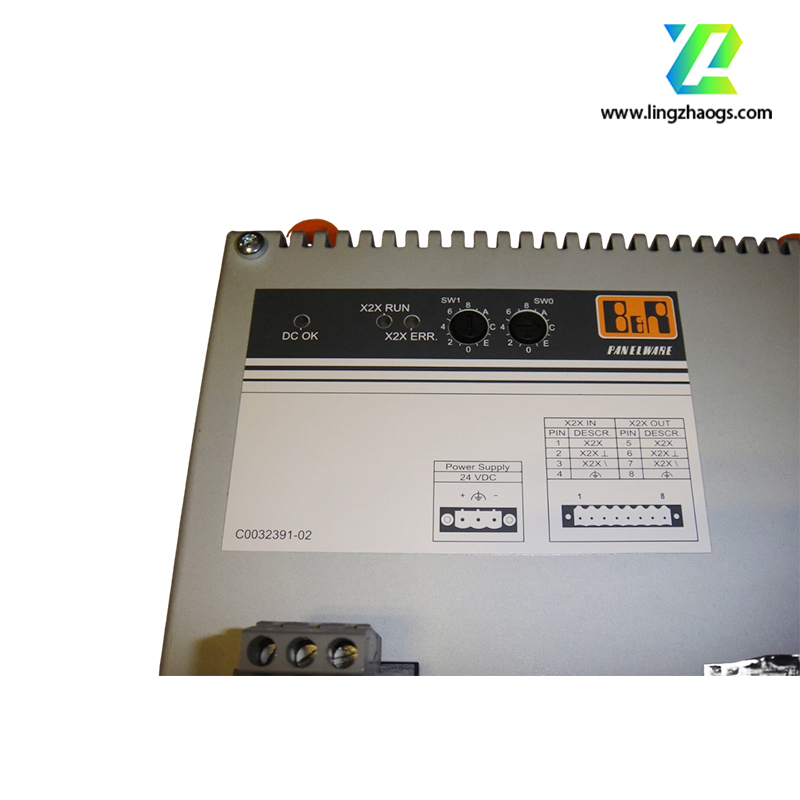

- CAN Interface: Available, with a 9-pin male DSUB connector (for models like 4PW035.E300-01). Some models may also have an X2X Link interface.
- Dimensions:
- Net Height: 120 mm.
- Net Width: 153 mm.
- Net Depth: 46.1 mm.
- Environmental Conditions:
- Operating Temperature: 0°C to +50°C.
- Storage Temperature: -20°C to +70°C.
- Protection Rating: IP65 (from the front), providing protection against dust and water jets.
- Certifications: CE, cULus E115267.
The B&R PW35 LCD is suitable for various industrial automation control scenarios. It can be used as a local operator interface in manufacturing, process control, and other industries, allowing operators to monitor and control industrial processes, view status information, and input commands. Its compact size and high protection rating make it easy to install and use in harsh industrial environments.
