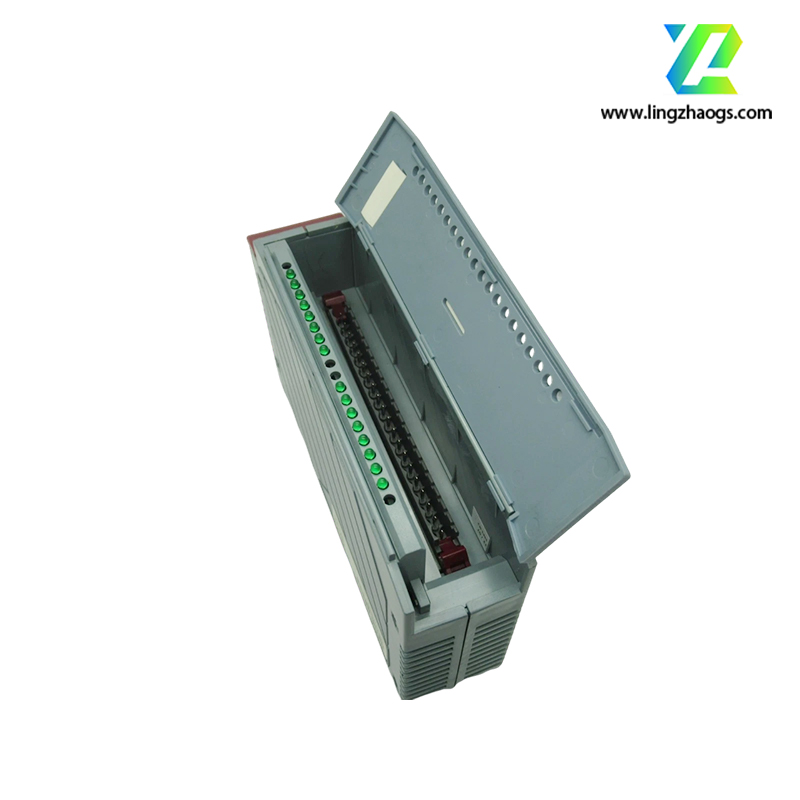

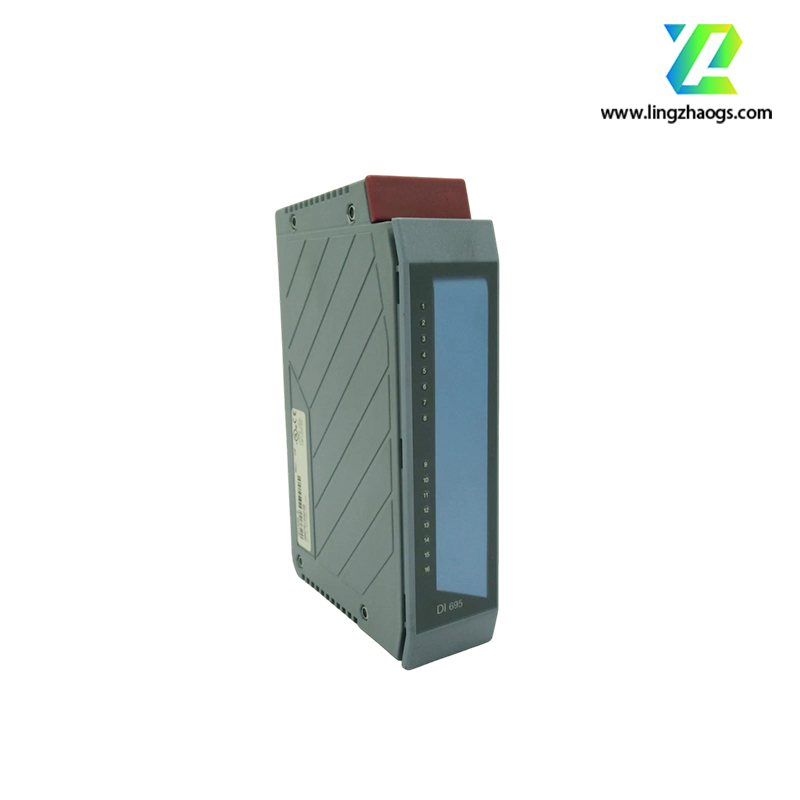

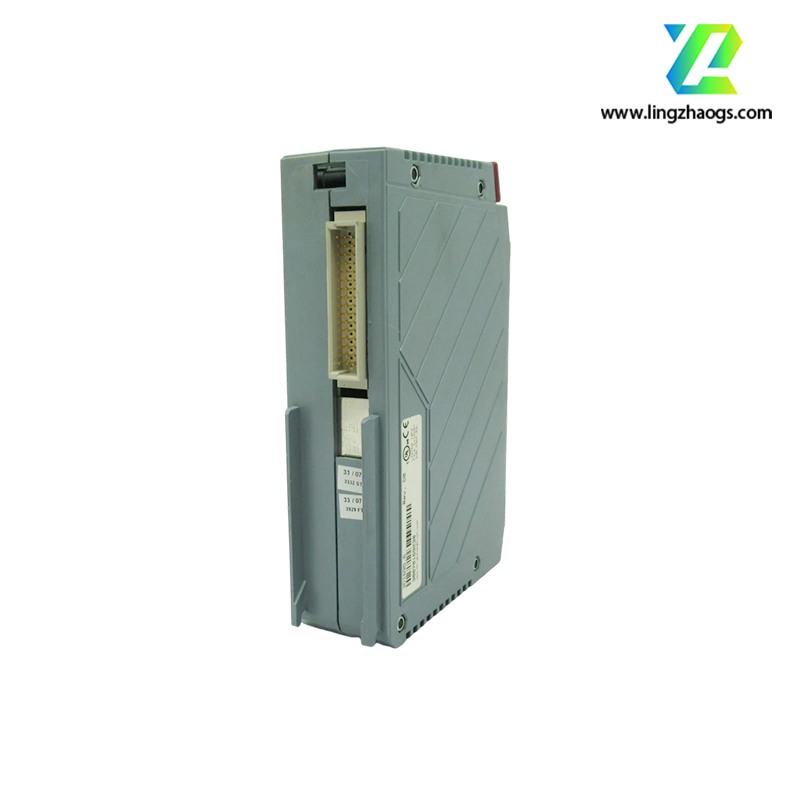

The B&R 3DI695.6 is a digital input module belonging to the B&R SYSTEM 2005 series. The following is the detailed information in English:
- Manufacturer: B&R, which is now part of ABB.
- Part Number: 3DI695.6
- Input Channels: 16 digital inputs.
- Rated Voltage: 120/230 VAC.
- Rated Frequency: 50/60 Hz.
- Maximum Peak Voltage: 264 VAC.
- Maximum Input Signal (1 - Signal): 79 VAC.
- Minimum Input Signal (0 - Signal): 40 VAC.
- Current (1 - Signal): Min. 2 mA, Max. 15 mA.
- Delay Times: Max. 50 ms for both transitions (0 to 1, 1 to 0).
- Power Consumption: Max. 4 W externally, Max. 1.5 W internal (5V & 24V).
- Isolation Voltage: 2500 VAC (Group 1 to Group 2), 500 VAC (Channel to Bus).
- Mounting: Compatible with main and expansion racks.
- Dimensions: Approximately 11.5 cm (length) x 4 cm (width) x 17.8 cm (height) (estimated based on related models).
- Weight: Approximately 0.3 kg.

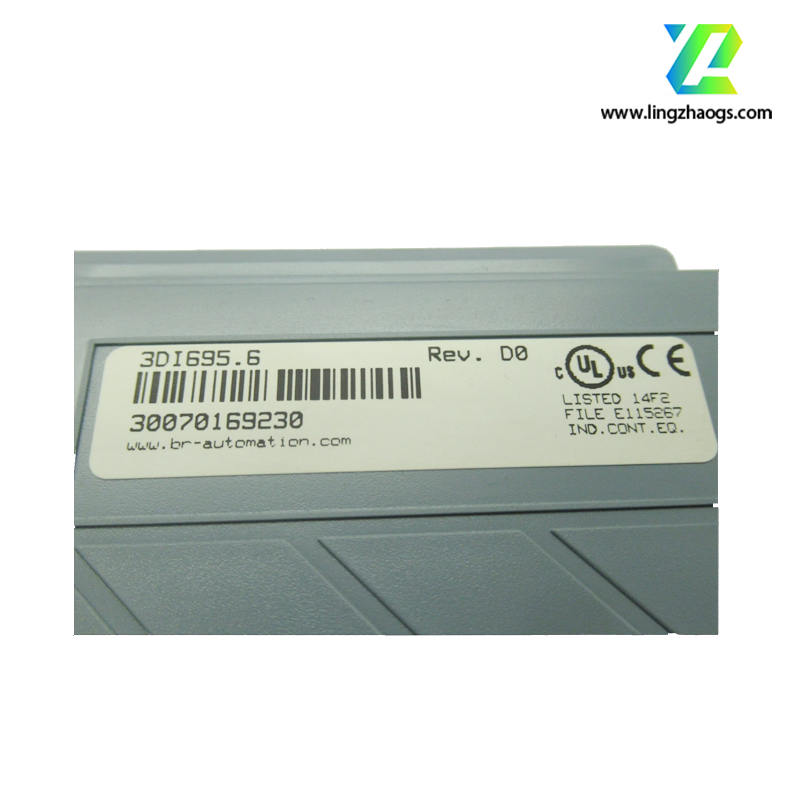

- Certifications: CE, C - UL - US, GOST - R, etc..
It is easy to integrate with different control systems and is widely used in industries such as manufacturing, power generation, and process control.
