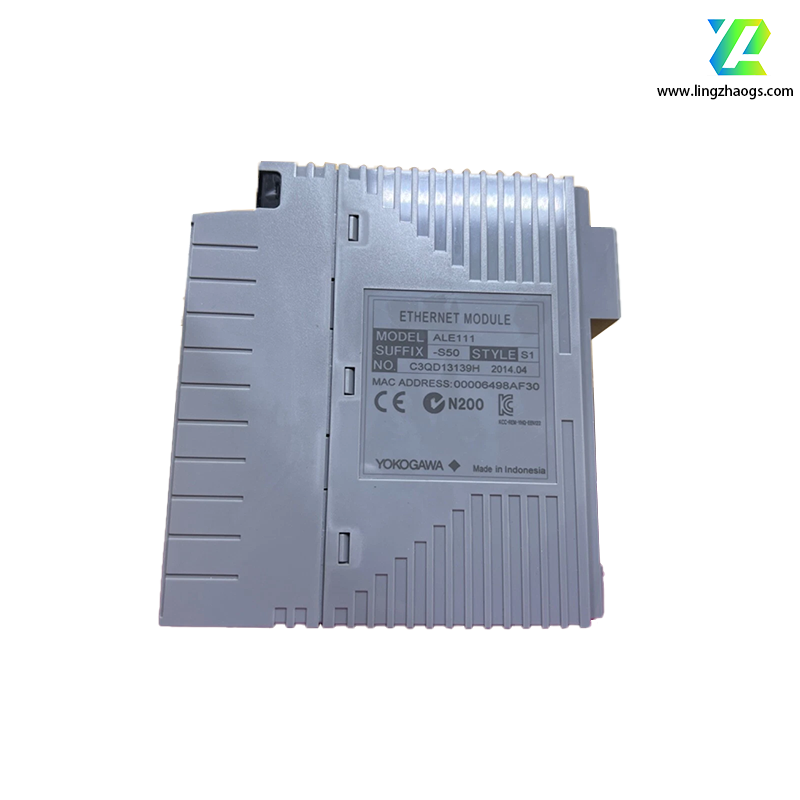

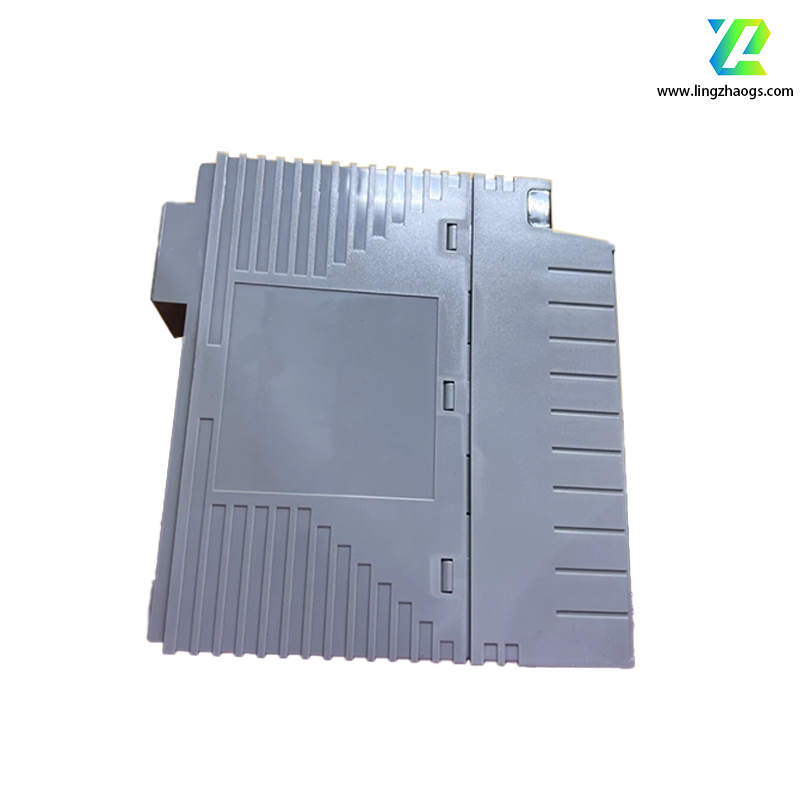

The ALE111-S50 is an Ethernet communication module produced by Yokogawa, which is mainly used for data communication between subsystems within the Yokogawa DCS system. The following is its detailed content:
- Product Type: Ethernet communication module.
- Manufacturer: Yokogawa.
- Physical Layer Interface: IEEE 802.3 10Base-T.
- Connection Method: Point-to-point.

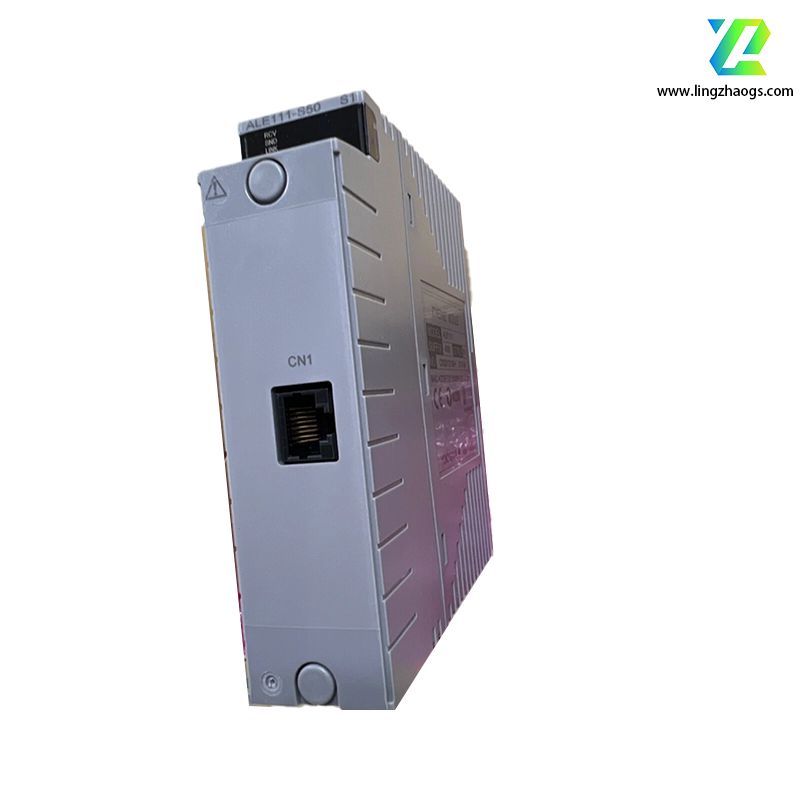

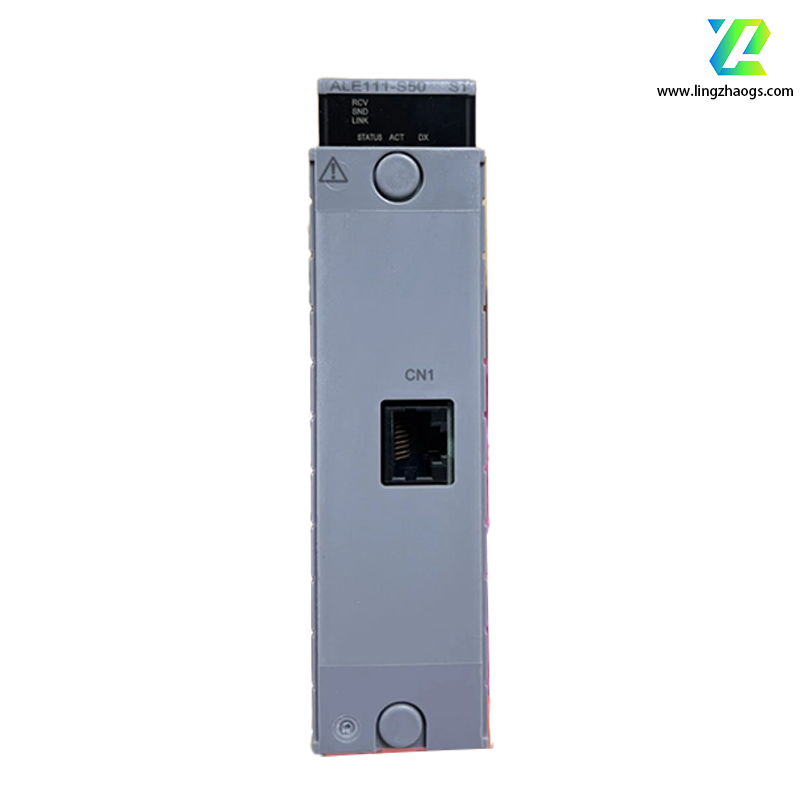

- Connector: RJ-45.
- Transmission Method: Half-duplex.
- Transmission Speed: 10 Mbps.
- Transmission Route: 100 ohm twisted-pair cable (not shielded).
- Transmission Distance: 1 segment, 100 m.
- Installation Method: Can be mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40.
- Number of Ports: 1 port.
- Media Access Control: CSMA/CD.
- Communication Functions: Supports serial communication protocols RS-422 and RS-485, and can communicate with FA-M3, Modbus, Melsec, YF GW, Darwin/DAQ station, and PLC-5/SLC 500.
- Power Supply: Powered by the USB port of the PC, no additional power adapter is required, with an input voltage of 5V DC ± 5%.
- Maximum Current Consumption: 1A.
- Weight: Approximately 0.3 kg.
- Explosion Protection: None.
