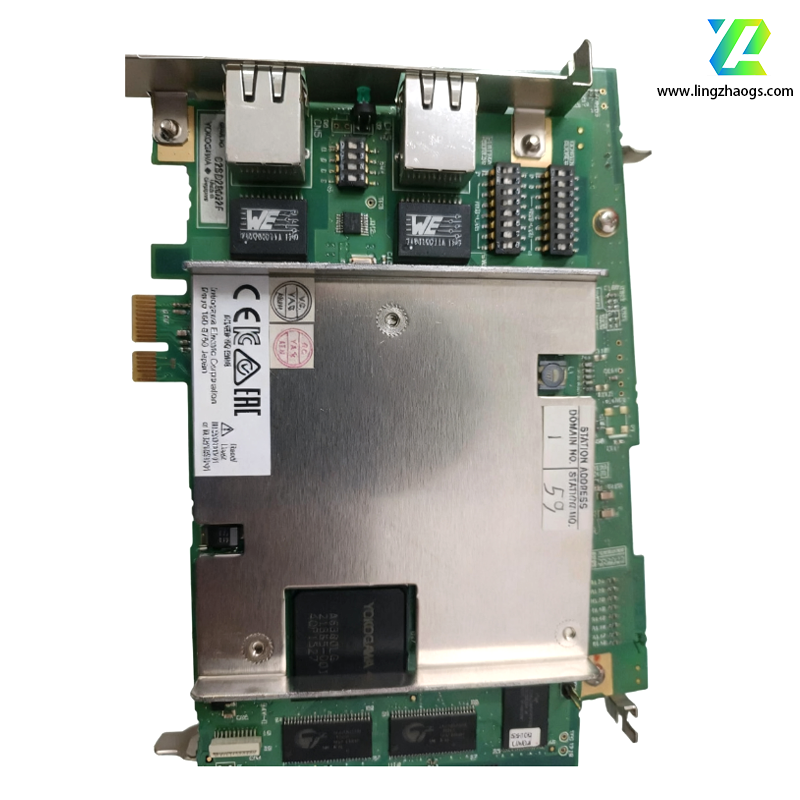

The YOKOGAWA VI702 is a Vnet/IP interface card specifically designed for industrial automation control systems. Here is the detailed information:
- Product Type: Vnet/IP interface card.
- Power Supply: The power supply voltage is 3.3V ± 9%, and the maximum current consumption is 2.5A.
- PCI Express Compatibility: It complies with the PCI Express CEM specification 1.0a x1, with 2.5 GT/s signaling. It can be installed in any PCI Express slot from x1 to x16, but is not compatible with PCI slots.
- Communication Speed: It supports 1 Gbps full-duplex communication.

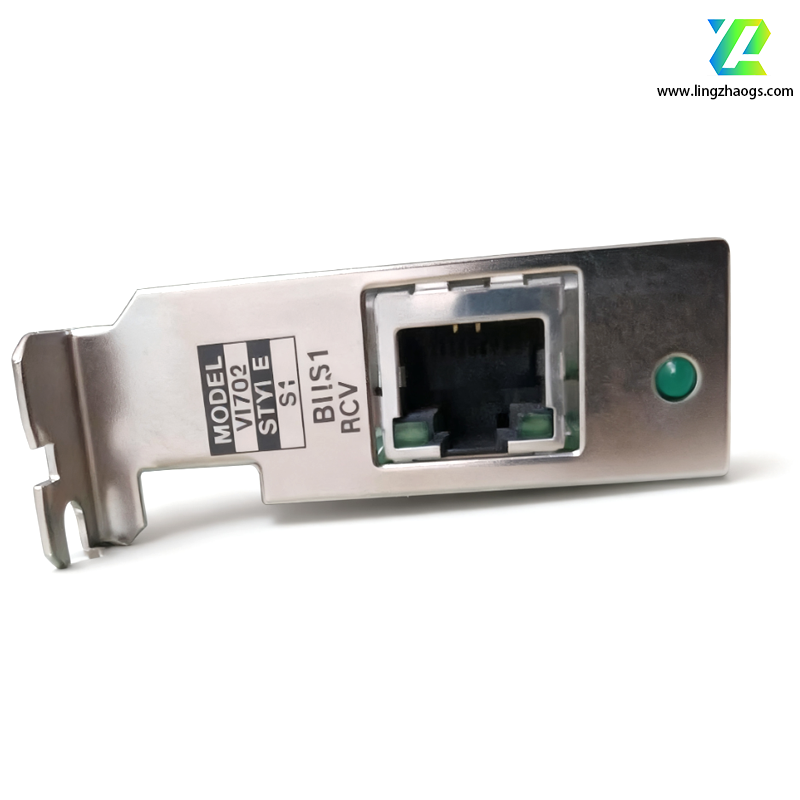

- Connection Specifications: It uses a CAT5e (Enhanced Category 5 cable), UTP, and is compliant with 1000BASE-T. The connector is an RJ45 connector, and the maximum distance between the VI702 and the layer 2 switch is 100 meters.
- Physical Dimensions: The external dimensions are approximately 111.15 x 167.65 mm (height x width).
- Weight: It is about 0.18 kg.
- Indicator Lamps: There are indicator lamps to show the working status of the card. The RDY lamp lights when the card is functioning normally, the RCV lamp lights when signals are detected on the control bus, and the SND lamp lights when signals are sent to the control bus.
