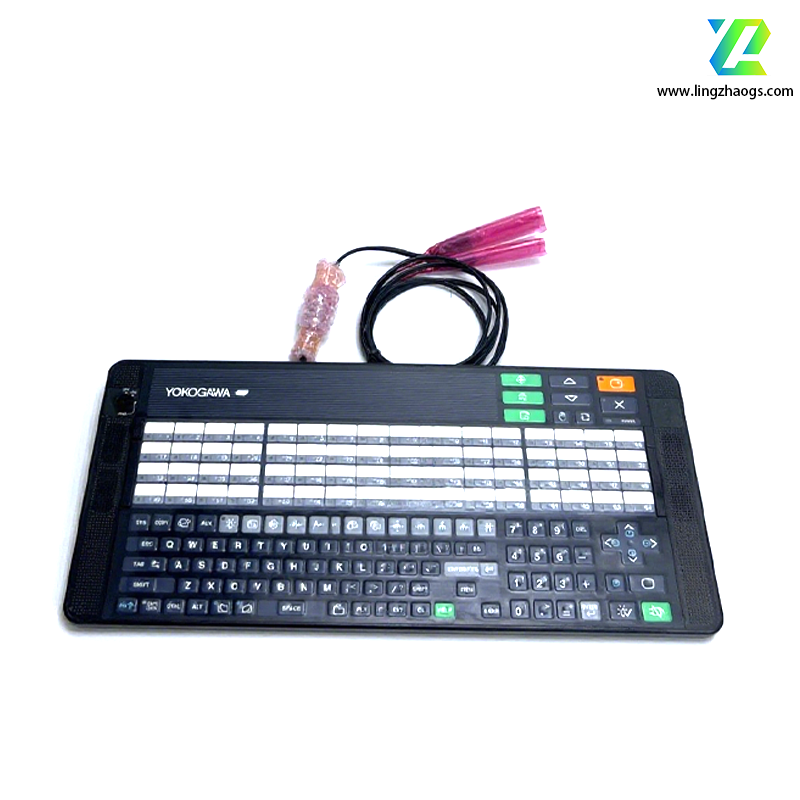

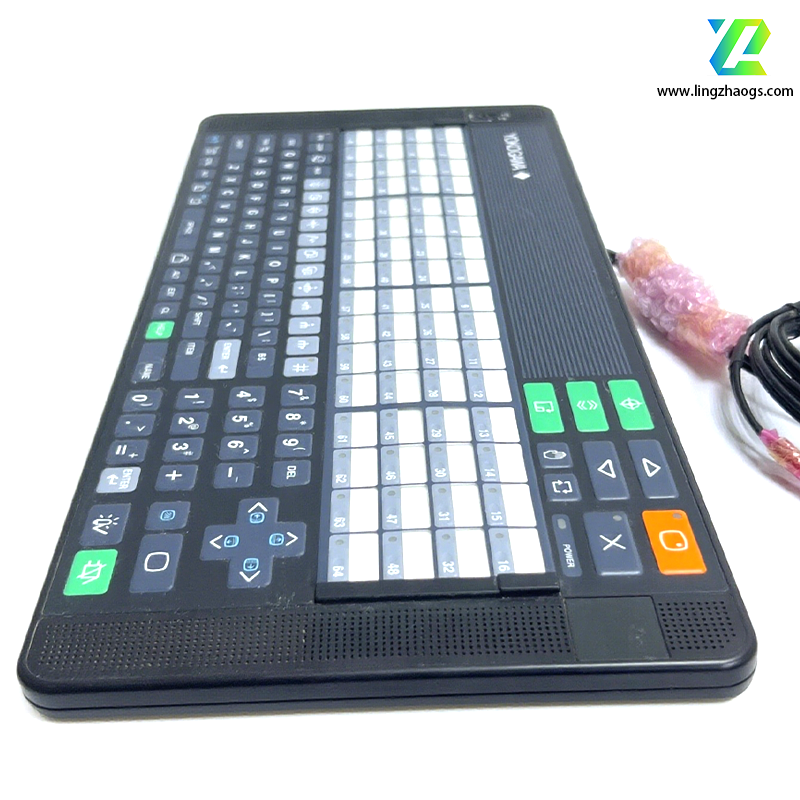

The YOKOGAWA AIP830-101 is an operation keyboard designed for single-loop operation. Here is its detailed information:
- Brand: YOKOGAWA
- Model Number: AIP830-101
- Product Type: Single-loop operation keyboard
- Place of Origin: Japan
- Packing: Original packing with factory seal
- Type: Flat keyboard with a USB speaker for sound function.
- PC Interface: Interface connector is USB A type x 2. The operation keyboard function complies with USB 2.0 (full-speed, bus-powered), and the sound function complies with USB 1.1 (full-speed, bus-powered).
- Input Voltage: 5V ± 5%, supplied from the USB port of the PC.
- Maximum Consumption Current: 1A.
- Weight: Approximately 2.0 kg without the VESA bracket and approximately 2.5 kg with the VESA bracket.
- Chassis Color: Black, equivalent to Munsell no. N 1.5.
- Installation Category: Belongs to IEC 61010-1 installation category class I.
- Operating Environment: The ambient temperature is 5 to 40 °C for normal operation and -20 to 60 °C in storage and transportation. The ambient humidity is 20 to 80% RH (non-condensing).
- Keys and Display: It has a membrane keypad with tactile feedback and a backlit LCD display.
- Functions: It supports functions such as loop tuning, alarm management, and data logging.
- Suffix Codes: -1 indicates with a mode selection switch; 0 indicates operation confirmation key type A; 1 is always 1.
- Option Codes: /VESA means with a VESA bracket; /EIM means with an English instruction manual; /JIM means with a Japanese instruction manual.
