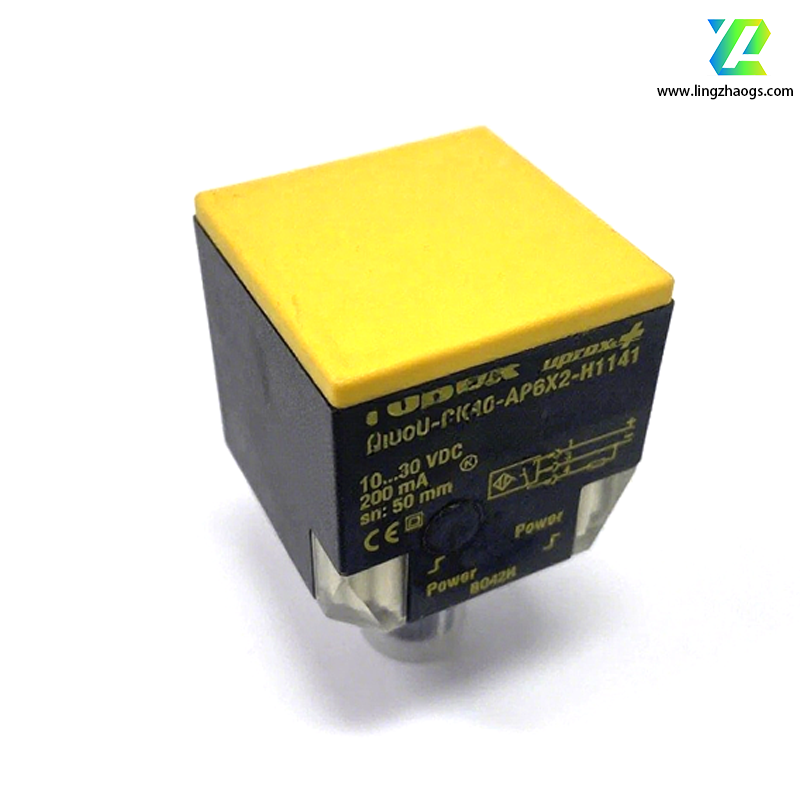

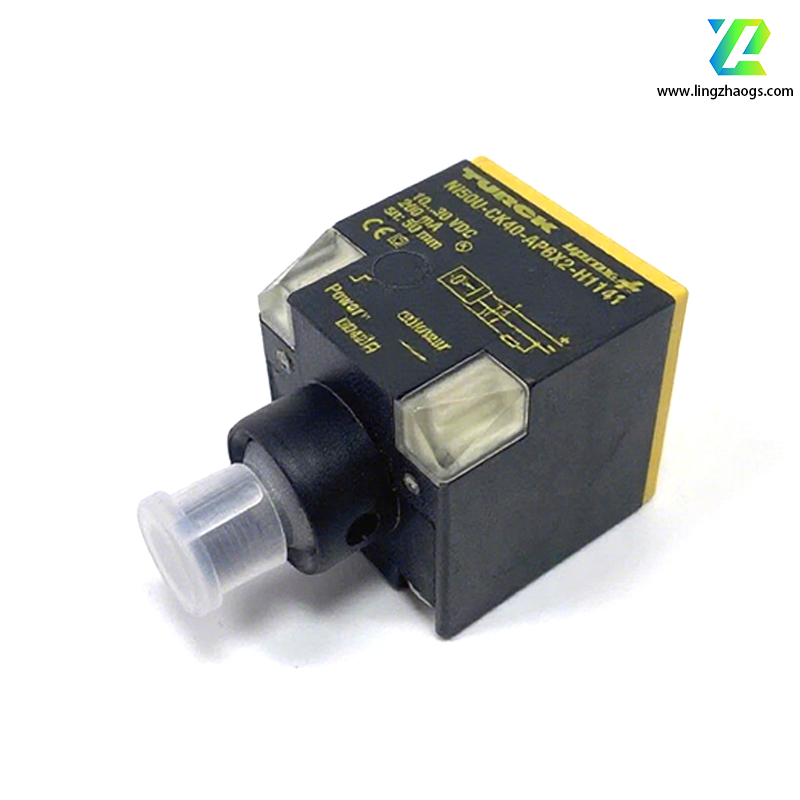

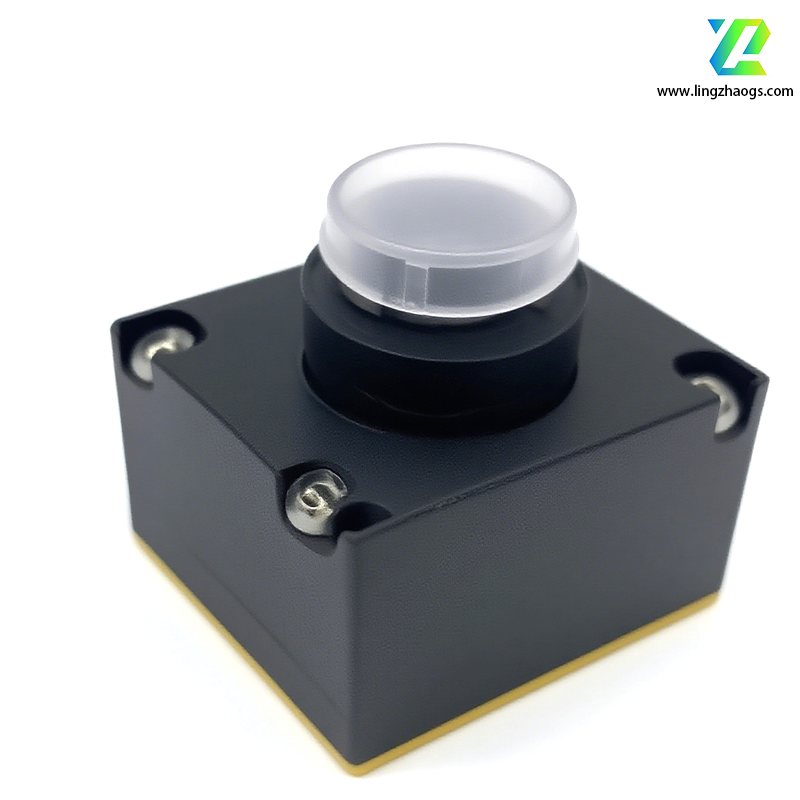

The NI50U-CK40-AP6X2-H1141 is an inductive proximity sensor from Turck, featuring a long switching distance and strong resistance to magnetic field interference. The following is its specific description:
- Rated switching distance: 50mm
- Safe operating distance: ≤ (0.81×Sn) mm
- Repeat accuracy: ≤ 2% full scale
- 3-wire system, PNP output, normally open contact
- Operating voltage: 10-30V DC
- Ripple: ≤ 10% Uss
- DC rated operating current: ≤ 200mA
- No-load current: 15mA
- Leakage current: ≤ 0.1mA
- Short-circuit protection: Cyclic type
- Voltage drop at Ie: ≤ 1.8V
- With open-circuit/reverse polarity protection function
- Housing material: Plastic PBT-GF20-V0; Sensing surface material: Plastic PA12-GF30
- Overall dimensions: 65x40x40mm
- Mounting method: Supports non-flush mounting and flush mounting; the sensing surface can be adjusted to 5 directions
- Connection method: Electrical connection via M12×1 connector
- Operating temperature range: -30℃ to +85℃
- Vibration resistance: 55Hz (1mm)
- Shock resistance: 30g (11ms)
- Protection rating: IP68
- Attenuation coefficient for all-metal detection is constantly 1
- Has resistance to magnetic field interference
- Pre-attenuation prevention via self-compensation
- Equipped with high-brightness LED indicator, which can display operating voltage and switching status at any mounting position.
