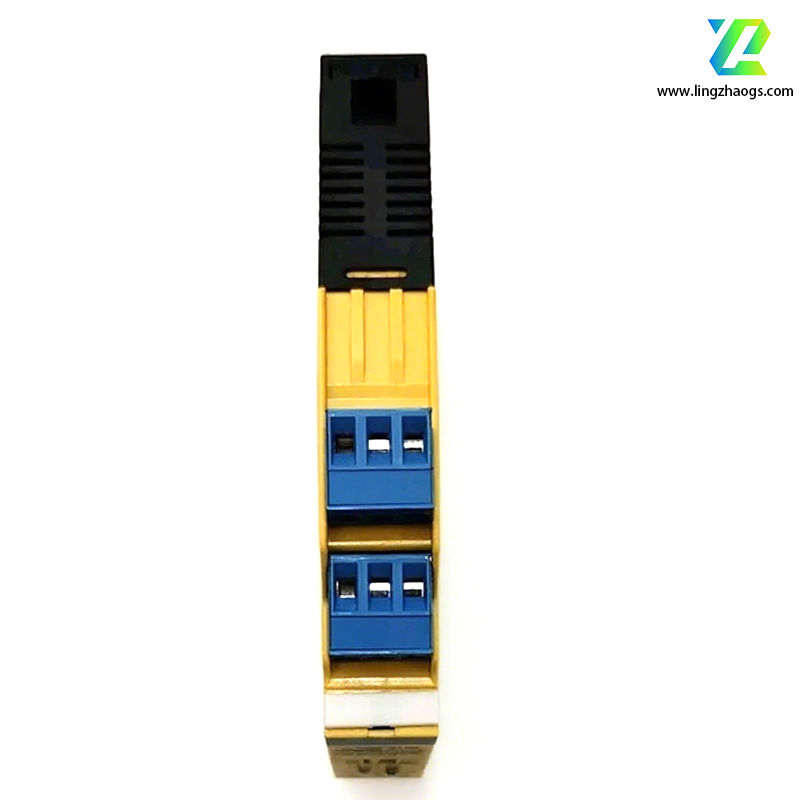

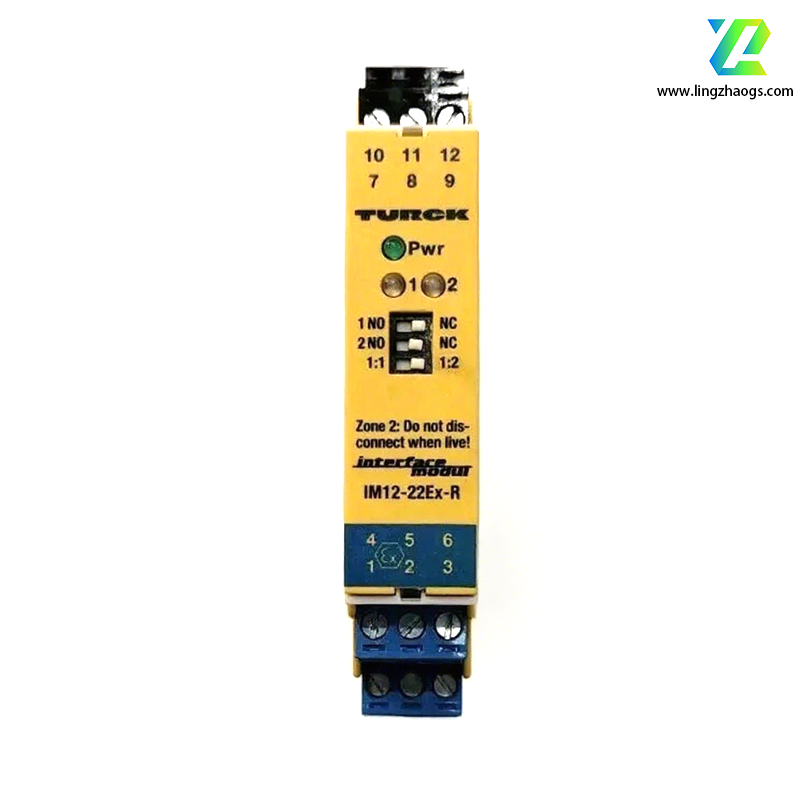

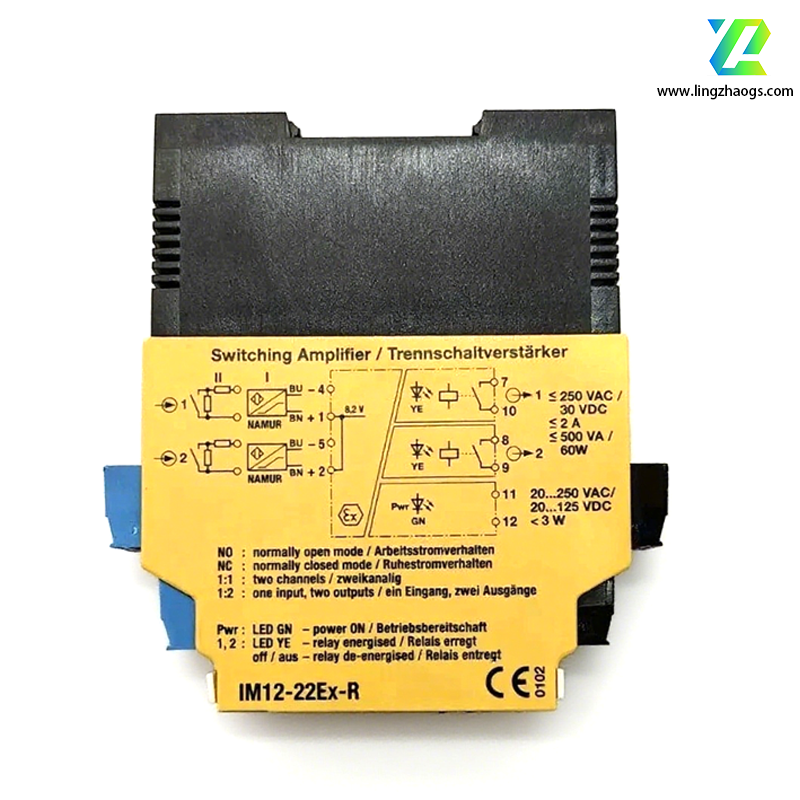

The IM12-22EX-R is an isolated switch amplifier module of the Turck brand. The following is its detailed description:
- Number of Channels: 2 channels
- Signal Type: Digital input
- Output Type: 2 relay outputs (normally open), and the output mode can be adjusted between Normally Open (NO)/Normally Closed (NC) modes
- Signal Multiplexing: Supports signal multiplexing
- Isolation Characteristics: Equipped with complete current isolation
- Power Supply Voltage:
- DC 20-250V (rated values: 24V, 110V, 120V, 220V)
- AC 20-250V (rated values: 24V, 120V, 220V, 240V)
- Mounting Method: Supports DIN rail mounting, with a width of 18mm
- Protection Rating: IP20
- Operating Temperature Range: -25℃ to +70℃
- Housing Material: Polycarbonate/ABS

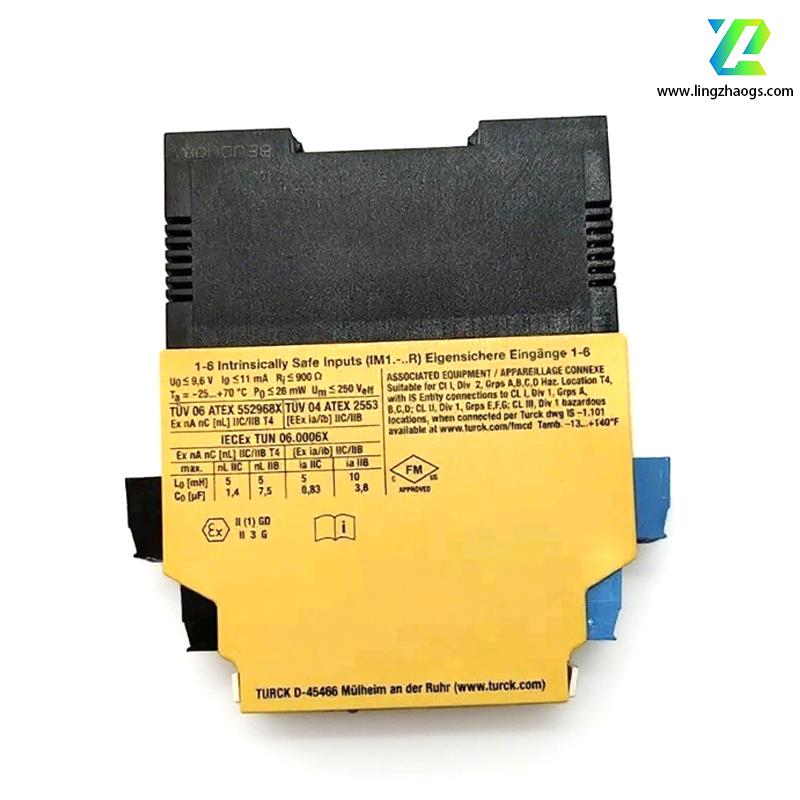

- Explosion-Proof Certification: Certified by ATEX and IECEx, can be installed in Zone 2 hazardous environments, meeting the application area requirements of II (1) G; II (1) D, and having explosion-proof protection categories of (Ex ia ga) IIC; (Ex ia da) IIIC.
- Other Certifications: Also certified by UL, CFMUS, CSA, TR CU, NEPSI, KOSHA, TI IS, CCOE, INMETRO and other certification bodies.
