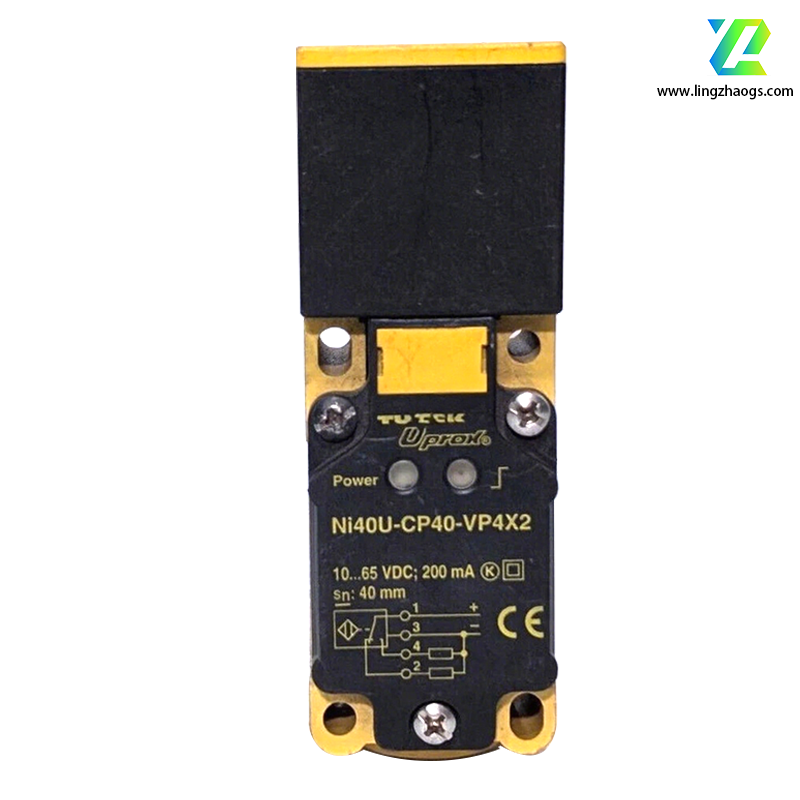

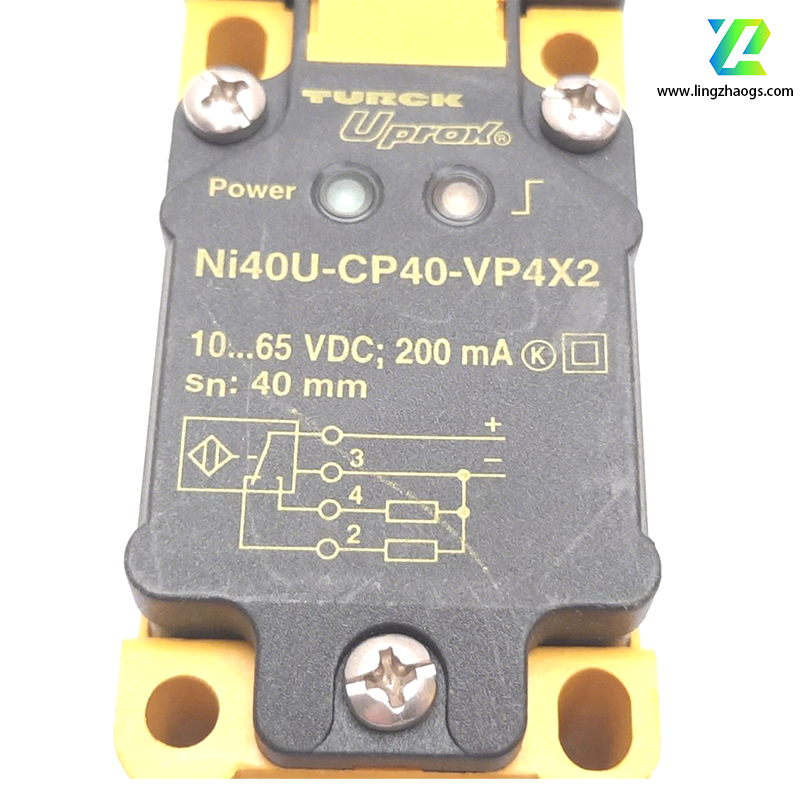

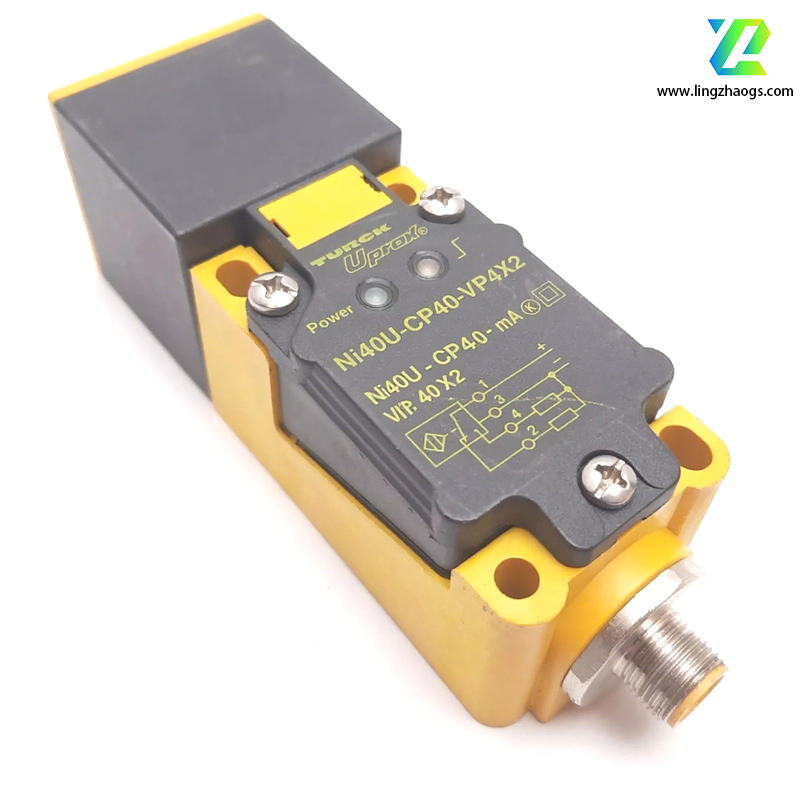

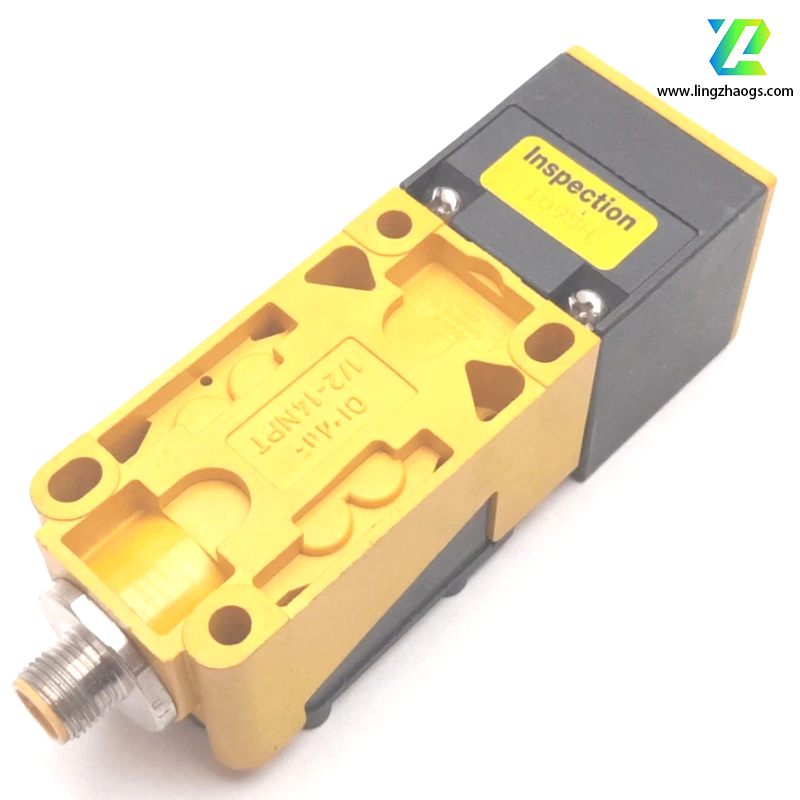

The NI40U-CP40-VP4X2 is an inductive proximity sensor of the Turck brand. The following is its detailed description:
Adopts inductive detection technology, which can detect the proximity of target objects without contact, and is suitable for scenarios such as object detection and position monitoring in industrial automation production lines.
- Detection distance: 40mm, capable of detecting metal objects within 40mm from the sensor surface.
Has two output functions: Normally Open (NO) and Normally Closed (NC), which can provide signal outputs of two states at the same time to meet the needs of different control circuits.
- PNP type output, belonging to the transistor output type.
- Output current capacity: 200mA, which can directly drive loads such as small relays and PLC input modules.
- Operating power supply voltage range: 10-65V DC, with a wide voltage adaptation range, compatible with various industrial power supply systems.
- Equipped with reverse polarity protection function to prevent sensor damage caused by reverse power connection.
Uses screw terminals for electrical connection, which is convenient for users to perform electrical connection and ensures connection reliability.
- Protection rating: IP67, with good dustproof and waterproof performance, and can be used in relatively harsh industrial environments.
- Operating temperature range: -25℃ to +85℃, able to adapt to working requirements under different ambient temperature conditions.
- Housing material: Plastic, specifically PBT-GF30-V0, which has good mechanical strength and chemical corrosion resistance.
- This sensor is non-shielded, so there is no need to consider shielding issues during installation, and it can be flexibly installed in various positions.
- Its maximum switching frequency is 250Hz, which can meet the detection speed requirements of general industrial automation systems.
