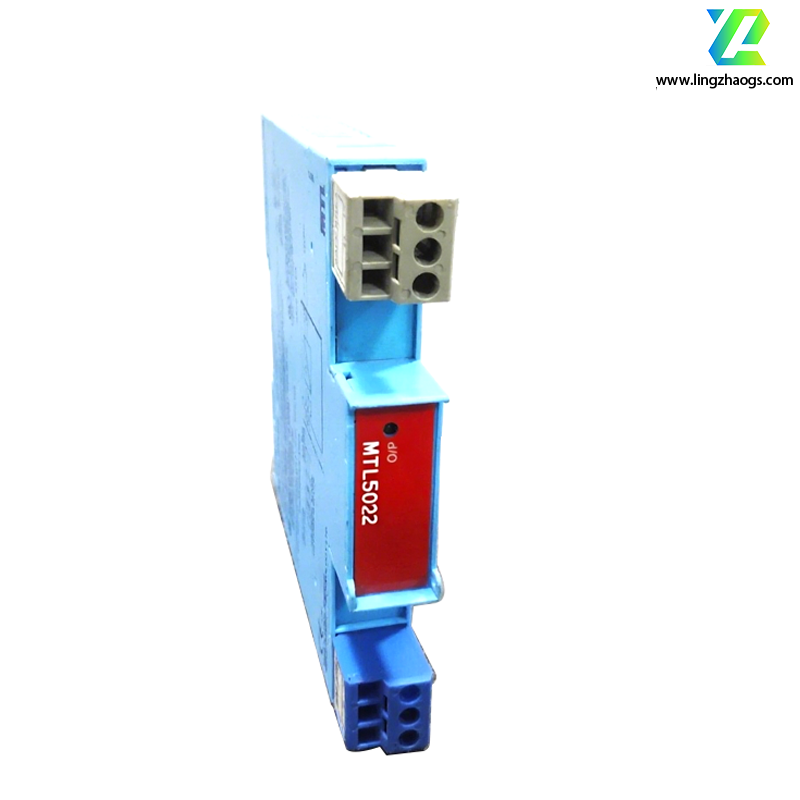

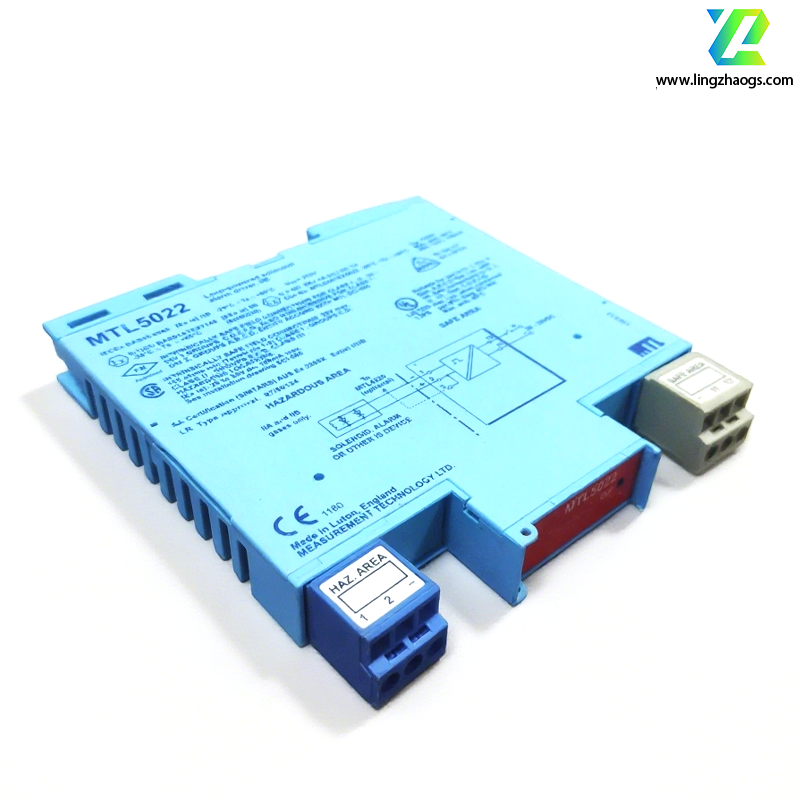

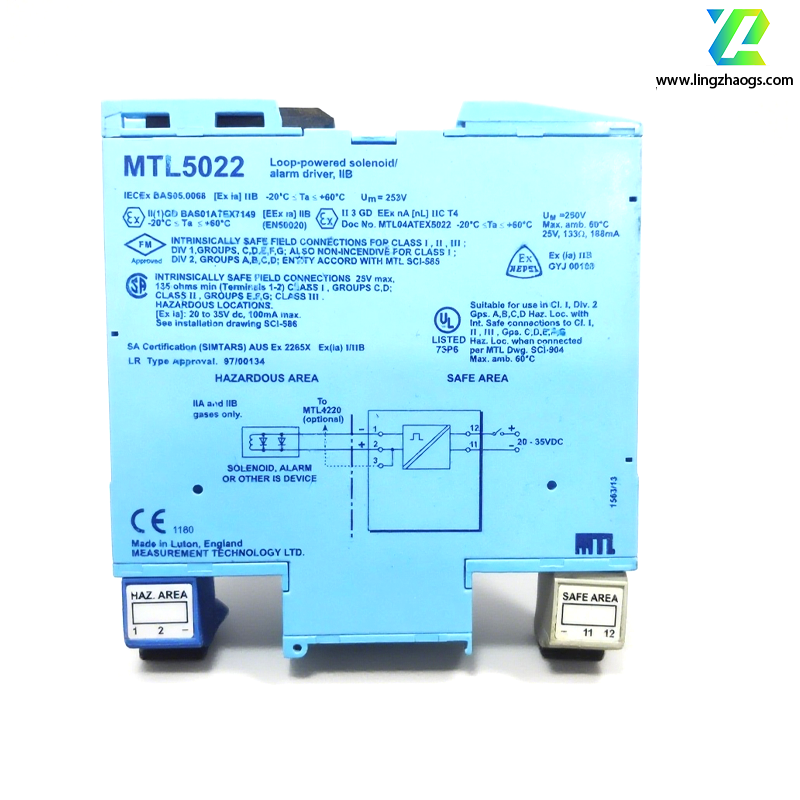

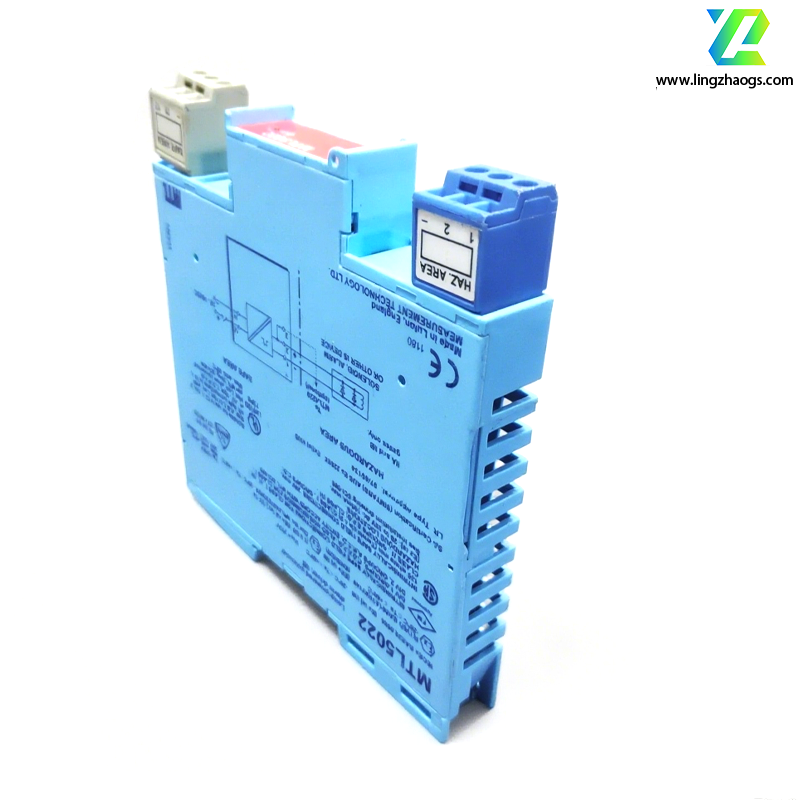

Product Name： MTL MTL5022 Single-Channel Discrete Signal Output Safety Barrier
Product Categories： MTL
Contact： 13394046250
Company Name： Xiamen Lingzhao
Company Address： Phase III of Software Park, Jimei District, Xiamen City, Fujian Province
Add Time： 2025-07-31
Details
Basic Functions: Used to transmit discrete signals from safe areas to hazardous areas, realizing signal isolation and transmission, and ensuring electrical safety in hazardous areas.
Technical Parameters: Input voltage is 20-35V DC. Output is 12.9-24V DC, current 60mA, load resistance 133Ω. The maximum voltage of the intrinsically safe circuit is 25V; the allowable voltage for non-intrinsically safe circuits is 250V AC (50/60Hz) or 250V DC. The ambient temperature adaptation range can reach 60°C.
Explosion-Proof Characteristics: The explosion-proof structure is an intrinsically safe explosion-proof structure (ia), suitable for installation in non-hazardous locations, and can be used in Class IIB explosive gas environments.
Appearance and Dimensions: Weight is approximately 0.20kg. Specific dimensions are not publicly disclosed; however, as a DIN rail-mounted device, it usually complies with standard rail-mounted dimension specifications, facilitating installation and arrangement in control cabinets.
Application Fields: Widely used in industrial fields with explosive hazardous gases such as petroleum, chemical engineering, and metallurgy. It is used for isolation and transmission of discrete signals, ensuring the safety and stability of discrete signal transmission in the system.
