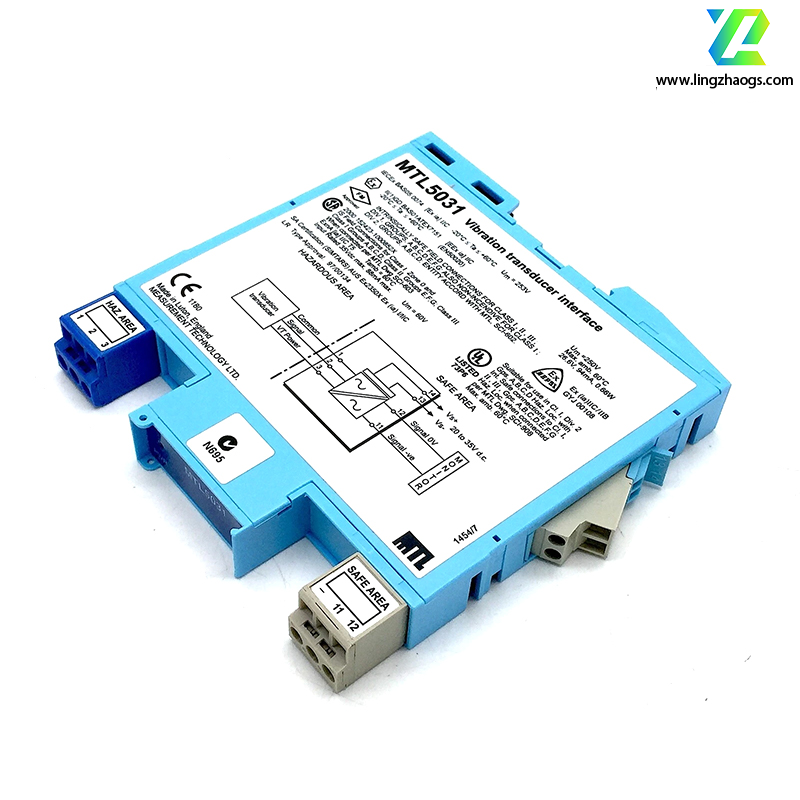

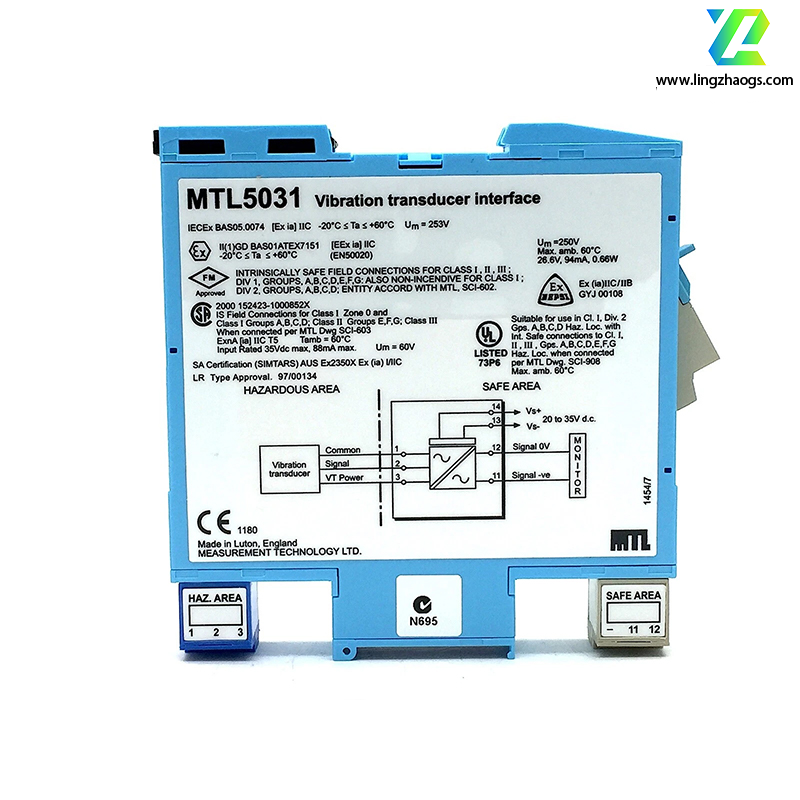

The MTL5031 is an isolating safety barrier for vibration sensors, mainly used for the transmission and processing of vibration and accelerometer signals. Below is its detailed introduction:
It features an intrinsically safe explosion-proof structure (i a), designed for installation in non-hazardous locations, and can be used in IIC group explosive gas environments.
- Intrinsically Safe Loop Parameters:
- Maximum voltage: 26.6V
- Maximum current: 94mA
- Maximum power: 0.66W
- Allowable inductance: 4.2mH
- Allowable capacitance: 0.13μF
- Allowable Voltage for Non-Intrinsically Safe Loop: AC 250V 50/60Hz
It adopts a single-channel design, with vibration signals as input.

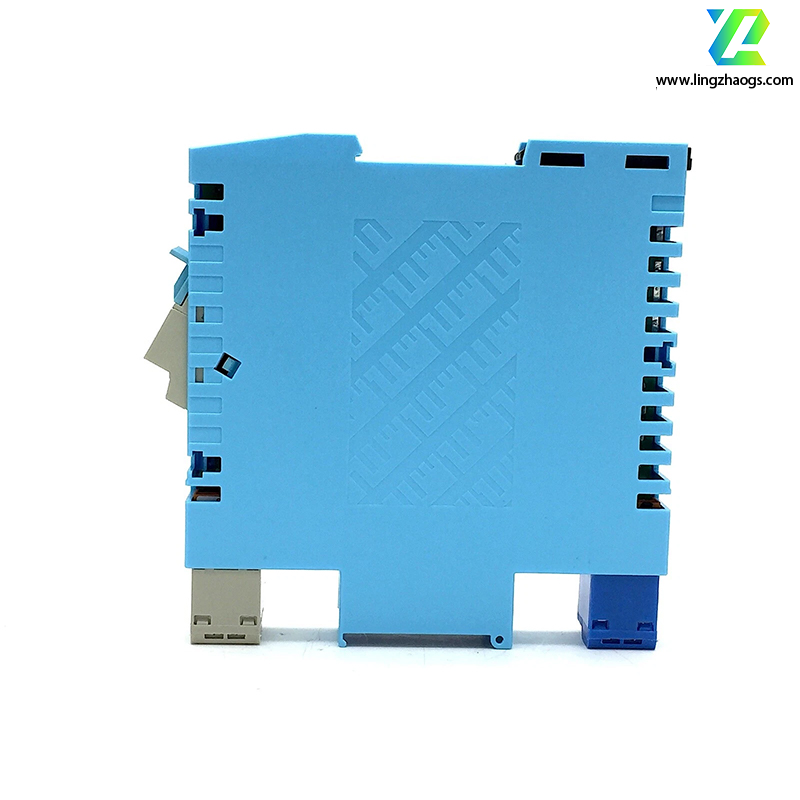

It uses a clamp-type mounting method and can be installed on a DIN rail. Simple plug-in terminal blocks are used for wiring in the safe area and hazardous area.
